Shimano CUES SL-U6000 Shifter w/ Clamp 10-/11-speed

Shimano CUES SL-U6000 shifter for Linkglide 10- and 11-speed - 2-Way Release and clamp attachment

The Shimano SL-U6000 from the CUES series is a 10-speed or 11-speed shifter for Linkglide drivetrains for sporty city, touring and MTB use. It is attached on the right-hand side via a clamp to handlebars with a clamp diameter of 22.2 mm. As a Rapidfire Plus model, the SL-U6000 scores with fast gear changes and can downshift up to two gears at once. In addition, it is equipped with 2-Way Release Technology, i.e. you can operate the release lever both by pressing it with your thumb and by pulling it with your index finger. The levers are easily accessible, ergonomically shaped and can be operated with little effort. This ensures comfort and more enjoyable riding. The shifter is made of aluminium, steel and various composite materials. A steel shifter cable with a friction-reducing coating is included.

Specifications:

Series:

CUES U6000

Application:

City, Touring, All Mountain

Gearing:

10-speed, 11-speed

Mount:

clamp (closed)

Technical Information:

Type:

Rapidfire Plus

Body Material:

aluminium

Lever Material:

Steel / GFRP (main lever), steel / resin (release lever)

Clamp Diameter:

22.2 mm

Cable:

steel (Optislick)

Housing:

OT-SP41

Adjustment Options:

• cable adjust

Compatibility:

Rear Derailleur:

• 10-speed: RD-U6020-10, RD-M5130-GS, RD-U6000
• 11-speed: RD-U8020, RD-U6020-11, RD-U6000, RD-U8000

Cassette:

• 10-speed: CS-LG600-10, CS-LG400-10, CS-LG300-10
• 11-speed: CS-LG700-11, CS-LG600-11, CS-LG400-11

Chain:

CN-HG901-11, CN-HG701-11, CN-HG601-11, CN-LG500

Handlebar Grip Outer Diameter:

max. 36 mm

Features:

• 10-speed or 11-speed shifter with 2-Way Release Technology for city, touring and mountain bikes with Shimano Linkglide drivetrains
• optimised lever shape and easy accessibility of the levers
• low operating force for ease of use and comfort
• version without gear indicator
• max. number of gears per shift: 2
• Optislick inner cable with a minimal galvanic coating for more efficient cable routing and corrosion resistance
• painted housing
• stainless steel clamp screw

Technology:

Rapidfire Plus
Rapidfire Plus is a type of Shimano shift lever construction that has been common in the mountain bike sector since 1985. Two levers, the main lever and the release lever, are used instead of a twist shifter. Rapidfire Plus shift levers, as the name suggests, ensure fast shifting. In addition, depending on the model, it is possible to downshift up to three gears with one shift stroke.

2-Way Release
With 2-Way Release, the shifter can be pressed and pulled to shift to the smaller sprocket or chainring. This allows you to adjust the shifting process to your personal preferences. Most Rapidfire Plus shifters are equipped with 2-Way Release.

Models:

10-speed:

Mount:

right

Model Number:

SL-U6000-10R

Manufacturer Number:

ESLU600010RA1P

11-speed:

Mount:

right

Model Number:

SL-U6000-11R

Manufacturer Number:

ESLU600011RA1P

Contents:

• 1 x Shimano CUES SL-U6000 shifter (right), 10-speed or 11-speed

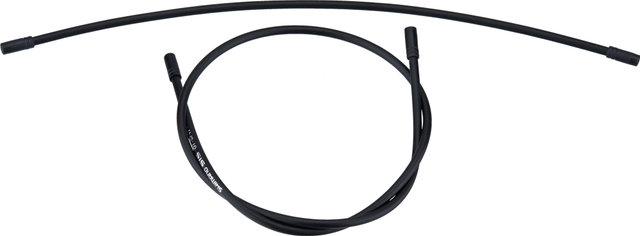

• 1 x Shimano cable, 2050 mm
• 1 x Shimano 600 mm cable housing
• 1 x Shimano 300 mm cable housing
