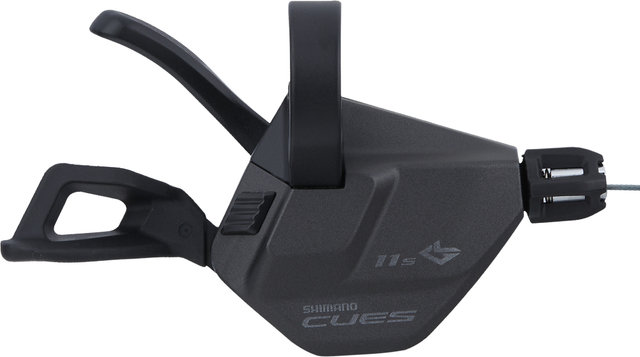

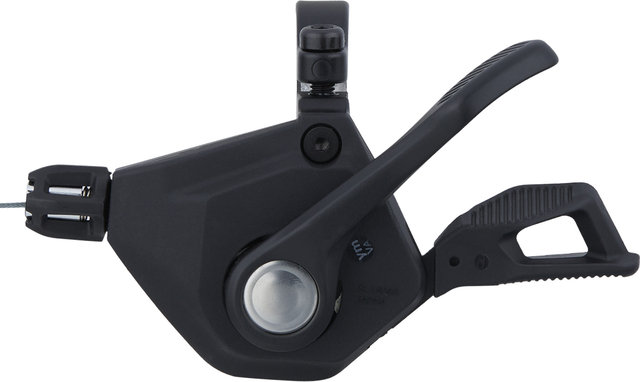

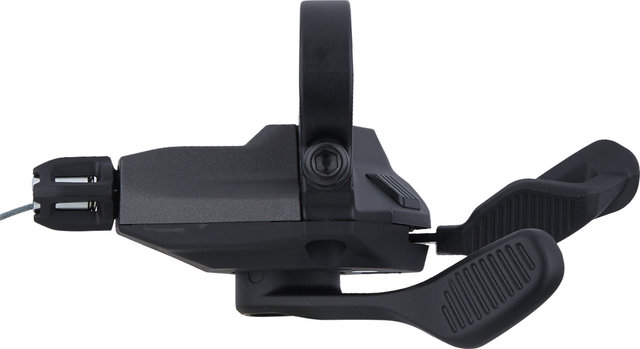

Shimano CUES SL-U8000 Shifter w/ Clamp 11-speed

Shimano CUES SL-U8000 shifter for Linkglide 11-speed - Clamp attachment and two release functions

The Shimano SL-U8000 from the CUES series is a 11-speed shifter for high-quality city and touring bikes with Linkglide drivetrain. It is attached on the right-hand side via a clamp to handlebars with a clamp diameter of 22.2 mm. As a Rapidfire Plus model, SL-U8000 scores with fast gear changes and can downshift up to two gears at once. In addition, it is equipped with 2-Way Release Technology, i.e. you can operate the release lever both by pressing it with your thumb and by pulling it with your index finger. Instant Release Technology for a delay-free release of the shift cable is also on board. The levers are easily accessible, ergonomically shaped and can be operated with little effort, which is also helped by the double bearing. The shifter is mainly made of lightweight aluminium; only the release lever is made of steel and plastic. A stainless steel shifter cable with a friction-reducing coating is included.

Specifications:

Series:

CUES U8000

Application:

City, City & Touring

Gearing:

11-speed

Mount:

clamp (closed)

Technical Information:

Type:

Rapidfire Plus

Body Material:

aluminium

Lever Material:

Aluminium (main lever), steel / GFRP (release lever)

Clamp Diameter:

22.2 mm

Cable:

stainless steel (Optislick)

Housing:

OT-SP41

Adjustment Options:

• cable adjust

Compatibility:

Rear Derailleur:

RD-U8020, RD-U6020-11, RD-U6000, RD-U8000

Cassette:

CS-LG700-11, CS-LG600-11, CS-LG400-11

Chain:

CN-HG901-11, CN-HG701-11, CN-HG601-11, CN-LG500

Handlebar Grip Outer Diameter:

max. 36 mm

Features:

• 11-speed shifter with 2-Way Release and Instant Release Technology for city and touring bikes with Shimano Linkglide drivetrains
• version for clamp fastening and without gear indicator
• optimised lever shape and easy accessibility of the levers
• low operating force for ease of use and comfort
• max. number of gears per shift: 2
• shapely and weight-optimised
• double bearings
• Optislick inner cable with a minimal galvanic coating for more efficient cable routing and corrosion resistance
• painted body and main lever
• stainless steel clamp screw

Technology:

Rapidfire Plus
Rapidfire Plus is a type of Shimano shift lever construction that has been common in the mountain bike sector since 1985. Two levers, the main lever and the release lever, are used instead of a twist shifter. Rapidfire Plus shift levers, as the name suggests, ensure fast shifting. In addition, depending on the model, it is possible to downshift up to three gears with one shift stroke.

2-Way Release
With 2-Way Release, the shifter can be pressed and pulled to shift to the smaller sprocket or chainring. This allows you to adjust the shifting process to your personal preferences. Most Rapidfire Plus shifters are equipped with 2-Way Release.

Instant Release
With Instant Release, the spring and thus the cable are released immediately when the lever is actuated, which ensures an enormously fast shifting process. The delay caused by a two-step shifting process with click and release is eliminated, so that the gear change is considerably accelerated and improved.

Models:

11-speed:

Mount:

right

Model Number:

SL-U8000-11R

Manufacturer Number:

ISLU800011RA1P

Contents:

• 1 x Shimano CUES SL-U8000 shifter (right)

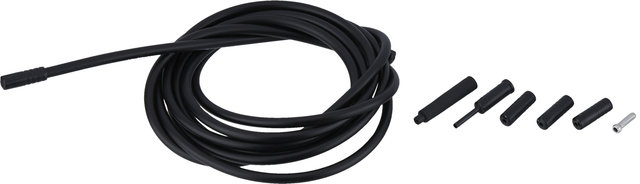

• 1 x Shimano cable, 2050 mm
• 1 x Shimano 1880 mm cable housing
• 1 x end cap set
