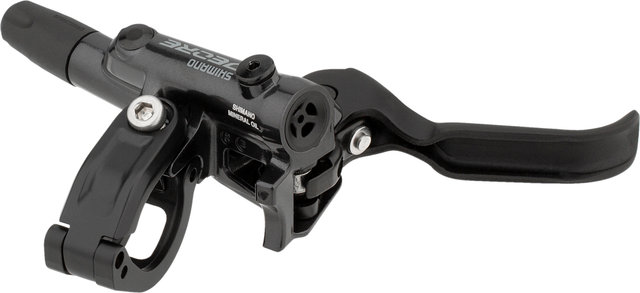

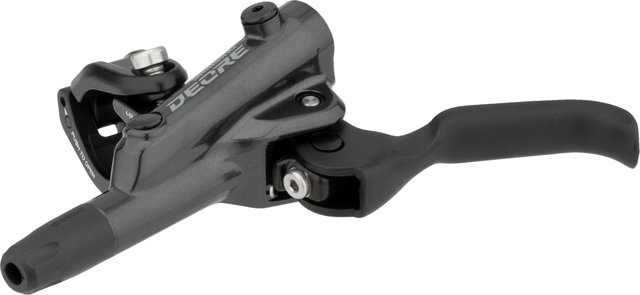

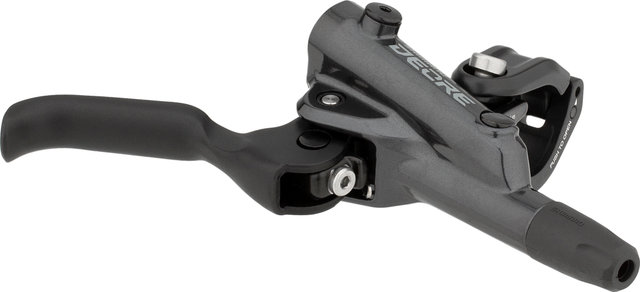

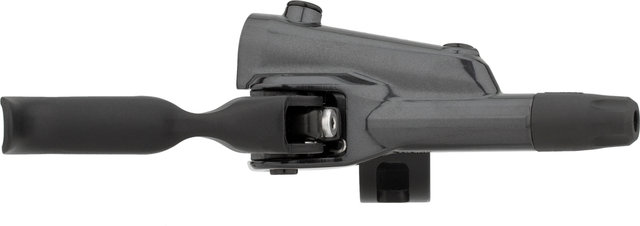

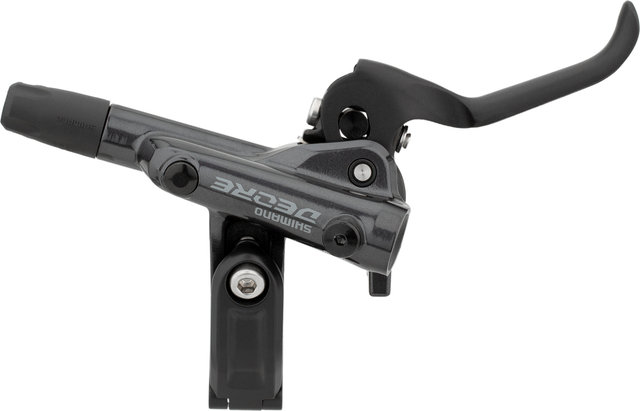

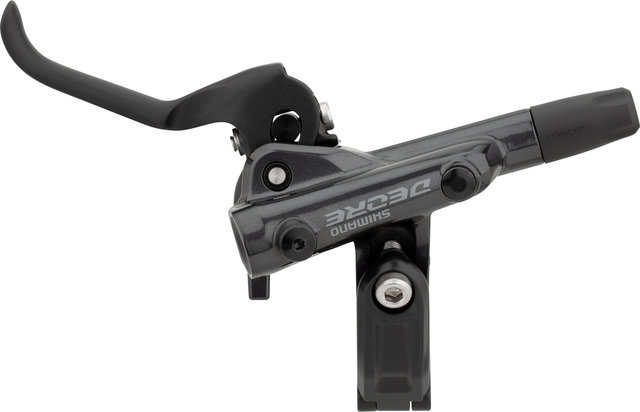

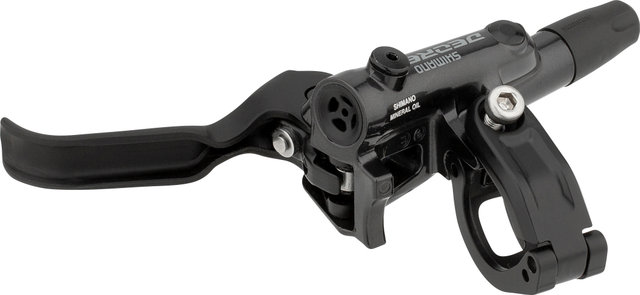

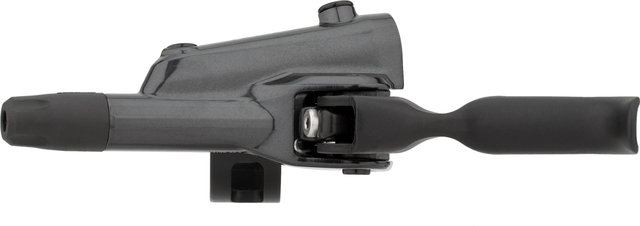

Shimano Deore BL-M6100 Brake Lever

The Deore BL-M6100 brake lever by Shimano - with I-Spec EV and Servo Wave

The Shimano Deore BL-M6100 brake lever for All Mountain and Enduro use has a 2-finger brake lever made of aluminium and reach adjust using an Allen key. It is mounted on the handlebars by means of a split clamp, whereby the I-Spec EV interface enables space-saving combination with a matching shifter. The built-in Servo Wave technology ensures an optimal conversion of lever travel into braking force. And like the brake levers from the Shimano top groupsets, the Deore BL-M6100 has been equipped with an additional support point on the handlebars, resulting in more control and stability.

Guidelines for Replacing E-bike Components:

Before you replace components on your e-bike, please read through the guidelines for component replacement for CE-marked e-bikes/pedelecs with pedal assistance.

Specifications:

Series:

Deore M6100

Application:

All Mountain, Cross Country, Enduro

Type:

hydraulic

Actuation:

mineral oil

Hose:

SM-BH90-SS (not included)

Technical Information:

Lever Length:

2-finger

Adjustment Options:

reach adjust (with tools)

Mount:

clamp (split), I-Spec EV

Design:

right (side-specific), left (side-specific)

Brake Lever Material:

Aluminium

Brake Lever Housing Material:

Aluminium

Hose Connection:

straight

Features:

• intuitive and powerful braking
• with additional support on the handlebars for more stiffness, better controllability
• faster response due to reduced empty travel
• I-Spec-EV compatible: 10-degree rotation angle for compatible shift lever
• recommended brake caliper: BR-M6100, BR-M6120
• funnel venting with M5 funnel (TL-BR003)
• anodised lever, painted body, stainless steel clamp bolt

Technology:

Servo Wave
Shimano Servo Wave technology optimises the travel of your brake levers. During the braking process, the brake pads are guided quickly to the brake rotor with very short lever travel. The greater part of the lever travel is reserved for the actual braking force. In this way, you can apply your braking power in a more targeted manner and use it more effectively.

I-Spec EV
I-Spec EV describes a variant of the connection between brake lever and shift lever on Shimano MTB derailleurs. This type of mounting allows the shifter to be adjusted both horizontally and vertically in relation to the brake lever, and ensures a tidy cockpit by reducing the number of clamps required. Compared to I-Spec and I-Spec II, I-Spec EV offers a much wider adjustment range. 14 mm adjustment range the longitudinal direction and up to 60° rotation allow an optimal ergonomic adjustment to your riding style, your sitting position and your anatomy.

Manufacturer Numbers:

Right:

E-BLM6100R

Left:

E-BLM6100L

Contents:

• 1 x Shimano Deore BL-M6100 brake lever, left or right
• 1 x brake cable cover for brake lever

Order Together:

• connection set for brake hose
