Shimano Deore BR-M6100 Disc Brake J-Kit

Shimano Deore BR-M6100 - 2-piston disc brake for XC use

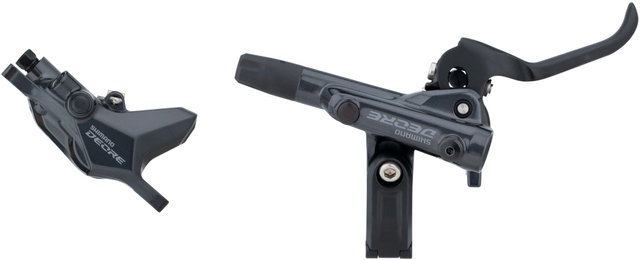

The Shimano disc brake BR-M6100 from the Deore series consists of a 2-piston brake caliper and a 2-finger brake lever with reach adjustment. It is aimed at All Mountain and Cross Country riders who need reliable braking power, which can also be optimally adjusted thanks to Servo-Wave technology. The brake lever is mounted with an open clamp, whereby a space-saving combination with an I-Spec EV shifter is also possible. It has been equipped with an extra support point on the handlebars, which gives more control and stability. Funnel bleeding and One-Way Bleeding technology, which prevents air bubbles from remaining in the caliper, make maintenance easier. As a J-Kit this brake is delivered in a way that you can easily mount it, even if internal brake hose routing is possible.

Specifications:

Series:

Deore M6100

Application:

All Mountain, Cross Country

Type:

hydraulic, 2 pistons

Actuation:

mineral oil

Hose:

SM-BH90-SS

Hose Length (Front/Rear):

1000 mm/1700 mm

Technical Information - Caliper:

Caliper Mount:

post mount

Pads:

resin

Design:

2-piece

Calliper Material:

aluminium

Piston Material:

resin

Hose Connection:

straight

Technical Information - Lever:

Lever Length:

2-finger

Adjustment Options:

reach adjust (with tools)

Mount:

clamp (split), I-Spec EV

Design:

right (side-specific), left (side-specific)

Brake Lever Material:

aluminium

Brake Lever Housing Material:

aluminium

Hose Connection:

straight

Compatibility:

Mounting Position:

• front brake caliper: brake lever left
• rear brake caliper: brake lever right

Brake Rotor:

140 mm, 160 mm, 180 mm, 203 mm, 220 mm (recommended: SM-RT54, SM-RT56, SM-RT64, SM-RT66)

Pads:

organic and sintered; with narrow pad shape; standard and Ice Tech brake pads

Features:

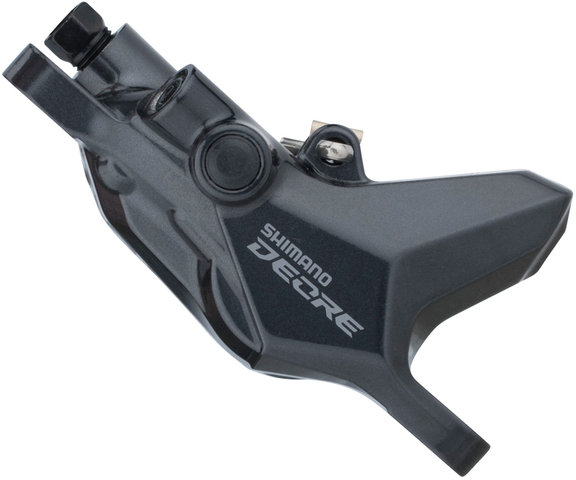

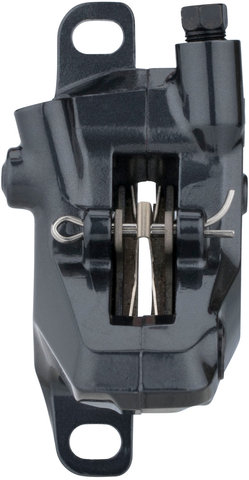

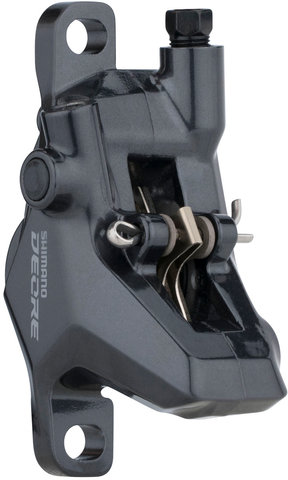

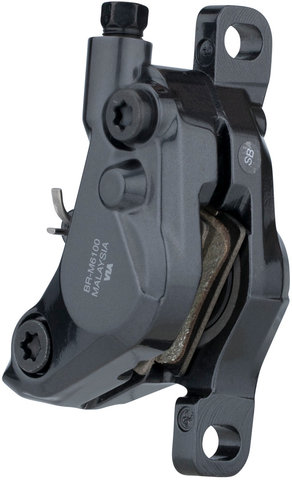

Brake Caliper:

• first-class response for high performance with low weight
• two pistons made of synthetic resin
• painted
• steel bolts (5 mm)

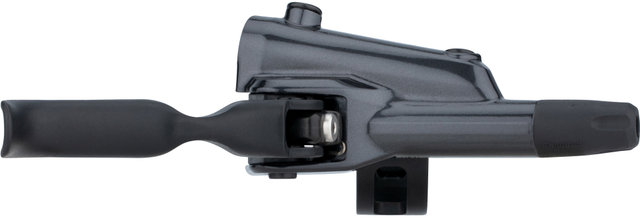

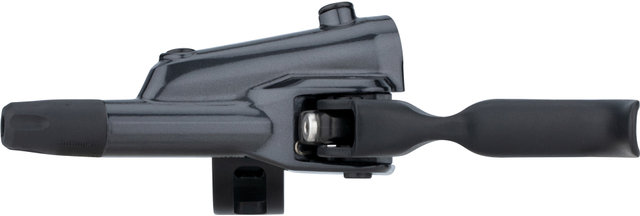

Brake Lever:

• intuitive and powerful braking
• with additional support on the handlebars for more stiffness, better controllability
• faster response due to reduced empty travel
• I-Spec-EV-compatible: 10 degree rotation angle for shifter
• funnel venting with M5 funnel
• anodised lever, painted body, stainless steel clamp bolt

Technology:

Servo Wave
Shimano Servo Wave technology optimises the travel of your brake levers. During the braking process, the brake pads are guided quickly to the brake rotor with very short lever travel. The greater part of the lever travel is reserved for the actual braking force. In this way, you can apply your braking power in a more targeted manner and use it more effectively.

I-Spec EV
I-Spec EV describes a variant of the connection between brake lever and shift lever on Shimano MTB derailleurs. This type of mounting allows the shifter to be adjusted both horizontally and vertically in relation to the brake lever, and ensures a tidy cockpit by reducing the number of clamps required. Compared to I-Spec and I-Spec II, I-Spec EV offers a much wider adjustment range. 14 mm adjustment range the longitudinal direction and up to 60° rotation allow an optimal ergonomic adjustment to your riding style, your sitting position and your anatomy.

One-Way Bleeding
One Way Bleeding is a technique used on Shimano calipers that facilitates brake bleeding. The hose routing has been optimised so that no air bubbles remain in the brake calliper. In combination with the funnel, the brake can be bled cleanly and easily.

J-Kit
J-Kit is a simple line connection system for hydraulic brakes from Shimano, so that you can install your brakes quickly and easily. The brake hose does not come connected to the brake to facilitate routing of the hose in the frame. The brake hose is already filled with oil in the J-Kit and sealed with a thin membrane. There is a small pin in the J-Kit brake lever that pierces this diaphragm during assembly to allow oil to flow.

Manufacturer Numbers:

Front:

EM61001JLFPRA100

Rear:

EM61001JRRXRA170

Contents:

• 1 x Shimano Deore BR-M6100 + BL-M6100 disc brake, front or rear
• 1 x Shimano SM-BH90-SS brake hose, 1000 mm (front) or 1700 mm (rear)
• 1 x pair Shimano brake pads, resin
• 1 x inserts
• 1 x olives
• 2 x calliper bolts
• 1 x snap ring
• ready for installation, filled, bleeding is recommended after installation

Order Together:

• Disc Brake Adapter
• TL-BH61 tool for insert installation
• Bleed Block Y-8J712100
