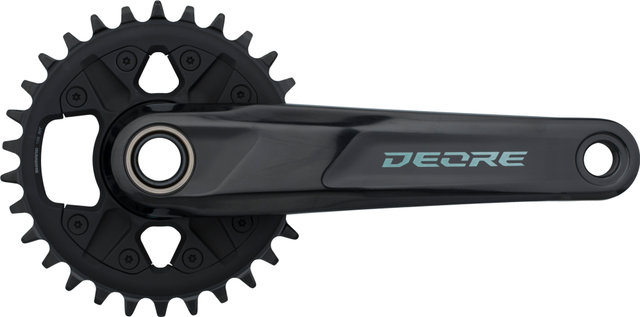

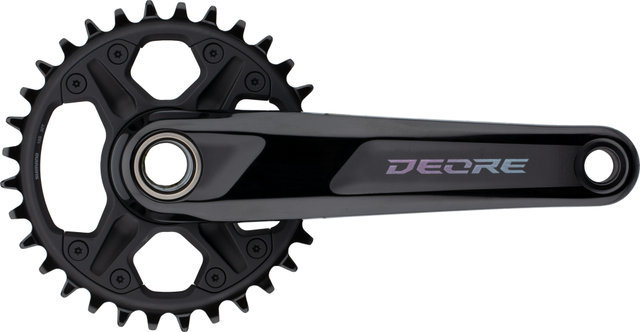

Shimano Deore FC-M6100-1 Crankset

Shimano Deore crankset FC-M6100-1 - for an uncomplicated set-up

The Shimano Deore crankset FC-M6100-1 is for 12-speed drivetrains and comes with a single chainring for direct mounting. Ease of use, reliability and quick chainring changes are the main advantages of such a set-up. The Dynamic Chain Engagement+ technology, which was previously used on the SLX, for example, ensures that the chain runs securely, smoothly and quietly over the teeth. The chainline, i.e. the distance between the frame and the chainring, is 52 mm for this model, making it compatible with 142 mm and 148 mm over locknut dimensions. Last but not least, the FC-M6100-1 scores with its metallic look including colour gradient in the Deore logo and with the 2-piece design, which ensures a balanced ratio of stiffness and weight.

Specifications:

Application:

All Mountain, Cross Country

Compatibility:

Shimano 1x12-speed

Chainring Mount:

Shimano Direct Mount

Technical Information:

Series:

Deore M6100

Crank Arm Material:

aluminium

Chainring Material:

Steel, composite material (GFRP), aluminium

Axle Material:

steel

Gradation:

30 tooth, 32 tooth

Crank Arm Length:

165.0 mm, 170.0 mm, 175.0 mm

Chainline:

52 mm

Q-Factor:

172 mm

Axle Diameter:

24 mm

Compatible BSA Shell Width:

68 mm / 73 mm

Recommended Bottom Bracket:

BB-MT501 or BB-MT500-PA Press Fit Hollowtech II (not included)

Recommended Chain:

HG 12-speed (e.g. CN-M6100)

Compatibility:

MTB 1x12-speed:
Rear Over Locknut Dimension:

• quick release: 135 mm, 141 mm
• thru-axle: 142 mm, 148 mm

Bottom Bracket:

SM-BB93, SM-BB80, BB-MT801, BB-MT800, SM-BB52, BB-MT501, BB-MT500, SM-BB94-41A, BB-MT800-PA, BB-MT500-PA

Chain:

CN-M9100, CN-M8100, CN-M7100, CN-M6100-12

Features:

• stiff, lightweight 2-piece cranks with efficient power transfer
• Direct Mount system
• particularly high retention of the chain on the chainring for comfortable riding on rough terrain
• anodised crank arms, painted chainring

Technology:

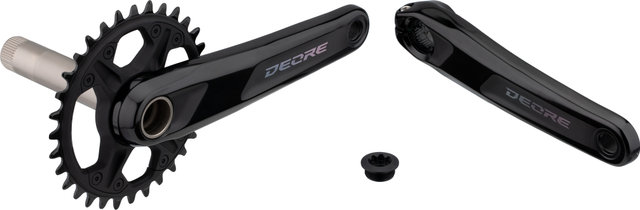

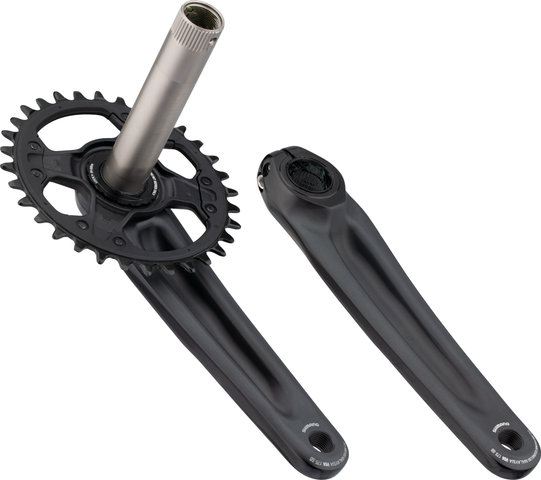

2-Piece Crankset
With the 2-piece designed cranks from Shimano, the right crank arm is precisely matched to the interaction with the bottom bracket. This increases the stiffness and keeps the weight low. Further spaced bearings also improve strength and contribute to more pedalling efficiency. The precision manufacturing of the bearings ensures easy installation and low maintenance. 2-Piece cranks share a 24mm axle diameter with Hollowtech II cranks, so they are also compatible with Hollowtech II bottom brackets.

Dynamic Chain Engagement+
Dynamic Chain Engagement+ is Shimano's term for a special tooth profile of single chainrings intended for off-road use. This improves the chain hold and counteracts chain drop on rough ground. It also minimises wear and increases pedaling efficiency.

Manufacturer Numbers:

165.0 mm 30 tooth:

E-FCM61001AXA2

170.0 mm 30 tooth:

E-FCM61001CXA0

175.0 mm 30 tooth:

E-FCM61001EXA0

165.0 mm 30 tooth:

E-FCM61001AXA2

170.0 mm 32 tooth:

E-FCM61001CXA2

175.0 mm 32 tooth:

E-FCM61001EXA2

Contents:

• 1 x Shimano Deore FC-M6100-1 crankset (30 or 32-tooth)

Order Together:

• TL-FC41 Chainring Assembly Tool
