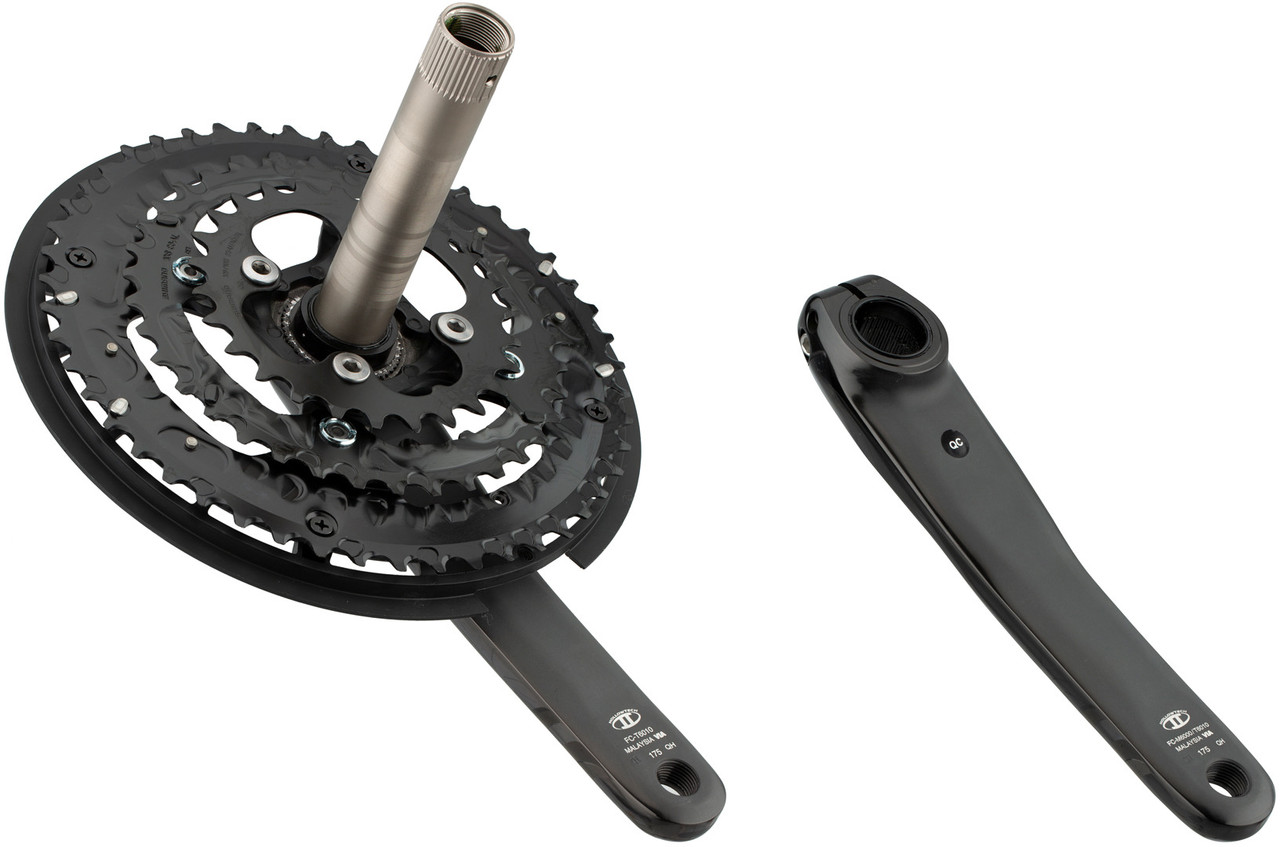

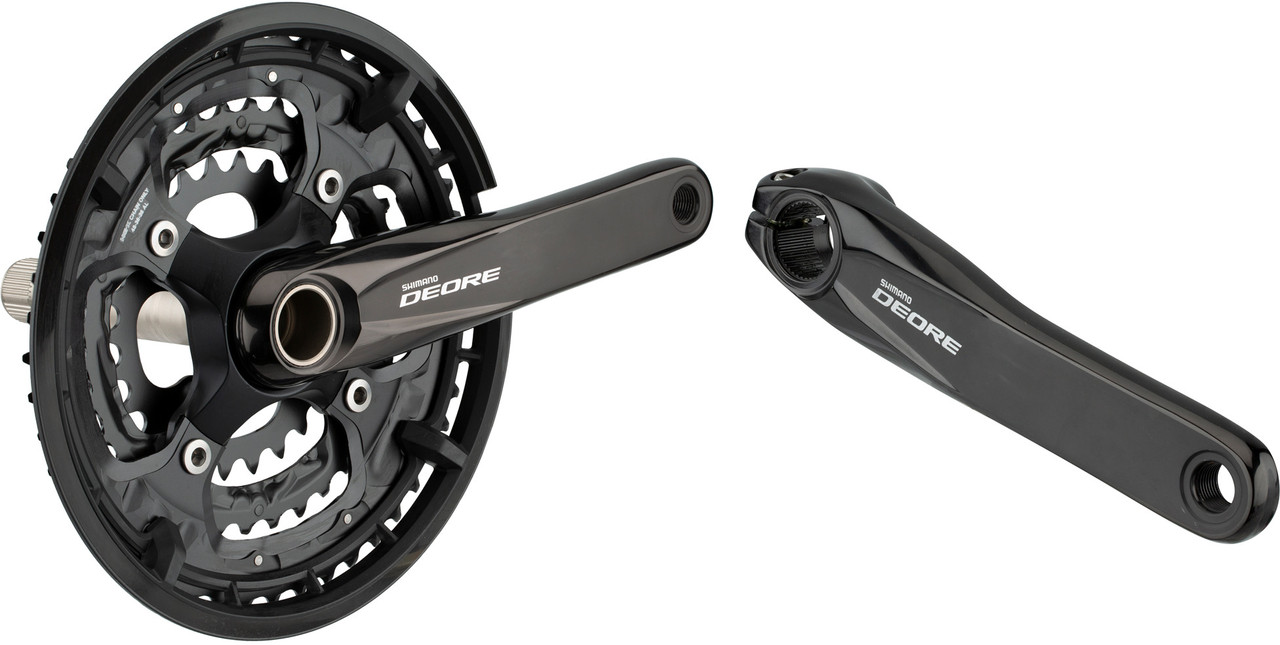

Shimano Deore FC-T6010 Hollowtech II Crankset w/ Chain Guard

Shimano Deore FC-T6010 crankset with chain guard - The heart of the Trekking groupset

The Shimano Deore FC-T6010 10-speed crankset is equipped with three chainrings and can be considered the heart of the Deore Trekking groupset. In combination with the other drivetrain components, it delivers smooth and reliable shifting, even under load. The Hollowtech II design with fixed 24 mm axle provides a balanced ratio of strength and weight. A chainguard ring is supplied to protect the rider's trousers from contact with the chain. The FC-T6010 crank is also chain case compatible if full protection is desired. You have the choice between a black and a silver anodised aluminium finish.

Specifications:

Application:

City & Touring

Compatibility:

Shimano 3x10-speed

Chainring Mount:

104/64 mm bolt circle diameter, 4-arm

Technical Information:

Series:

Deore T6000

Crank Arm Material:

aluminium

Chainring Material:

aluminium / steel / steel

Axle Material:

steel

Gradation:

26-36-48

Crank Arm Length:

170.0 mm, 175.0 mm

Chainline:

50 mm

Q-Factor:

181.5 mm

Axle Diameter:

24 mm

Compatible BSA Shell Width:

68 mm / 73 mm

Recommended Bottom Bracket:

BB-MT501 or BB-MT500-PA Press Fit Hollowtech II (not included)

Recommended Chain:

HG-X 10-speed (e.g. CN-HG54)

Compatibility:

Touring 3x10-speed:

Shifter:

SL-T8000, SL-T780, SL-M780, SL-T670, SL-M670, SL-T610, SL-M610, SL-M591, SL-T6000

Front Derailleur:

FD-T8000, FD-T780, FD-T781, FD-T670, FD-T671, FD-T610, FD-T611, FD-T6000

Bottom Bracket:

SM-BB93, SM-BB80, BB-MT801, BB-MT800, SM-BB52, BB-MT501, BB-MT500, SM-BB94-41A, BB-MT800-PA, BB-MT500-PA

Chain:

CN-M981, CN-M980, CN-HG95, CN-HG94, CN-HG75, CN-HG74, CN-HG54

Chain Case:

compatible

Features:

• efficient power transmission: Hollowtech II crank with four arms
• anodised crank arms
• large chainring anodised, medium and small chainring painted
• stainless steel chainring bolts
• with chain guard

Technology:

Hollowtech II
Shimano Hollowtech II is a crank bottom bracket system designed to achieve an ideal ratio of stiffness, weight and rotational efficiency. It is based on an integration of the bottom bracket and the right crank arm and works with a 24 mm axle or bearing diameter, which has proven to be optimal in terms of stability. In many cases, the bearing cups are on the outside so that the load is better distributed. High-quality precision seals ensure a long service life.

Manufacturer Numbers:

black 170.0 mm 26-36-48:

E-FCT6010CX866CL

sliver 170.0 mm 26-36-48:

E-FCT6010CX866CS

black 175.0 mm 26-36-48:

E-FCT6010EX866CL

sliver 175.0 mm 26-36-48:

E-FCT6010EX866CS

Contents:

• 1 x Shimano Deore FC-T6010 crankset (26-36-48 tooth)
• 1 x Shimano crank bolt
• 1 x chain guard
