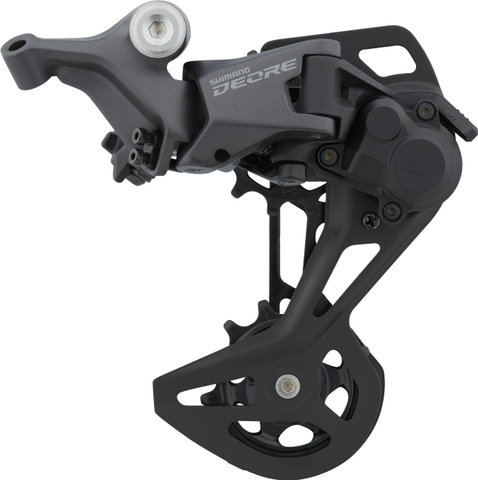

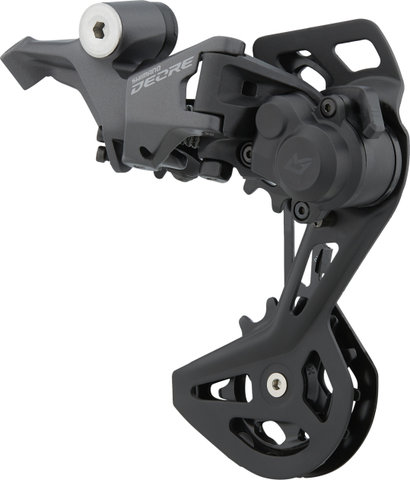

Shimano Deore Linkglide RD-M5130 10-speed Shadow Plus Rear Derailleur

The RD-M5130 Deore Rear Derailleur by Shimano for Linkglide 10-speed Drivetrains

Shimano Deore RD-M5130 is a 10-speed rear derailleur that, in combination with other Linkglide components, provides very smooth, but also very defined gear changes. The Linkglide drivetrain has been specially developed for e-bikes and punishing applications in the touring and MTB sector. The rear derailleur features the tried-and-tested Shadow Plus design, which opens up plenty of scope for off-road riding, and not just because of its low profile. It also prevents chain slap and counteracts chain drop thanks to the built-in stabilizer. The RD-M5130 has a shorter cage and a total capacity of 32 teeth. You can use it to shift a Linkglide cassette with a maximum of 43 teeth. Please note that there is no compatibility with non-Linkglide shifters due to the different cable ratio.

Guidelines for Replacing E-bike Components:

Before you replace components on your e-bike, please read through the guidelines for component replacement for CE-marked e-bikes/pedelecs with pedal assistance.

Specifications:

Series:

Deore M5100 (Linkglide)

Application:

Touring, City, All Mountain

Gearing:

10-speed

Mount:

standard

Capacity:

32-tooth

Compatibility:

Shimano MTB / Trekking 10-speed (Linkglide)

Compatibility - Chains:

HG-X 11-speed, CN-LG500

Technical Information:

Derailleur Pulleys:

13-tooth

Outer Cage Material:

steel

Inner Cage Material:

steel

Other Materials:

aluminium, stainless steel, steel, composite material (GFRP)

Compatibility:

Linkglide 10-speed:

Shifter:

SL-M5130-R10, SL-U6000-10R

Cassette:

CS-LG600-10, CS-LG400-10

Chain:

CN-LG500, CN-HG601-11, CN-HG701-11, CN-HG901-11, CN-E8000-11

E-bike Drivetrain:

EP8 EP800 for MTB / Touring

Features:

• smooth, defined shifting in the Linkglide system
• low profile
• chain stabilizer (Shadow+) against chain drops, chain slaps and noise
• guide and tension pulley with plain bearing
• painted cage plates
• 7 pivot bushings, fluorine-coated

Technology:

Shadow RD+
Shadow Plus rear derailleurs are just as low-profile as Shimano's Shadow rear derailleurs. In addition, a stabilizer with on/off switch is used to reduce chain slap and thus counteract chain drop. At the same time, this results in a quieter drive. Weight is also saved compared to other chain restraint devices.

Models:

short:

Cage Length:

GS

Max. Largest Sprocket Teeth:

43-tooth

Min. Largest Sprocket Teeth:

43-tooth

Max. Smallest Sprocket Teeth:

11-tooth

Min. Smallest Sprocket Teeth:

11-tooth

Max. Chainring Difference:

0-tooth

Total Capacity:

32-tooth

Manufacturer Number:

I-RDM5130GS

Contents:

• 1 x Shimano Deore RD-M5130 Shadow+ rear derailleur
