Shimano Deore M5100 1x11-speed Upgrade Kit - OEM Packaging

The Shimano Deore 1x11-speed upgrade kit - High-quality MTB components from the M5100 series

The Shimano Deore M5100 upgrade kit helps you to switch from, for example, 10-speed to 1x11-speed. It consists of an 11-speed cassette in the 11-51 gradation, a Quick-Link chain, a Shadow Plus rear derailleur and a shifter with gear indicator, which is mounted on the right-hand side with a clamp. Shimano Deore M5100 stands for high-quality, extremely reliable MTB components that are suitable for virtually any riding style. If you are just starting out in mountain biking, or if you ride mainly for fun, the Deore is just right for you.

OEM Packaging:

Cassette, rear derailleur and shifter are original manufacturer's goods without packaging for retail sale. No cable housing or end caps are supplied.

Specifications:

Series:

Deore M5100

Application:

All Mountain, Cross Country

Shifters & Derailleurs:

11-speed (mechanical)

Technical Information:

Cassette:

Type:

Deore CS-M5100-11 (HG)

Gearing:

11-speed

Gradation:

11-13-15-18-21-24-28-33-39-45-51 T

Sprocket Material:

steel

Freehub Compatibility:

Shimano MTB

Spider:

1 (aluminium)

Rear Derailleur:

Type:

Deore RD-M5100 long (SGS)

Mount:

standard

Capacity:

40-tooth

Largest Sprocket Teeth (max.):

51-tooth

Largest Sprocket Teeth (min.):

51-tooth

Smallest Sprocket Teeth (max.):

11-tooth

Smallest Sprocket Teeth (min.):

11-tooth

Max. Difference (front):

0-tooth

Compatibility:

Shimano MTB 11-speed

Compatibility - Chains:

HG-X 11-speed

Derailleur Pulleys:

13-tooth

Outer Cage Material:

steel

Inner Cage Material:

steel

Other Materials:

aluminium, stainless steel, steel, composite material (GFRP)

Chain:

Type:

105 / SLX CN-HG601-11 (HG-X11)

Number of Links:

116*

Closure Type:

master link (Quick-Link)

Pin Type:

chromium-plated, solid

Directional:

yes

Material:

steel

* 116 links. Before ordering, please check whether this chain length is sufficient for your bike.

Shifter:

Type:

Deore SL-M5100 (Rapidfire Plus)

Mount:

clamp (closed)

Body Material:

aluminium

Lever Material:

composite material (GFRP), steel

Cable:

stainless steel (Optislick)

Housing:

OT-SP41 (not included)

Gear Indicator:

yes

Adjustment Options:

cable adjust

Features:

2-Way Release

Manufacturer Numbers:

Cassette:

KCSM510011151

Rear Derailleur:

KRDM5100SGS

Chain:

ICNHG60111116Q

Shifter:

KSLM5100RA

Contents:

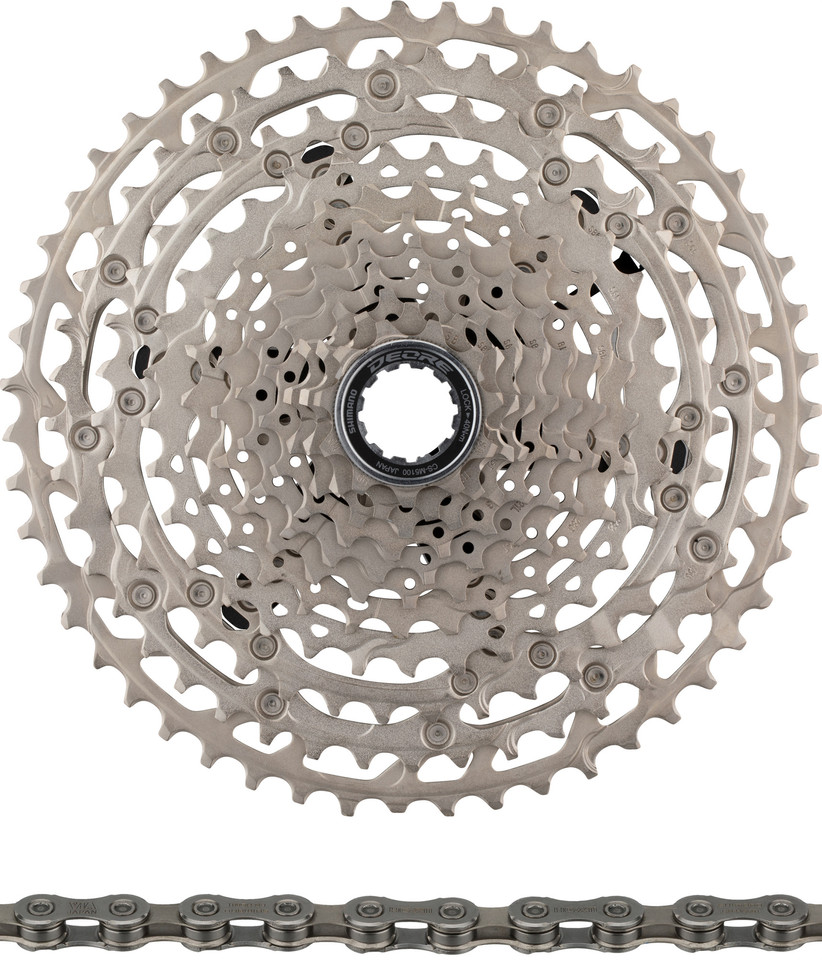

• 1 x Shimano Deore CS-M5100-11 cassette

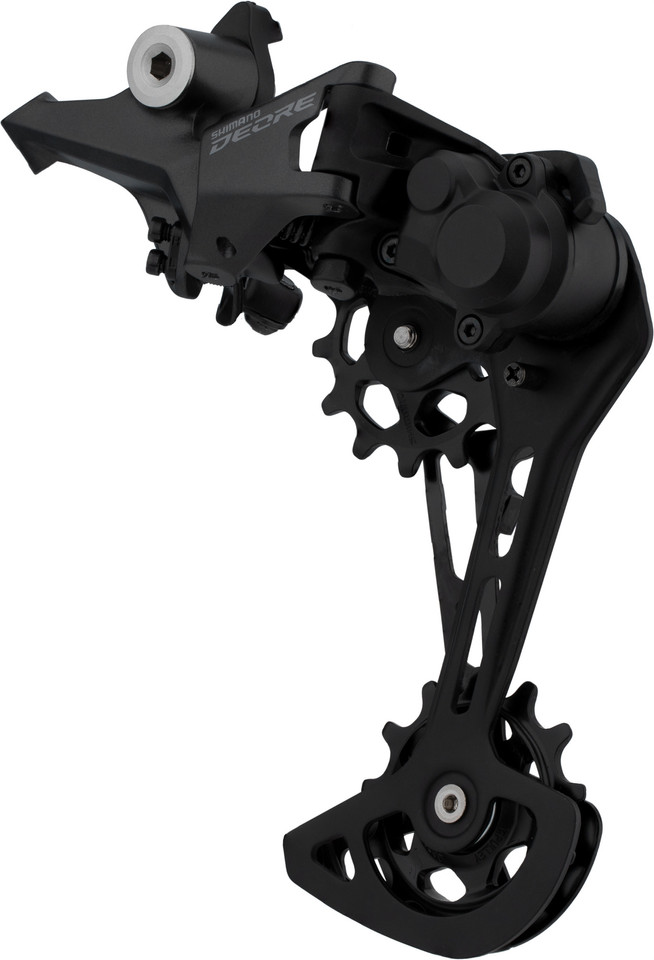

• 1 x Shimano Deore RD-M5100 Shadow+ rear derailleur
• 1 x Shimano 105 / SLX CN-HG601 chain

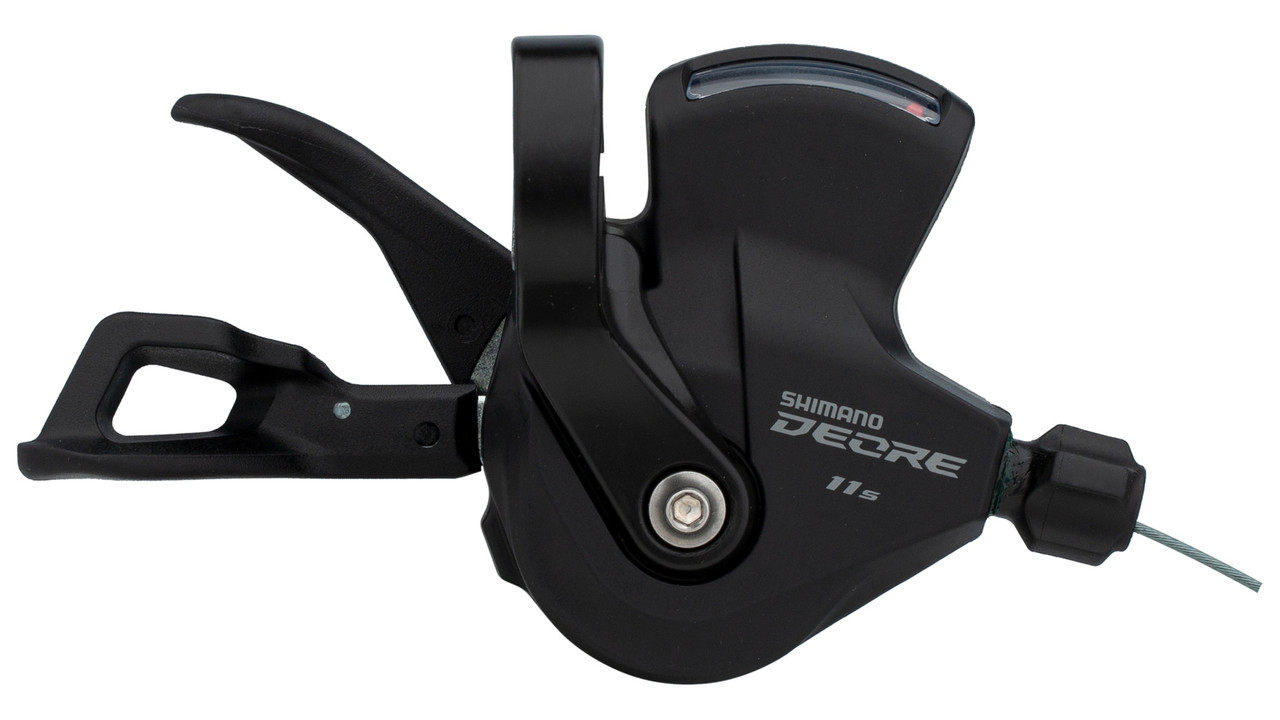

• 1 x Shimano Deore SL-M5100 shifter (right)
• 1 x Shimano cable, 2050 mm
• 1 x ferrules
• 1 x Shimano steel cassette lockring
• 1 x Shimano SM-CN900-11 Quick-Link master link

Order Together:

• SP41 cable housing
• End caps
