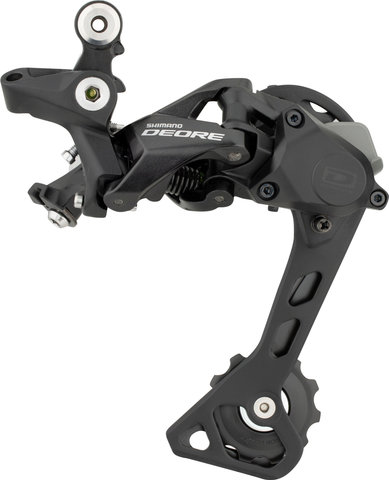

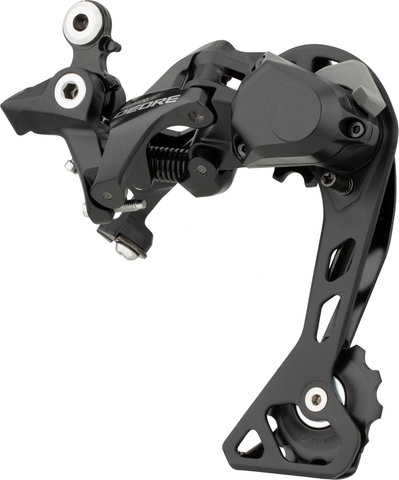

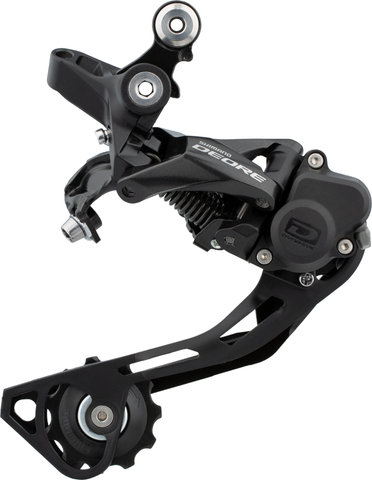

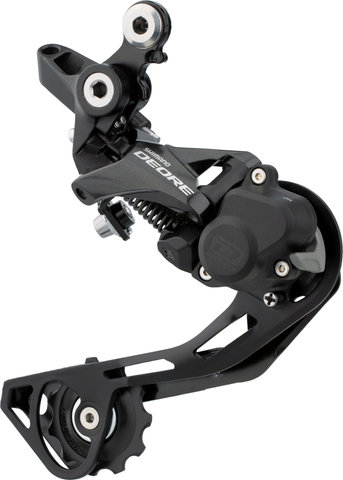

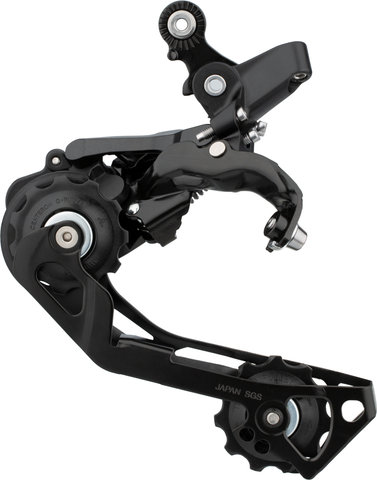

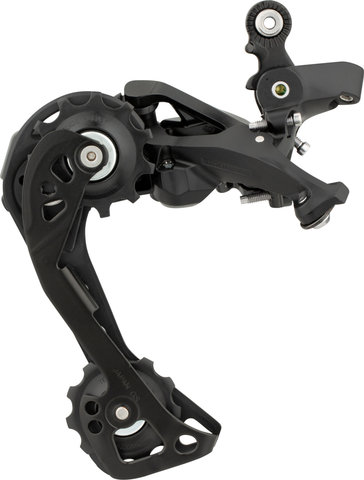

Shimano Deore RD-M6000 10-speed Shadow Plus Rear Derailleur

The Deore Rear Derailleur RD-M6000 by Shimano - More stability and efficiency

The Shimano Deore RD-M6000 rear derailleur features Shadow+ damping technology, which prevents chain slap and makes chain drops less likely. It impresses with smooth, precise and highly-efficient shifting, which can be carried out in the 2x10-speed system on 11-42 or in the 3x10-speed system on 11-36 cassettes. Depending on the case, you have to go for the GS version with a shorter cage or the SGS version with a long cage. The rear derailleur is largely made of painted steel and aluminium.

Guidelines for Replacing E-bike Components:

Before you replace components on your e-bike, please read through the guidelines for component replacement for CE-marked e-bikes/pedelecs with pedal assistance.

Specifications:

Series:

Deore M6000

Application:

All Mountain, Cross Country

Gearing:

10-speed

Mount:

standard (Direct Mount compatible)

Capacity:

41 tooth (short), 43 tooth (long)

Compatibility:

Shimano MTB / City & Touring 10-speed

Compatibility - Chains:

HG-X 10-speed

Technical Information:

Derailleur Pulleys:

11-tooth

Outer Cage Material:

steel

Inner Cage Material:

steel

Other Materials:

stainless steel, steel, aluminium, composite material (GFRP)

Compatibility:

MTB 10-speed:

Shifter:

SL-M7000-10, SL-M6000, SL-M4100, SL-M820, SL-M640, SL-M610, SL-T8000, SL-T6000, SL-T780, SL-T670, SL-T610

Cassette:

• short / GS / 2x10-speed: CS-M4100-10, CS-HG500-10 (only 11-42 t)
• long / SGS / 3x10-speed: CS-M771-10, CS-HG81-10 (11-32, 11-34, 11-36 t), CS-HG500-10 (only 11-32, 11-34 t), CS-HG50-10 (only 11-36 t)

Chain:

CN-HG95, CN-HG54

E-Bike:

STEPS E7000

Features:

• highly efficient drivetrain for aggressive trail riding
• low shifting resistance
• smooth, precise shifting
• enhanced stability
• compatible with a wide range of gradations
• painted cage
• 4 fluorine-coated joint bushings (GS version) or 3 fluorine-coated joint bushings (SGS version)

Technology:

Shadow RD+
Shadow Plus rear derailleurs are just as low-profile as Shimano's Shadow rear derailleurs. In addition, a stabilizer with on/off switch is used to reduce chain slap and thus counteract chain drop. At the same time, this results in a quieter drive. Weight is also saved compared to other chain restraint devices.

Models:

short:

Cage Length:

GS

Max. Largest Sprocket Teeth:

42-tooth

Min. Largest Sprocket Teeth:

42-tooth

Max. Smallest Sprocket Teeth:

11-tooth

Min. Smallest Sprocket Teeth:

11-tooth

Max. Chainring Difference:

10-tooth

Total Capacity:

41-tooth

Manufacturer Number:

I-RDM6000GS

long:

Cage Length:

SGS

Max. Largest Sprocket Teeth:

36-tooth

Min. Largest Sprocket Teeth:

32-tooth

Max. Smallest Sprocket Teeth:

11-tooth

Min. Smallest Sprocket Teeth:

11-tooth

Max. Chainring Difference:

22-tooth

Total Capacity:

43-tooth

Manufacturer Number:

I-RDM6000SGS

Contents:

• 1 x Shimano Deore RD-M6000 Shadow+ rear derailleur
