Shimano Deore SL-M5100-I 11-speed Shifter w/ I-Spec EV

Shimano Deore SL-M5100-I - 11-speed shifter with I-Spec EV

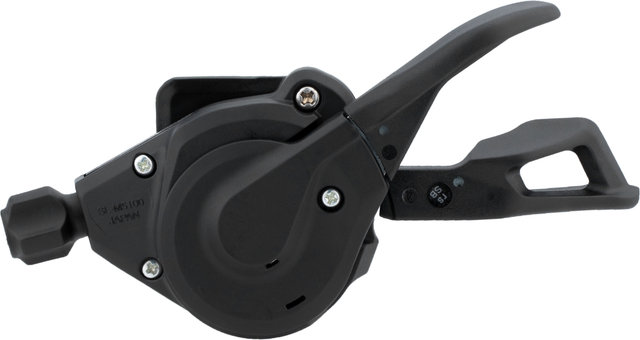

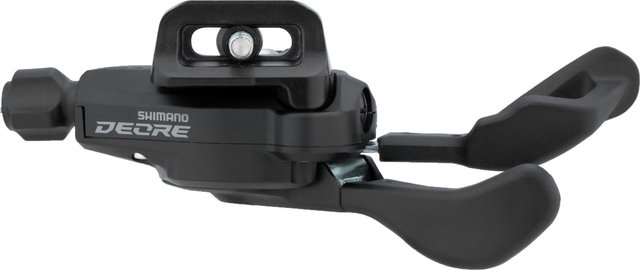

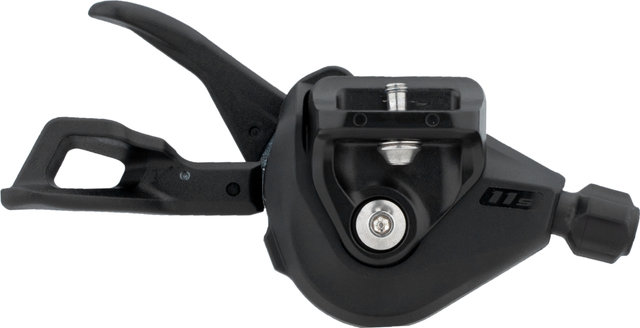

The Shimano Deore SL-M5100-I shifter is used with 11-speed drivetrains and is combined with a compatible brake lever via the I-Spec EV interface. This opens up new possibilities for cockpit design. As a Rapidfire-Plus shifter, the SL-M5100-I features a 2-Way Release function, i.e. the shifter cable can be released by pressing with the thumb or by pulling with the index finger. A cable and an OT-SP41 cable housing are included.

Guidelines for Replacing E-bike Components:

Before you replace components on your e-bike, please read through the guidelines for component replacement for CE-marked e-bikes/pedelecs with pedal assistance.

Specifications:

Series:

Deore M5100

Application:

All Mountain, Cross Country

Gearing:

11-speed

Mount:

I-Spec EV

Technical Information:

Type:

Rapidfire Plus

Body Material:

Aluminium

Lever Material:

composite material (GFRP), steel

Cable:

stainless steel (Optislick)

Cable Housing:

OT-SP41

Adjustment Options:

• cable adjust
• position adjust
• shift lever rotation adjust

Compatibility:

MTB 11-speed:

Rear Derailleur:

RD-M9000, RD-M8000, RD-M7000-11, RD-M5100, RD-M5120, RD-M4120

Cassette:

CS-M9001, CS-M8000, CS-M7000-11, CS-M5100-11

Chain:

CN-HG901-11, CN-HG701-11, CN-HG601-11, CN-LG500

Brake Lever:

I-Spec EV

E-Bike:

EP8 EP800 for MTB / Touring with mechanical rear derailleur

Features:

• faster access and smooth shifting
• I-Spec EV: 14 mm adjustment range
• max. number of gears per shift: 3 (main lever, rear)
• Optislick inner cable with a minimal galvanic coating for more efficient cable routing and corrosion resistance
• painted housing
• stainless steel clamp bolts

Technology:

Rapidfire Plus
Rapidfire Plus is a type of Shimano shift lever construction that has been common in the mountain bike sector since 1985. Two levers, the main lever and the release lever, are used instead of a twist shifter. Rapidfire Plus shift levers, as the name suggests, ensure fast shifting. In addition, depending on the model, it is possible to downshift up to three gears with one shift stroke.

2-Way-Release
With 2-Way-Release, the shifter can be pressed and pulled to shift to the smaller sprocket or chainring. This allows you to adjust the shifting process to your personal preferences. Most Rapidfire Plus shifters are equipped with 2-Way Release.

I-Spec EV
I-Spec EV describes a variant of the connection between brake lever and shift lever on Shimano MTB derailleurs. This type of mounting allows the shifter to be adjusted both horizontally and vertically in relation to the brake lever, and ensures a tidy cockpit by reducing the number of clamps required. Compared to I-Spec and I-Spec II, I-Spec EV offers a much wider adjustment range. 14 mm adjustment range the longitudinal direction and up to 60° rotation allow an optimal ergonomic adjustment to your riding style, your sitting position and your anatomy.

Models:

11-speed:

Mount:

right

Manufacturer Number:

I-SLM5100IRA1P

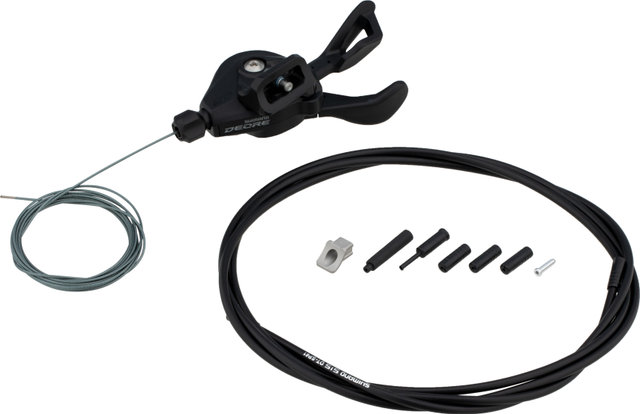

Contents:

• 1 x Shimano Deore SL-M5100-I shifter
• 1 x Shimano cable (2050 mm)
• 1 x Shimano cable housing (1880 mm)
• 3 x 6 mm sealed end caps
• 1 x long nose end cap
