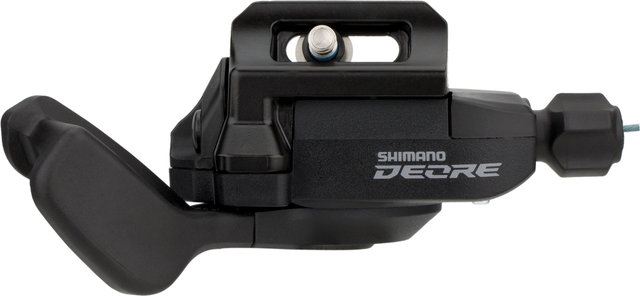

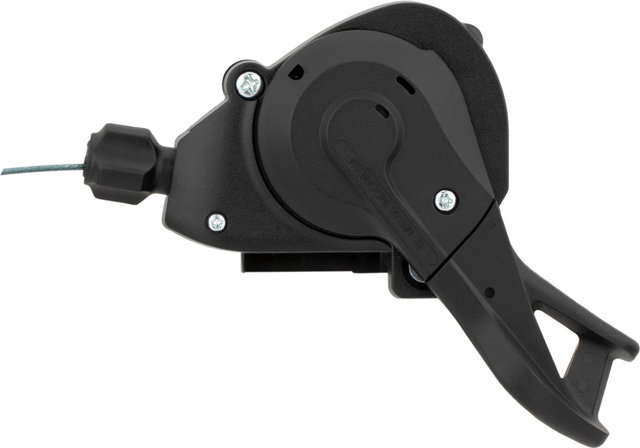

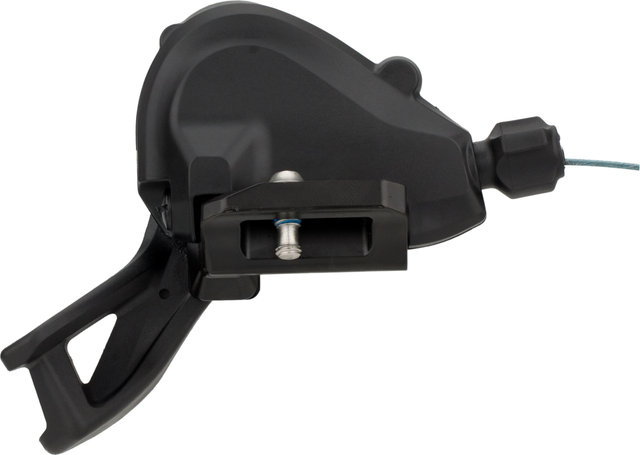

Shimano Deore SL-M5100-I Mono 2x Shifter w/ I-Spec EV

Shimano Deore SL-M5100-I Mono - I-Spec-EV shifter with only one lever

The Shimano Deore SL-M5100-I Mono shifter is mounted on the left side via the I-Spec-EV mount on a compatible brake lever, opening up new possibilities for cockpit design. It is used to control the front derailleur in set-ups with two chainrings. As its name " Mono" suggests, it can be shifted up and down with just one single lever. As a Rapidfire-Plus shifter, the SL-M5100-I is characterised by its 2-Way Release function, i.e. it can be operated with the thumb or with the index finger.

Specifications:

Series:

Deore M5100

Application:

All Mountain, Cross Country

Gearing:

2-speed

Mount:

I-Spec EV

Technical Information:

Type:

Rapidfire Plus Mono

Body Material:

Aluminium

Lever Material:

composite material (GFRP), steel

Cable:

steel (Optislick)

Adjustment Options:

• cable adjust
• position adjust
• shift lever rotation adjust

Compatibility:

MTB 2x11-speed:

Right Shifter:

SL-M5100-IR, SL-M5100-R

Front Derailleur:

FD-M9020, FD-M9025, FD-M8020, FD-M8025, FD-M7020-11, FD-M7025-11, FD-M5100

Crank:

FC-M9000-2, FC-M9020-2, FC-M9020-B2, FC-M8000-2, FC-M8000-B2, FC-M7000-2, FC-M7000-B2, FC-M5100-2, FC-M5100-B2, FC-MT700-2, FC-MT700-B2, FC-MT600-2, FC-MT600-B2

Chain:

CN-HG901-11, CN-HG701-11, CN-HG601-11, CN-LG500

Brake Lever:

I-Spec EV

MTB 2x10-speed:

Right Shifter:

SL-M4100-IR, SL-M4100-R

Front Derailleur:

FD-M617, FD-M618, FD-M6020, FD-M6025, FD-M4100

Crank:

FC-M627, FC-M627-B, FC-M617, FC-M617-B2, FC-M6000-2, FC-M6000-B2

FC-M4100-2, FC-M4100-B2, FC-MT500-2, FC-MT500-B2

Chain:

CN-HG95, CN-HG54

Brake Lever:

I-Spec EV

Features:

• up and down shifting with a single lever
• I-Spec EV: 14 mm adjustment range
• Optislick inner cable with a minimal galvanic coating for more efficient cable routing and corrosion resistance
• painted housing
• stainless steel clamp bolts

Technology:

Rapidfire Plus Mono
Shimano Rapidfire Plus Mono shift levers are only available for the left side, because they shift the front derailleur. In contrast to regular Rapidfire Plus models, only one lever is installed here, which is used for both upshifting and downshifting. This is practical and accommodates natural finger positions. You change the chainring comfortably while keeping a firm grip on the handlebars and concentrating on the ride.

2-Way-Release
With 2-Way-Release, the shifter can be pressed and pulled to shift to the smaller sprocket or chainring. This allows you to adjust the shifting process to your personal preferences. Most Rapidfire Plus shifters are equipped with 2-Way Release.

I-Spec EV
I-Spec EV describes a variant of the connection between brake lever and shift lever on Shimano MTB derailleurs. This type of mounting allows the shifter to be adjusted both horizontally and vertically in relation to the brake lever, and ensures a tidy cockpit by reducing the number of clamps required. Compared to I-Spec and I-Spec II, I-Spec EV offers a much wider adjustment range. 14 mm adjustment range the longitudinal direction and up to 60° rotation allow an optimal ergonomic adjustment to your riding style, your sitting position and your anatomy.

Models:

2-speed:

Mount:

left

Manufacturer Number:

E-SLM5100ILB

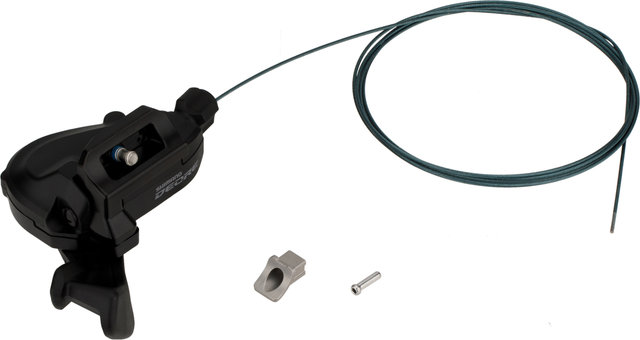

Contents:

• 1 x Shimano Deore SL-M5100-I Mono shifter
• 1 x Shimano cable (1800 mm)
