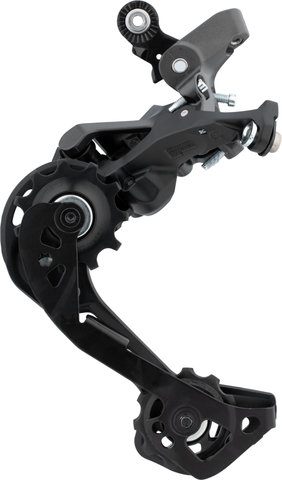

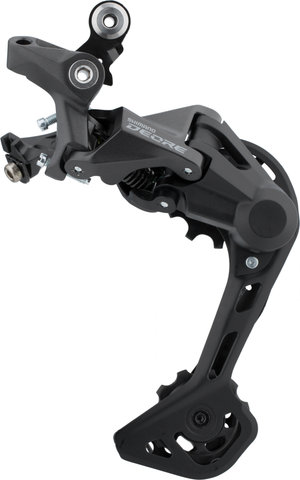

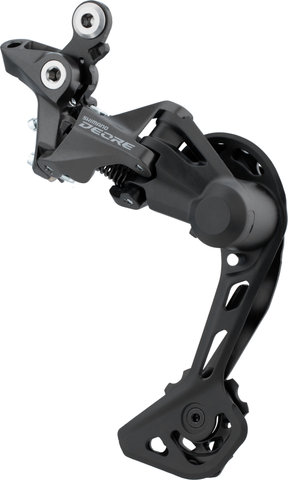

Shimano Deore Shadow RD-M4120 10-/11-speed Rear Derailleur

Deore rear derailleur RD-M4120 by Shimano - for 2x10-speed and 2x11-speed

The Deore rear derailleur RD-M4120 has been designed by Shimano for both 2x10-speed and 2x11-speed drivetrains in MTB and City & Touring applications. The largest cassette sprocket must have 42 teeth and the difference between the chainrings must not exceed 10 teeth. Thanks to its flat " Shadow" design and simple pre-tensioning, the rear derailleur does not hit the chainstay even on rough surfaces.

Specifications:

Series:

Deore M4100

Application:

All Mountain, City & Touring, Cross Country

Gearing:

10-speed, 11-speed

Mount:

standard (Direct Mount compatible)

Capacity:

41 tooth

Compatibility:

Shimano MTB / Touring 10-speed, Shimano MTB 11-speed

Compatibility - Chains:

HG-X 10-speed, HG-X 11-speed

Technical Information:

Derailleur Pulleys:

11 tooth

Outer Cage Material:

steel

Inner Cage Material:

steel

Other Materials:

aluminium, steel, stainless steel, synthetic resin

Features:

• only 2x compatible
• compact Shadow profile limits damage from rocks and roots
• painted cage plates
• 3 joint bushings, fluorine-coated

Models:

long:

Cage Length:

SGS

Max. Largest Sprocket Teeth:

42 teeth

Min. Largest Sprocket Teeth:

42 teeth

Max. Smallest Sprocket Teeth:

11 teeth

Min. Smallest Sprocket Teeth:

11 teeth

Max. Chainring Difference:

10 teeth

Total Capacity:

41 teeth

Manufacturer Part Number:

E-RDM4120SGS

Contents:

• 1 x Shimano Deore RD-M4120 Shadow rear derailleur
