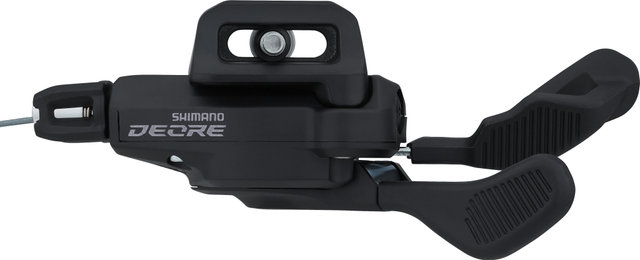

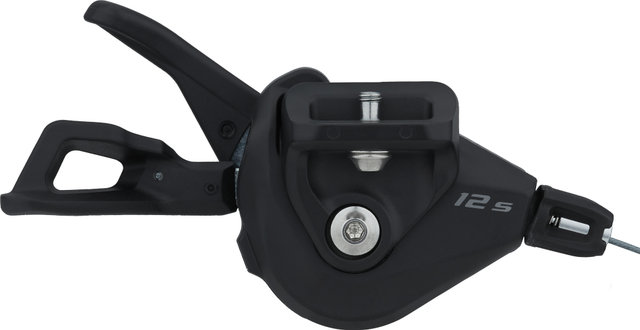

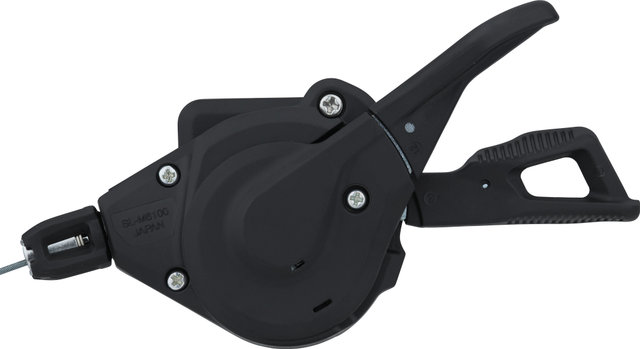

Shimano Deore Shifter SL-M6100-I I-Spec EV 12-speed

The Deore Shifter SL-M6100-I by Shimano - Version with I-Spec EV

The Shimano Deore SL-M6100 shifter is also available in a version for I-Spec EV. This means that it can be attached to the mount of a corresponding right-hand brake lever to save space. Extended adjustment options are then available in the longitudinal and rotational directions, allowing the cockpit to be designed more ergonomically. With the SL-M6100-I, you can reliably shift through all twelve gears of the completely revised Deore groupset. As a Rapidfire Plus shifter, it features the 2-way release function, i.e. the shift cable can be released by thumb pressure or also by pulling with the index finger. A coated cable and OT-SP41 outer sheath are included.

Specifications:

Series:

Deore M6100

Application:

All Mountain, Cross Country, Enduro

Gearing:

12-speed

Mount:

I-Spec EV

Technical Information:

Type:

Rapidfire Plus

Body Material:

Aluminium

Lever Material:

composite material (GFRP), steel

Cable:

stainless steel (Optislick)

Cable Housing:

OT-SP41

Adjustment Options:

• cable adjust
• position adjust
• shift lever rotation adjust

Compatibility:

MTB 12-speed:

Rear Derailleur:

RD-M9100, RD-M8100, RD-M7100, RD-M6100, RD-M9120, RD-M8120, RD-M7120

Cassette:

CS-M9101-12, CS-M9100-12, CS-M8100-12, CS-M7100-12, CS-M6100-12

Chain:

CN-M9100, CN-M8100, CN-M7100, CN-M6100

Brake Lever:

I-Spec EV

Features:

• quick access to the shift lever and easy operation
• max. number of gears per shift: 3 (main lever, rear)
• clearly arranged and action-optimised cockpit
• 14 mm range in longitudinal direction thanks to I-Spec EV
• Optislick inner cable with a minimal galvanic coating for more efficient cable routing and corrosion resistance
• painted housing
• stainless steel clamp bolts

Technology:

Rapidfire Plus
Rapidfire Plus is a type of Shimano shift lever construction that has been common in the mountain bike sector since 1985. Two levers, the main lever and the release lever, are used instead of a twist shifter. Rapidfire Plus shift levers, as the name suggests, ensure fast shifting. In addition, depending on the model, it is possible to downshift up to three gears with one shift stroke.

2-Way-Release
With 2-Way-Release, the shifter can be pressed and pulled to shift to the smaller sprocket or chainring. This allows you to adjust the shifting process to your personal preferences. Most Rapidfire Plus shifters are equipped with 2-Way Release.

I-Spec EV
I-Spec EV describes a variant of the connection between brake lever and shift lever on Shimano MTB derailleurs. This type of mounting allows the shifter to be adjusted both horizontally and vertically in relation to the brake lever, and ensures a tidy cockpit by reducing the number of clamps required. Compared to I-Spec and I-Spec II, I-Spec EV offers a much wider adjustment range. 14 mm adjustment range the longitudinal direction and up to 60° rotation allow an optimal ergonomic adjustment to your riding style, your sitting position and your anatomy.

Models:

12-speed:

Mount:

right

Manufacturer Number:

I-SLM6100IRA1P

Contents:

• 1 x Shimano Deore SL-M6100-I shifter
• 1 x Shimano cable (2050 mm)
• 1 x Shimano cable housing (1880 mm)
• 3 x 6 mm sealed end caps
• 1 x long nose end cap
