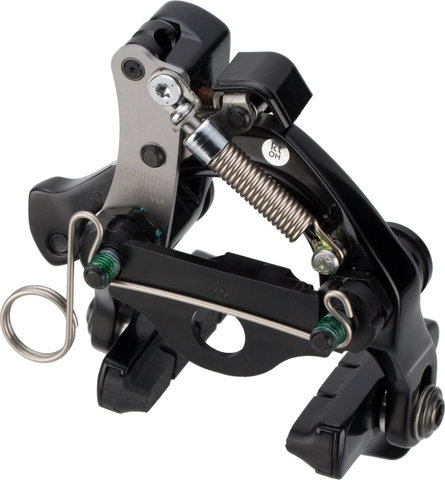

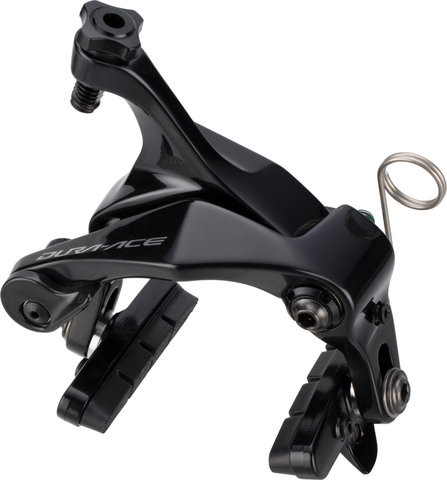

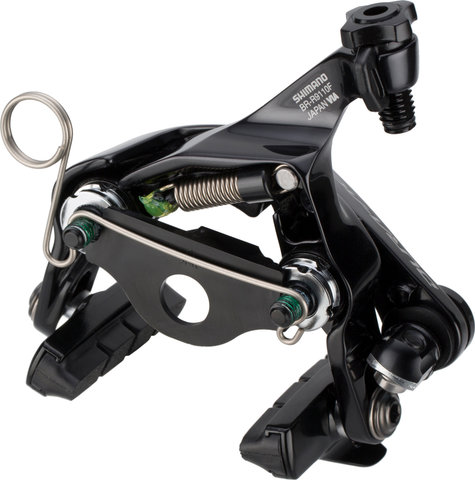

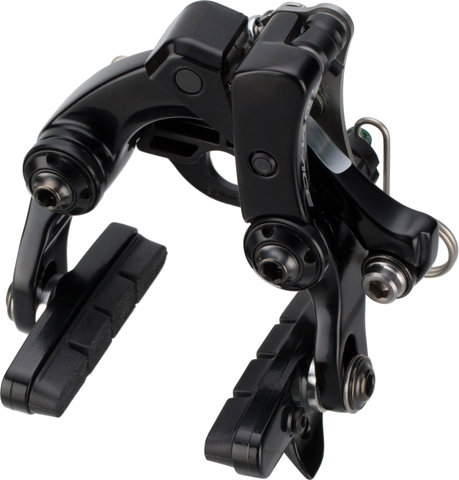

Shimano Dura-Ace BR-R9110 Rim Brake for Direct Mount

Shimano Dura-Ace BR-R9110 Direct Mount Rim Brake - Perfect for aero bikes

The Shimano Dura-Ace BR-R9110 direct mount rim brake can be integrated aerodynamically into a Road bike build. It is attached directly to the fork (front ) or to the seatstays/chainstays (rear) and affects the wind shear significantly less than conventional rim brake models. Of course, the Shimano SLR-EV technology provides strong braking performance and intuitive modulation. The weight of the brake caliper is remarkably low, thanks to titanium hardware and angle-adjustable magnesium cartridge brake shoes. A pair of R55C4 brake pads for aluminium rims is included.

Specifications:

Series:

Dura-Ace R9100

Application:

Road, Triathlon & Time Trial

Type:

dual pivot side-pull brakes

Mount:

Direct Mount

Technical Information:

Material:

Aluminium

Surface Finish:

anodised

Pads:

R55C4

Brake Arm Length:

51 mm

Actuation:

brake cable

Assembly Pivot Nut Material:

titanium

Anchor Bolt Material:

titanium

Approved For:

Tyre Size (max.):

28 mm (28c)

Rim Width (max.):

20.8 - 28 mm

Adjustment Options:

• brake shoe angle adjust
• spring tension adjust (only BR-R9110-R)

Compatibility:

Shift/Brake Lever:

ST-R8150, ST-R8000, ST-R8050, ST-R8060, ST-6870, ST-6871, ST-6800, ST-6770, ST-6700, ST-R9250, ST-R9100, ST-R9150, ST-R9160, ST-9070, ST-9071, ST-9001, ST-9000, ST-5800, ST-R7000, ST-5700, ST-4700, ST-4600, ST-R3000, ST-3500, ST-R2000, ST-2400, ST-R460, ST-R353, ST-R350, ST-R240

Brake Lever:

BL-TT79, BL-4700, BL-R3000, BL-R2000, BL-2400, BL-3500, BL-R780

Features:

• front: direct fork mount
• rear: direct chainstay or seatstay mount
• higher overall braking performance
• slim, flat integrated brake caliper design
• comfortable riding with wider tyres on rough roads
• intuitive modulation of the brake
• smooth and easy operation
• cartridge brake shoes made of magnesium

tyre protectors

• quick release (not on BR-R9110-R)

Note from the manufacturer:

When caliper is fully closed without rear wheel, the length of brake outer casing should be long enough between cable outer stopper and caliper.

Models:

Front:

Mount:

forks

Type:

BR-R9110-F

Manufacturer Number:

I-BRR9110F82

rear:

Mount:

chainstays

Type:

BR-R9110-R

Manufacturer Number:

I-BRR9110R82

rear seatstays:

Mount:

seatstays

Type:

BR-R9110-RS

Manufacturer Number:

I-BRR9110RS82

Contents:

• 1 x Shimano Rim Brake Dura-Ace BR-R9110-F or BR-R9110-R or BR-R9110-RS
• 1 x pair R55C4 brake pads

Order Together:

• SM-CB90 Brake Adjuster for tension adjustment and quick release function

Optional Accessories:

• R55C4 brake pads for carbon rims
• R55C4-A brake pads for carbon rims
