Shimano EW-SD300-I Power Cable for Di2

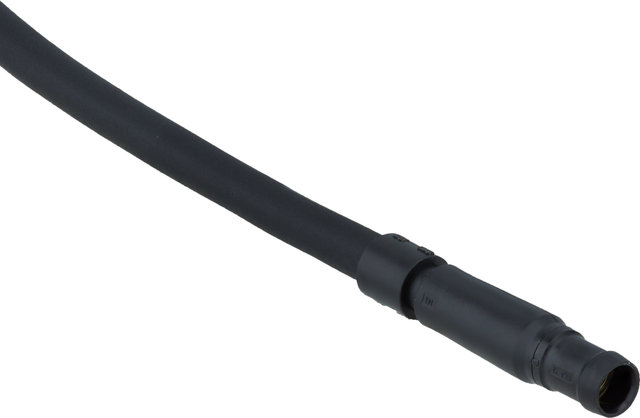

The EW-SD300-I Power Cable for Shimano Di2 Derailleurs - Thin, light, powerful

EW-SD300-I is a power cable from Shimano for internal routing in the frame, which was developed with regard to the Dura-Ace and Ultegra Di2 12-speed road bike derailleurs and the MU-UR510 hub gear motor unit respectively. It is 0.4 mm thinner than the previous EW-SD50 cable, which saves weight and has optical advantages. There is a connector on both sides, which, with a diameter of 3.45 mm, is also significantly slimmer than before. Electrical signals are thus exchanged at lightning speed between the rear derailleur, battery, front derailleur and, if applicable, the STIs. Di2 shifters for time trial and triathlon that require the old cable can be connected to the EW-SD300-I via conversion adapter. Included are two cable guides with which you can prevent the cable from shifting in the frame after installation.

Information regarding the return of batteries and electrical equipment:

Information on the return and disposal of batteries and electrical equipment can be found here.

Specifications:

Cable Length:

150 - 1600 mm

Cable Routing:

internal

Number of Plugs:

2

Cable Diameter:

2.4 mm

Plug Diameter:

3.45 mm

Compatibility:

• Dura-Ace Di2 R9250
• Ultegra Di2 R8150
• 105 Di2 R7150
• TT/Triathlon components SW-R9160, ST-R9160, ST-R9180, ST-R8060 with adapter
• Alfine Di2 with MU-UR510 (for Flat and Drop Bar)
• Nexus Di2 Inter-8 with MU-UR510

Features:

• cable 0.4 mm thinner than EW-SD50
• plug 1.65 mm thinner than EW-SD50
• with cable guides that prevent movement in the frame

Manufacturer Numbers:

150 mm:

I-EWSD300IL015

200 mm:

I-EWSD300IL020

250 mm:

I-EWSD300IL025

300 mm:

I-EWSD300IL030

350 mm:

I-EWSD300IL035

400 mm:

I-EWSD300IL040

500 mm:

I-EWSD300IL050

550 mm:

I-EWSD300IL055

600 mm:

I-EWSD300IL060

650 mm:

I-EWSD300IL065

700 mm:

I-EWSD300IL070

750 mm:

I-EWSD300IL075

800 mm:

I-EWSD300IL080

850 mm:

I-EWSD300IL085

900 mm:

I-EWSD300IL090

950 mm:

I-EWSD300IL095

1000 mm:

I-EWSD300IL100

1200 mm:

I-EWSD300IL120

1400 mm:

I-EWSD300IL140

1600 mm:

I-EWSD300IL160

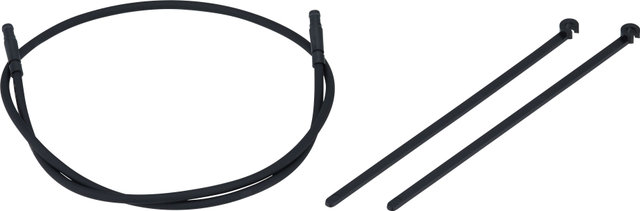

Contents:

• 1 x Shimano Di2 EW-SD300-I power cable
• 2 x cable guides
