Shimano FC-MT500-3 10-speed Chainring - black/30

Shimano FC-MT500-3 10-speed Chainring

Item number: 64942
1
1

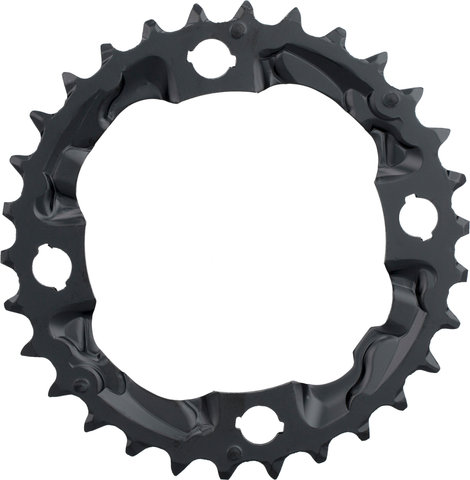

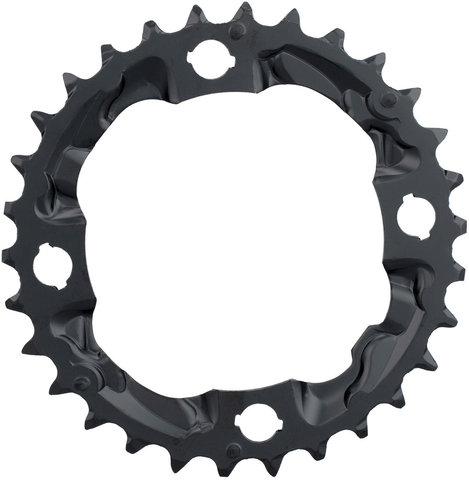

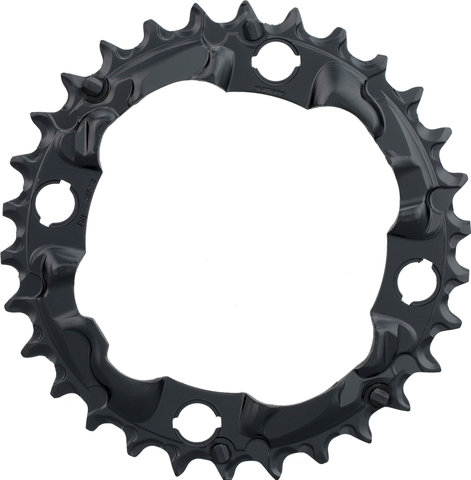

The Shimano 10-speed Chainring for FC-MT500-3 Cranks


This Shimano 10-speed chainring is compatible with the FC-MT500 Triple crank. It has a 4-arm bolt circle diameter of 96 mm and can be used for the 22-30-40 tooth combination. The 30-tooth version is made of steel, the 40-tooth chainring of aluminium.

Specifications:

Application:
All Mountain, Cross Country
Attachment:
96 mm bolt circle diameter, 4-arm
Teeth:
30 T, 40 T
Gearing:
3x10-speed

Technical Information:

Combinations:
22-30-40 T
Material:
steel (30 t), aluminium (40 t)

Compatibility:

  • FC-MT500-3
  • also fits FC-M612, FC-M523

Features:

  • large chainring anodised, middle chainring plated

Models:

30 tooth:
Type:
AN
Manufacturer Number:
Y-1VB98010

40 tooth:
Type:
AN
Manufacturer Number:
Y-1VB98020

Note:
The 22 tooth chainring (Y-1NW22000) is identical to SLX FC-M672 chainring. For the FC-MT500-3 with chain protection ring, a special 40 T chainring must be used.

Note to Type Designation:

The type designation (one or two characters) helps identify the compatibility of various chainrings with other chainrings. Because the larger chainrings have specially-formed teeth and upward shifting assistance, only particular smaller chainrings will match to ensure proper shifting performance. An XY chainring should only be combined with another XY chainring. This applies to all other types as well.

Contents:

  • 1 x Shimano MT500 chainring


Manufacturer:

Shimano Europe B.V.
High Tech Campus 92
5656 AG Eindhoven
Netherlands
