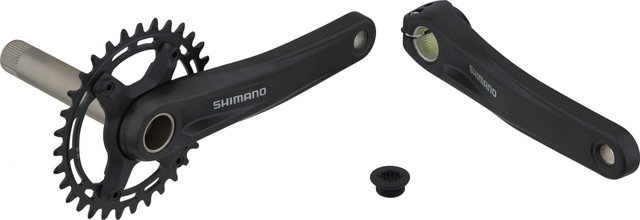

Shimano FC-MT510-1 Crankset

The FC-MT510-1 Crankset by Shimano - Suitable for various over locknut dimensions

The FC-MT510-1 is a groupless Shimano crank on Deore level for trail and touring use. It is compatible with 1x12-speed shifters and derailleurs, and is suitable for frames with standard as well as with Boost over locknut dimension. The crank comes with a chainring attached via a 4-arm spider with a 96 mm bolt circle diameter. Thanks to the Dynamic Chain Engagement+ tooth profile, the best chain retention is ensured even on rough ground. In addition, the FC-MT510 scores not only with precise and reliable shifting, but also with stiffness and power transmission efficiency due to its 2-piece design. The crank arms are made of lightweight aluminium, the chainring is made of steel.

Specifications:

Application:

All Mountain, City & Touring, Cross Country

Compatibility:

Shimano 1x12-speed

Chainring Mount:

96 mm pitch circle, 4-arm asymmetrical

Technical Information:

Crank Arm Material:

aluminium

Chainring Material:

steel

Axle Material:

steel

Gradation:

32-tooth

Crank Arm Length:

170.0 mm, 175.0 mm

Chainline:

52 mm

Q-Factor:

177 mm

Axle Diameter:

24 mm

Compatible BSA Shell Width:

68 mm / 73 mm

Recommended Bottom Bracket:

BB-MT501 or BB-MT500-PA Press Fit Hollowtech II (not included)

Recommended Chain:

HG 12-speed (e.g. CN-M6100)

Compatibility:

MTB 1x12-speed:
Rear Over Locknut Dimension:

• quick release: 135 mm, 141 mm
• thru-axle: 142 mm, 148 mm

Bottom Bracket:

SM-BB93, SM-BB80, BB-MT801, BB-MT800, SM-BB52, BB-MT501, BB-MT500, SM-BB94-41A, BB-MT800-PA, BB-MT500-PA

Chain:

CN-M9100, CN-M8100, CN-M7100, CN-M6100

Features:

• precise and reliable gear changes
• comfortable riding on rough terrain
• improved running and retention of the chain thanks to Dynamic Chain Engagement+
• painted crank arms and chainring
• stainless steel chainring bolts

Technology:

2-Piece Crankset
With the 2-piece designed cranks from Shimano, the right crank arm is precisely matched to the interaction with the bottom bracket. This increases the stiffness and keeps the weight low. Further spaced bearings also improve strength and contribute to more pedalling efficiency. The precision manufacturing of the bearings ensures easy installation and low maintenance. 2-Piece cranks share a 24mm axle diameter with Hollowtech II cranks, so they are also compatible with Hollowtech II bottom brackets.

Dynamic Chain Engagement+
Dynamic Chain Engagement+ is Shimano's term for a special tooth profile of single chainrings intended for off-road use. This improves the chain hold and counteracts chain drop on rough ground. It also minimises wear and increases pedaling efficiency.

Manufacturer Numbers:

170.0 mm 32 tooth:

E-FCMT5101CXA2L

175.0 mm 32 tooth:

E-FCMT5101EXA2L

Contents:

• 1 x Shimano FC-MT510-1 crankset (32 tooth)
• 1 x Shimano crank bolt

Order Together:

• TL-FC41 Chainring Assembly Tool
