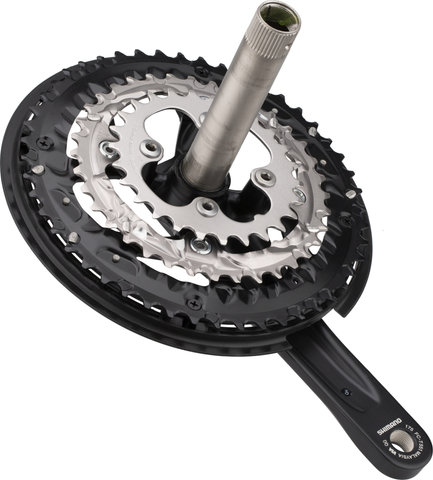

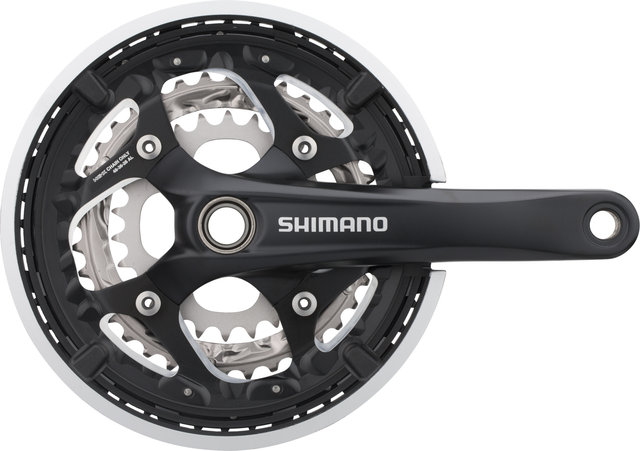

Shimano FC-T551 Crankset w/ Chain Guard
Item number: 29580
The Shimano FC-T551 crankset with chain guard - Integrated look on a touring bike
The Shimano FC-T551 is an aluminium crankset in a stiff 2-piece design for city and touring use. It is equipped with three chainrings and a chain guard ring (104 or 64 mm 4-arm bolt circle diameter) and is compatible with Shimano 10-speed drivetrains. Its simple and robust design integrates perfectly on any touring bike. This crank is also chain case-compatible.
Specifications:
- Application:
- City & Touring
- Compatibility:
- Shimano 3x10-speed
- Chainring Mount:
- 104/64 mm bolt circle diameter, 4-arm
Technical Information:
- Crank Arm Material:
- aluminium
- Chainring Material:
- aluminium / aluminium / steel
- Axle Material:
- steel
- Gradation:
- 24-32-44, 26-36-48
- Crank Arm Length:
- 170.0 mm, 175.0 mm
- Chainline:
- 50 mm
- Q-Factor:
- 181.1 mm
- Compatible BSA Shell Width:
- 68 mm / 73 mm
- Bottom Bracket:

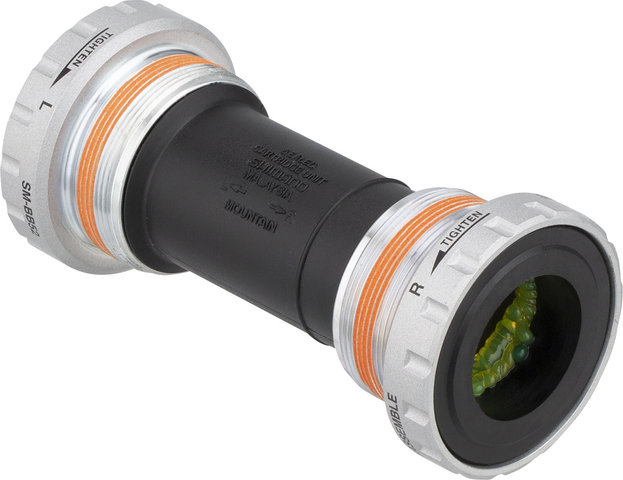

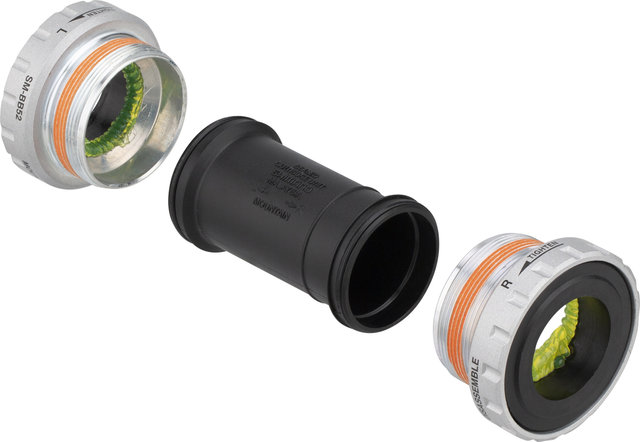

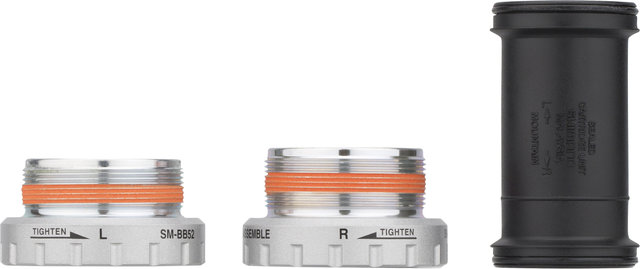

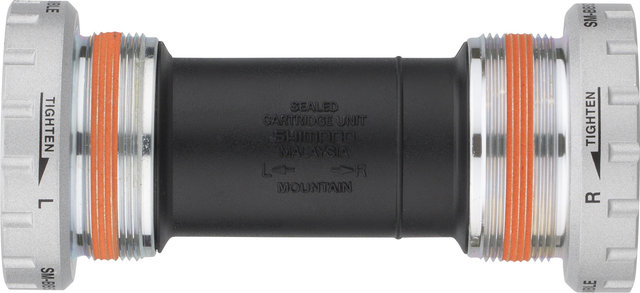

- SM-BB52 Hollowtech II
- Recommended Chain:
- HG-X 10-speed (e.g. CN-HG95)
Compatibility:
Touring 3x10-speed:- Shifter:
- SL-T8000, SL-T780, SL-M780, SL-T670, SL-M670, SL-M591, SL-T6000
- Front Derailleur:
- FD-T8000, FD-T780, FD-T781, FD-T670, FD-T671, FD-T610, FD-T611, FD-T6000
- Chain:
- CN-M981, CN-M980, CN-HG95, CN-HG94, CN-HG75, CN-HG74, CN-HG54
Features:
- two-piece design for precise chain guidance
- specifically shaped teeth
- simple and robust design, integrated look of the chain guard
- crank arms painted, large chainring anodised, medium/small chainring plated
- stainless steel chainring bolts
- compatible with chaincases
Technology:
2-Piece CranksetWith the 2-piece designed cranks from Shimano, the right crank arm is precisely matched to the interaction with the bottom bracket. This increases the stiffness and keeps the weight low. Further spaced bearings also improve strength and contribute to more pedalling efficiency. The precision manufacturing of the bearings ensures easy installation and low maintenance. 2-Piece cranks share a 24mm axle diameter with Hollowtech II cranks, so they are also compatible with Hollowtech II bottom brackets.
Manufacturer Numbers:
- 170.0 mm 24-32-44:
- E-FCT551C424CL
- 170.0 mm 26-36-48:
- E-FCT551C866CL
- 175.0 mm 24-32-44:
- E-FCT551E424CL
- 175.0 mm 26-36-48:
- E-FCT551E866CL

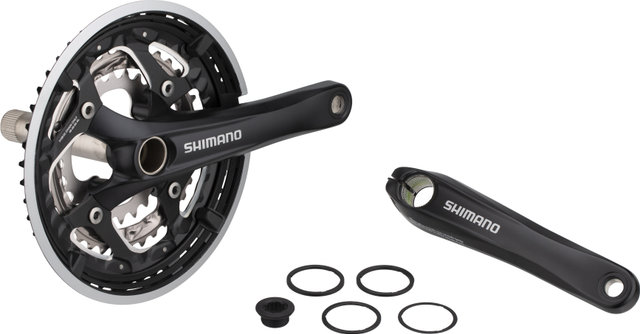

Contents:
- 1 x Shimano FC-T551 crankset (24-32-44 or 26-36-48 tooth)
- 1 x Shimano bottom bracket
- 1 x Shimano chain guard
- 4 x bottom bracket spacers for 68/73 bottom bracket shells
