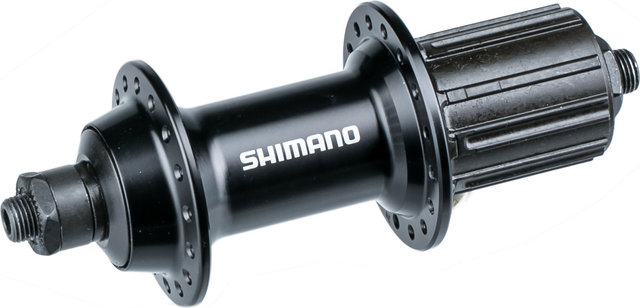

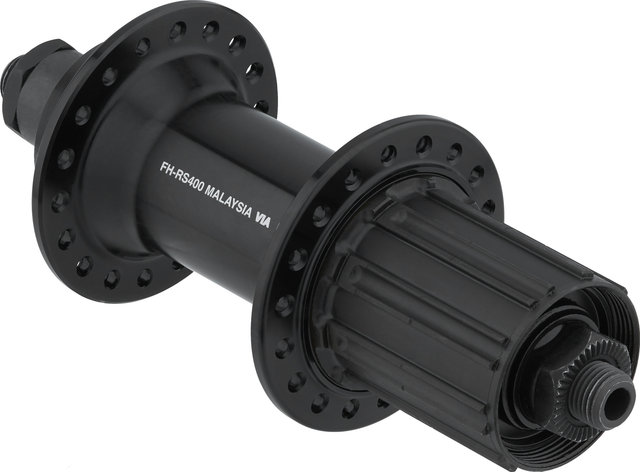

Shimano FH-RS400 Rear Hub

The FH-RS400 Rear Hub by Shimano - Low-friction on road bikes

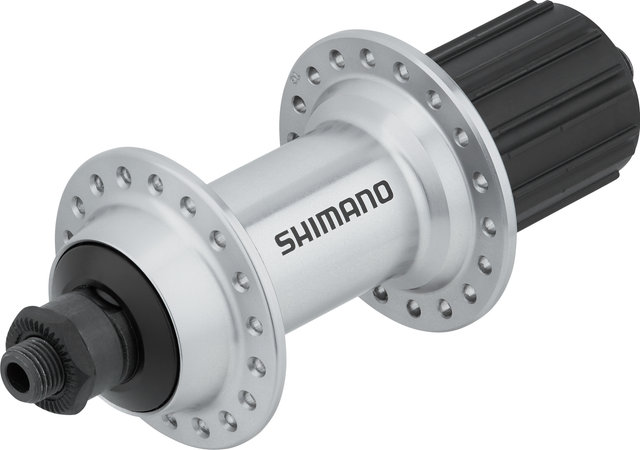

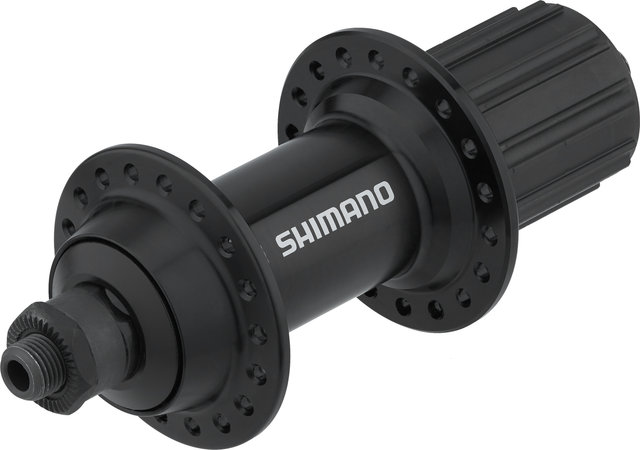

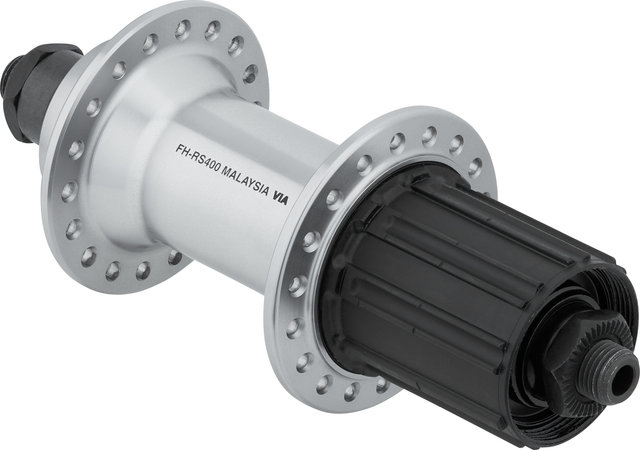

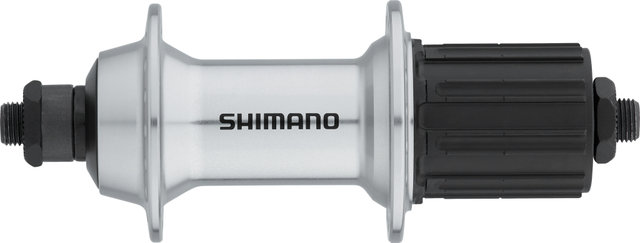

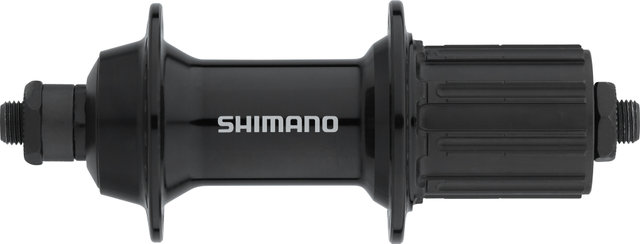

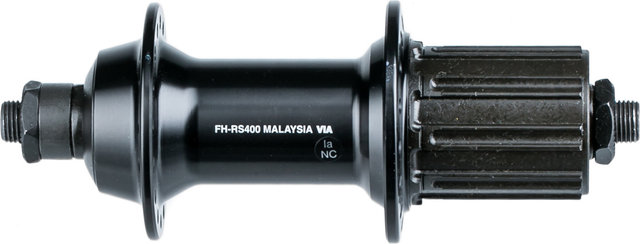

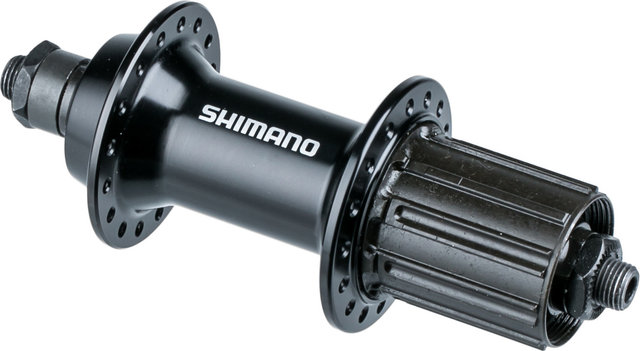

The Shimano FH-RS400 is a rear wheel hub without groupset integration for use on road bikes with classic rim brakes. Thanks to its finely machined, polished cup & cone bearings, ingenious seal and internal grease sleeve, it ensures long-lasting, low-friction operation. The hub body is made of aluminium, axle and freehub are made of steel. The FH-RS400 is available in black and silver to better match your bike.

Specifications:

Application:

Road

Brake Type:

rim brake

Freehub Body Type:

steel

Technical Information:

Body Material:

aluminium

Bearings:

cup & cone

Seals:

contact

Features:

• 141 mm axle length, 10 mm axle diameter
• flange diameter 52.8 mm left, 53.8 mm right
• 9.75 mm offset
• CBN precision machined/polished bearings
• steel axle
• anodised hub shell
• high longevity for sustainable performance
• long-lasting lubrication due to inner seals and internal grease sleeve
• quick release lever made of aluminium
• quick release length 163 mm

Technology:

Cup and Cone Bearings
Angular contact ball bearings of the cup & cone type are superior to sealed cartridge bearings in terms of load carrying capacity, as they distribute lateral and vertical forces better, and thus run particularly smoothly and last a long time. They are also easier to adjust, maintain and replace.

Models:

32 hole:

Over Locknut Dimension:

10 x 130 mm quick release

Spoke Hole Count:

32 hole

Freehub:

Shimano Road

Gearing:

8-/9-/10-/11-/12-speed

Note:

Installing 8-/9-/10-speed cassettes on Shimano freehub bodies requires a 1.85 mm spacer.

Flange Distance (L/R):

56.9 mm (38.2 mm/18.7 mm)

Partial Bolt Circle Diameter (L/R):

44 mm/45 mm

Manufacturer Numbers:

E-FHRS400BYAL (black), E-FHRS400BYAS (silver)

36 hole:

Over Locknut Dimension:

10 x 130 mm quick release

Spoke Hole Count:

36 hole

Freehub:

Shimano Road

Gearing:

8-/9-/10-/11-/12-speed

Note:

Installing 8-/9-/10-speed cassettes on Shimano freehub bodies requires a 1.85 mm spacer.

Flange Distance (L/R):

56.9 mm (38.2 mm/18.7 mm)

Partial Bolt Circle Diameter (L/R):

44 mm/45 mm

Manufacturer Numbers:

E-FHRS400AYAL (black), E-FHRS400AYAS (silver)

Contents:

• 1 x Shimano FH-RS400 rear hub

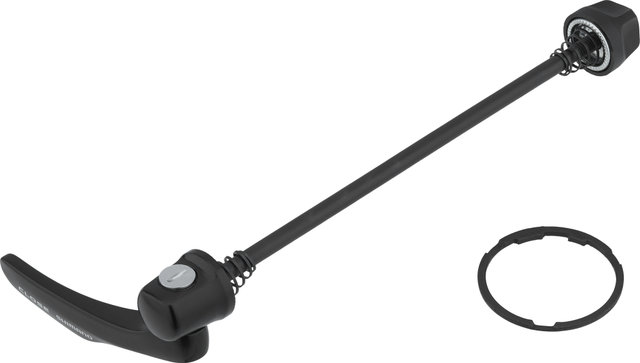

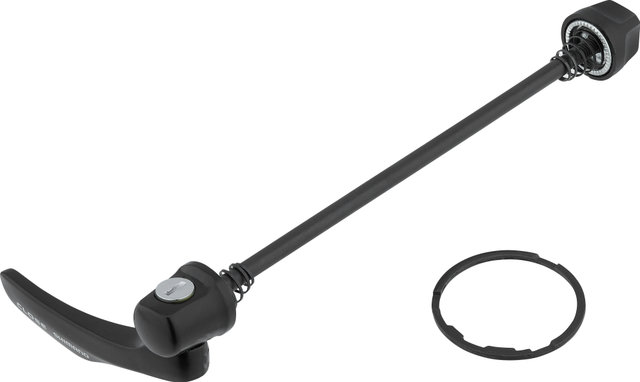

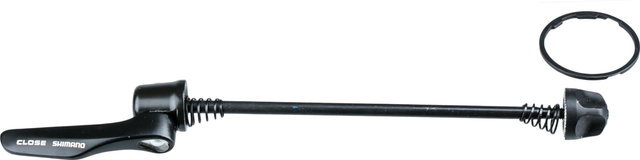

• 1 x Shimano quick release
• 1 x spacer
