Shimano GRX BR-RX400 + BL-RX600 Disc Brake
Item number: 72037
Shimano GRX BR-RX400 + BL-RX600 disc brake - if you don't need a shift lever on the left side
The Shimano GRX BR-RX400 + BL-RX600 disc brake is perfect for 1x setups. Not for nothing do these uncomplicated drivetrains enjoy particular popularity among Gravel riders. The BL-RX600 is mounted on the left. It has a Gravel-specific lever with anti-slip texture and a special ergonomic design. This gives you even better control over your bike off-road. The GRX BR-RX400 brake caliper comes in the Shimano flat-mount design, which has proven itself in recent years as the standard for Road disc brakes because of its user-friendliness. It convinces with its excellent thermal management and easy installation.
Are you interested in the GRX series? Then have a look at our Shimano gravel site. You will find many more products there.
Specifications:
- Series:
- GRX RX600
- Application:
- Gravel, Cyclocross, City & Touring
- Type:
- hydraulic, 2 pistons
- Actuation:
- mineral oil
- Hose:
- SM-BH90-JK-SSR
- Front Hose Length:
- 1000 mm

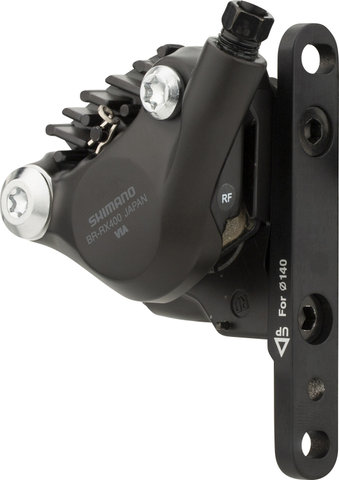

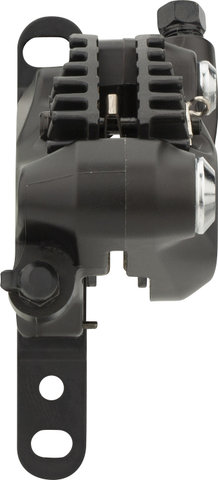

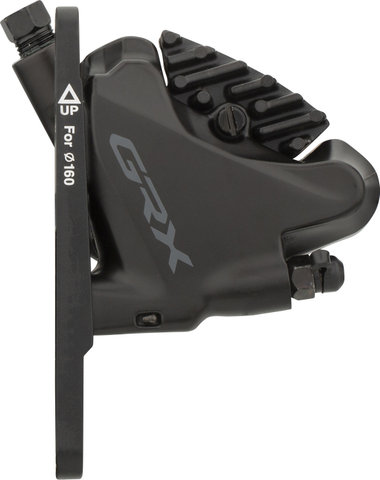

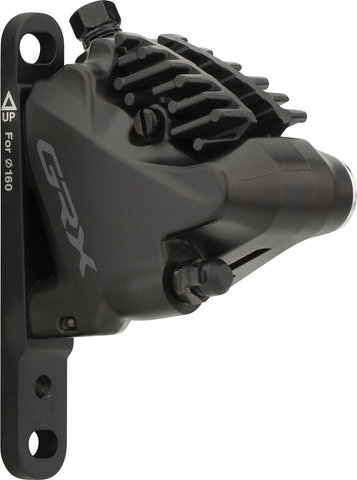

Technical Information - Caliper:
- Mount:
- flat mount
- Pads:
- resin with cooling fins
- Design:
- 2-piece
- Calliper Material:
- Aluminium
- Piston Material:
- resin
- Hose Connection:
- straight

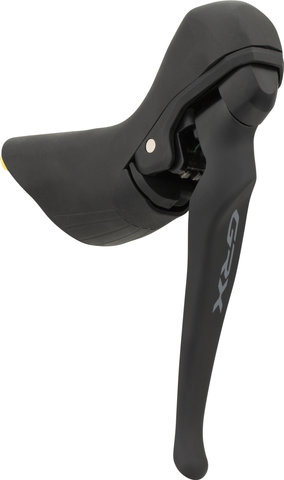

Technical Information - Lever:
- Adjustment Options:
- reach adjust (bolt)
- Mount:
- clamp (closed)
- Design:
- left (side-specific)
- Brake Lever Material:
- Aluminium
- Brake Lever Housing Material:
- Composite
- Hose Connection:
- straight
Compatibility:
Brake Caliper:- Mounting Position:
- front
- Brake Rotor:
- 140 mm, 160 mm, 180 mm (recommended: SM-RT64)
- Pads:
- organic and sintered; with narrow pad shape; standard and Ice Tech brake pads
Brake Lever:
- Mounting Position:
- left (for rear brake caliper)
- Clamp Diameter:
- 23.8 - 24.2 mm
- Additional Brake Lever:
- BL-RX812
Features:
Brake Caliper:- excellent heat dissipation
- practical tool access
- trouble-free maintenance
- easy to change wheels
- clean bleed system
- perfect for rough terrain
- resin pistons
- painted
- steel bolts (4 mm)
Brake Lever:
- lever and hold ergonomics adapted to gravel
- anti-slip brake lever, painted
- more control on mixed terrain
- funnel venting with M7 funnel
Technology:
One Way BleedingOne Way Bleeding is a technique used on Shimano calipers that facilitates brake bleeding. The hose routing has been optimised so that no air bubbles remain in the brake calliper. In combination with the funnel, the brake can be bled cleanly and easily.
Manufacturer Number:
- Front:
- I-RX4002DLF6SC100

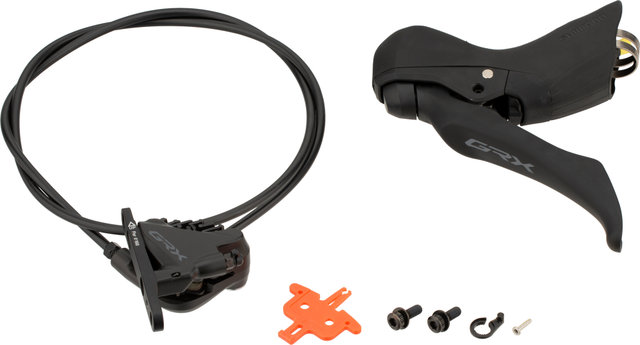

Contents:
- 1 x Shimano GRX BR-RX400 + GRX BL-RX600 disc brake, front
- 1 x Shimano SM-BH90-JK-SSR brake hose, 1000 mm (front)
- 1 x pairs Shimano resin brake pads with cooling fins
- 1 x disc brake adapter for front 140/160 + 160/180 mm
- 1 x hose connection set w/ olives and pins
- 2 x type A caliper bolts (front)
- ready for installation, filled, bleeding is recommended after installation
Order Together:
- TL-BH61 tool for insert installation
