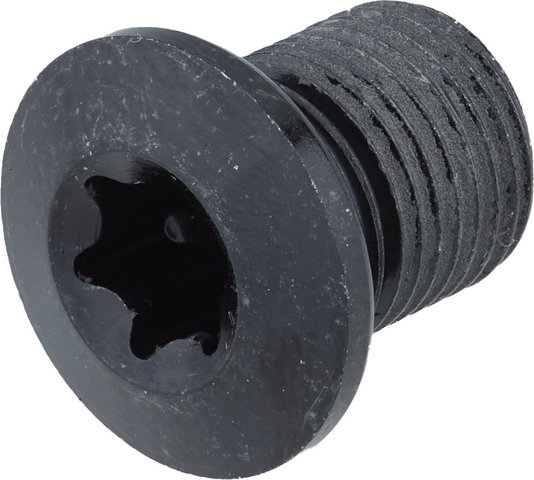

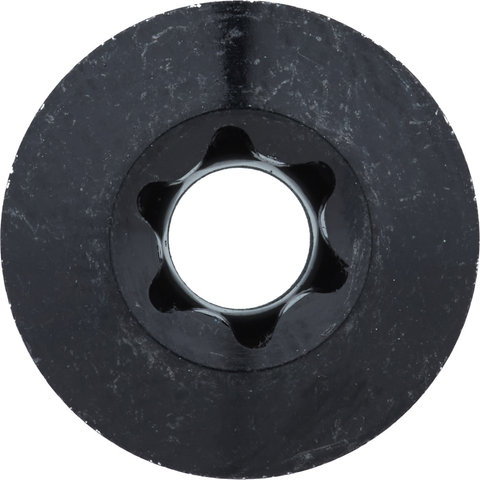

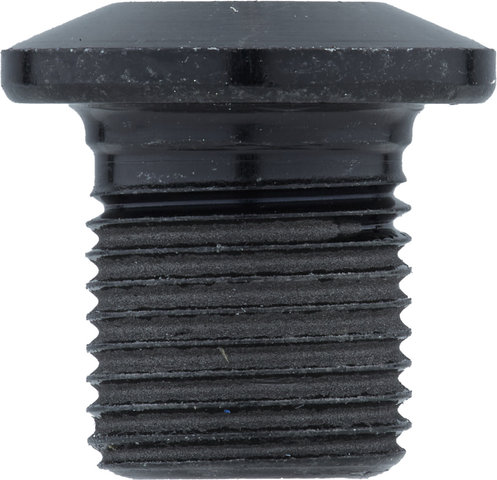

Shimano GRX FC-RX810 / FC-RX820 4-arm Chainring Bolts

Shimano Chainring Bolts 4-arm GRX FC-RX810 - For 1x and 2x version

These four chainring bolts are spare parts for the Shimano GRX FC-RX810 11-speed and FC-RX820 12-speed crankset for gravel use. They fit both the version with two chainrings and the single crank. The screws are made of aluminium and have a 9 mm long M8 thread. Tighten them firmly with a Torx T30 wrench 12 to 16 Nm.

Specifications:

Type:

Chainring Bolts

Threads:

M8

Drive:

Torx 30

Material:

aluminium

Technical Information:

Thread Length:

9 mm

Torque max.:

16 Nm

Compatibility:

• GRX FC-RX820-1
• GRX FC-RX820-2
• GRX FC-RX810-11-1
• GRX FC-RX810-11-2
• GRX FC-RX810-11-1-LE
• GRX FC-RX810-11-2-LE

Manufacturer Number:

Y0JR98050

Contents:

• 4 x Shimano FC-RX810 chainring bolts
