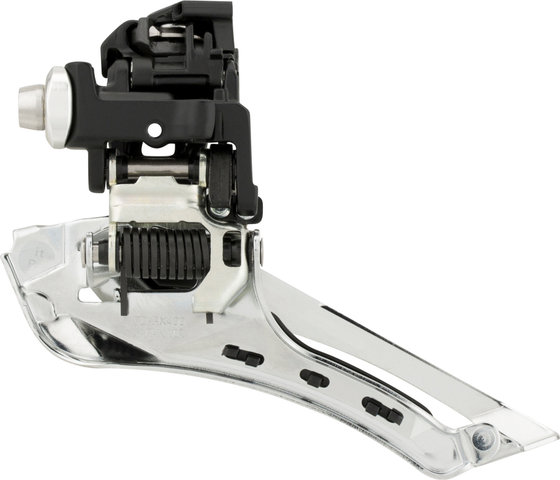

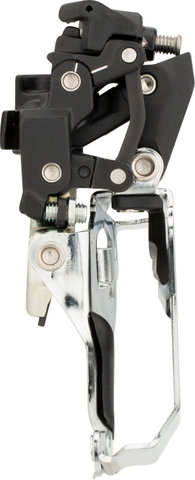

Shimano GRX FD-RX400 2-/10-speed Front Derailleur

The Shimano GRX FD-RX400 front derailleur - 2x10-speed up to date

With the Shimano GRX FD-RX400 front derailleur a 2x10-speed crank now shifts more easily than ever before. Its construction meets the ergonomic performance curve and provides a natural feeling of pressure. The FD-RX400 is also completely up to date when it comes to tyre clearance thanks to the 3.5 outer chainline. In addition, the integrated tension adjustment simplifies the installation of the front derailleur.

Are you interested in the GRX series? Then have a look at our Shimano gravel site. You will find many more products there.

Specifications:

Series:

GRX RX400

Application:

Gravel, Cyclocross, City & Touring

Gearing:

2x (combined w/ 10-speed)

Chainstay Angle:

63-66°

Chainline:

47 mm

Chainring Size (max.):

46-tooth

Capacity:

16-tooth

Cable Routing:

down pull

Movement:

down-swing

Mount:

braze-on

Technical Information:

Outer Body Material:

composite material (GFRP)

Inner Body Material:

steel

Cage Material:

steel

Compatibility:

Shifter:

ST-4700, ST-RS405, SL-4700, ST-4720, ST-4725, ST-RX400

Crank:

FC-RX600-10

Chain:

CN-M981, CN-M980, CN-HG95, CN-HG94, CN-HG75, CN-HG74, CN-HG54

Clamp Adapter:

SM-AD91

Tyre Width:

max. 42 mm

Features:

• ergonomic power curve thanks to innovative design, easier shifting in front
• integrated tension adjustment, precise and simple
• a natural shift feeling
• +3.5 mm chainline compared to conventional Road front derailleurs
• more cable routing options
• 7 joint bushings
• painted outer parallelogram, plated inside, chrome-plated cage plates

Manufacturer Number:

I-FDRX400F

Contents:

• 1 x Shimano GRX FD-RX400 front derailleur
