Shimano GRX RX810 1x11 40 Groupset

The Shimano GRX RX810 1x11 groupset - made for adventurers

The Shimano GRX RX810 1x11 groupset is the result of two years of close collaboration with Gravel enthusiasts from around the world. It consists of a 1x crank with a 40 tooth chainring, +rear derailleur, disc brake with STI right and left shift levers, chain and cassette (Ultegra or MTB). Shimano didn't want to tell the Gravel specialists what to ride, but asked them what they wanted instead. Many unpaved paths were explored, off-road races contested, bikepacking tours undertaken, a lot of dust swallowed and mud bath galore. The result is the world's first Gravel-specific component groupset, the GRX by Shimano.

Are you interested in the GRX series? Then have a look at our Shimano gravel site. You will find many more products there.

Specifications:

Series:

GRX RX810

Application:

Gravel, Cyclocross, City & Touring

Shifters & Derailleurs:

11-speed (mechanical)

Brakes:

disc, hydraulic (flat mount)

Components:

Crank:

170.0 mm, 172.5 mm, 175.0 mm (40 teeth)

Cassette:

11-30, 11-32, 11-34, 11-40, 11-42

Rear Derailleur:

short (mid) cage (11-30, 11-32, 11-34), long cage (11-40, 11-42)

Additional Components Needed:

• The bottom bracket is not included. Shimano recommends SM-BBR60 or SM-BB72-41B Pressfit Hollowtech II.
• The RT-MT800 (140, 160 or 180 mm) brake rotor must also be ordered separately.
• For the 11-40 and 11-42 versions, an additional 1.85 mm spacer is required if the cassette is to be mounted on a road freehub. (For the 11-34 version, this spacer is supplied)
• if necessary, FM-to-FM brake adapter SM-MA-R160 D/D for 160 mm brake rotor with 140 mm FM frame or SM-MA-R160 D/D for 180 mm brake rotor with 160 mm FM frame
• The additional brake lever BL-RX812 is also available as an option. - Optional brake caliper bolts for 10/15/20/30/35 mm frame diameters are also available.

Contents:

The Shimano GRX RX810 groupset includes:

• 1 x Shimano GRX crankset (FC-RX810-1)

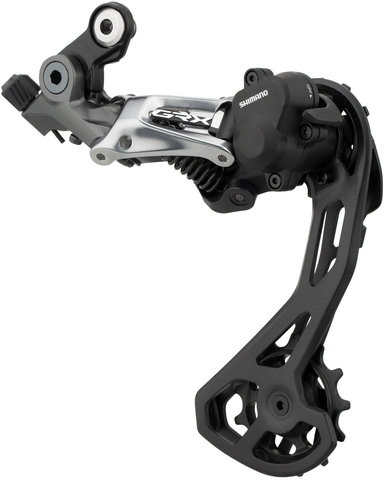

• 1 x Shimano GRX Shadow Plus rear derailleur (RD-RX810 or RD-RX812)

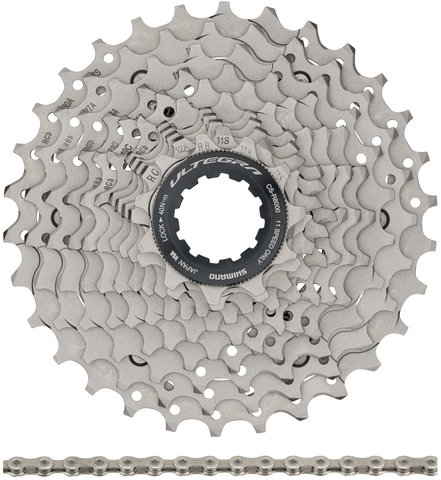

• 1 x Shimano Ultegra cassette (CS-R8000) or CS-HG800-11 (11-34) or XT CS-M8000
• 1 x Shimano Ultegra / XT Quick-Link chain (CN-HG701-11)

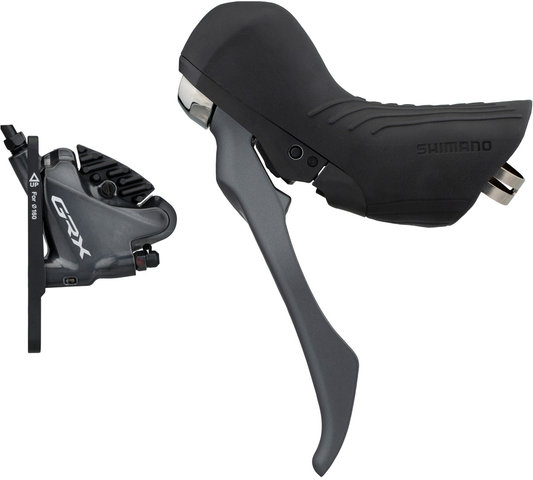

• 1 x Shimano GRX BR-RX810 + GRX BL-RX810 disc brake, front
• 1 x Shimano GRX BR-RX810 + GRX ST-RX810 disc brake, rear
• 1 x Shimano SM-BH90-JK-SSR brake hose, 1000 mm (front)
• 1 x Shimano SM-BH90-JK-SSR brake hose, 1700 mm (rear)
• 2 x pairs Shimano brake pads
• 1 x front disc brake adapter
• 2 x hose connection set w/ olives and pins
• 2 x type A caliper bolts (front)
• 2 x caliper bolts for 25 mm frame diameters (rear)
• 1 x Shimano 1.85 mm cassette spacer for road freehub (only for 11-34)
• 1 x shifter cable, 2200 mm (rear)
• 1 x cable housing, 600 + 300 mm (rear)
• brake set ready for assembly, filled, bleeding is recommended after assembly
