Shimano GRX STI ST-RX600 2-/11-speed Shift/Brake Lever

The Shimano GRX ST-RX600 shift/brake lever- smooth shifting and braking

The Shimano GRX ST-RX600 is a shift/brake lever with Dual Control Technology (STI) for hydraulic disc brakes. Its lever has an anti-slip surface and its shape has been adapted to the ergonomic requirements of Gravel riding. The smooth shift function has been taken from the Shimano top-lever groupsets.

Are you interested in the GRX series? Then have a look at our Shimano gravel site. You will find many more products there.

Specifications:

Series:

GRX RX600

Application:

Gravel, Cyclocross, City & Touring

Gearing:

2x, 11-speed

Shifting System:

mechanical

Brake Type:

hydraulic

Technical Information:

Brake Lever Material:

aluminium

Lever Body Material:

composite

Clamp Material:

steel

Hose:

SM-BH90-JK-SSR, SM-BH90-J-SSR (not included)

Actuation:

mineral oil

Mount:

clamp (closed)

Reach Adjust:

bolt

Adjustment Options:

Reach Adjust

Compatibility:

Clamp Diameter:

23.8 - 24.2 mm

Front Derailleur:

FD-R9100, FD-R8000, FD-5801, FD-R7000, FD-9000, FD-6800, FD-5800, FD-U5000, FD-RX810

Crank:

FC-R9100, FC-R9100-P, FC-R8000, FC-R7000, FC-RS510, FC-9000, FC-6800, FC-5800, FC-RS500, FC-U5000-2, FC-RX810-2, FC-RX600-11

Rear Derailleur:

RD-R9100, RD-R8000, RD-RX800, RD-9000, RD-6800, RD-5800, RD-R7000, RD-U5000, RD-RX810, RD-RX812*

Cassette:

CS-R9100, CS-9000, CS-6800, CS-5800, CS-R8000, CS-HG800-11, CS-R7000, CS-HG700-11, CS-M8000-11*, CS-M7000-11*, CS-M5100-11*

Chain:

CN-9000, CN-6800, CN-HG901-11, CN-HG701-11, CN-HG601-11, CN-LG500

Brake Caliper:

BR-RX810 (recommended), BR-R8070, BR-R9170, BR-R9270, BR-R9170, BR-R8170, BR-R7170, BR-R7070, BR-RS785, BR-RX820, BR-RX820-LE, BR-RX400, BR-4770

Additional Brake Lever:

BL-RX812

* only 11-speed (right) with 1x11-speed

Features:

• Dual Control Lever (11-speed) for hydraulic disc brakes
• Gravel-inspired lever and body ergonomics
• anti-slip brake lever, painted
• more control on mixed terrain
• smooth shifts like the of the best groupsets
• funnel venting with M7 funnel (TL-BR002)
• Optislick inner cable with a minimal galvanic coating for more efficient cable routing and corrosion resistance
• OT-SP41 cable housing from lever, OT-RS900 to rear derailleur (not included)

Technology:

STI Dual Control
Shimano Total Integration (STI) means the combination of braking and shifting functions in one lever, which increases safety when riding. By refining the technology, it became possible to make shifting so smooth at the front and rear that they can be triggered with just one finger. Shimano calls such levers Dual Control Levers (DCL).

Models:

2-speed:

Mount:

left

Gearing:

2x

Manufacturer Number:

I-STRX600LI

11-speed:

Mount:

right

Gearing:

11-speed

Manufacturer Number:

I-STRX600RBI

Contents:

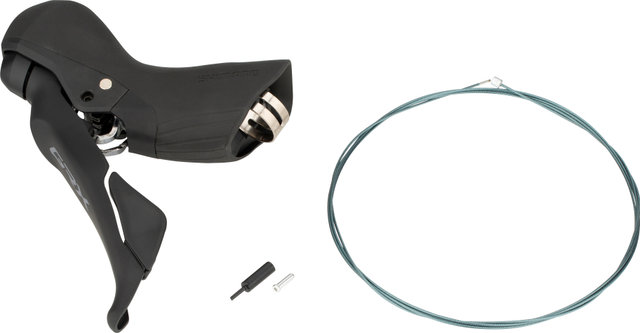

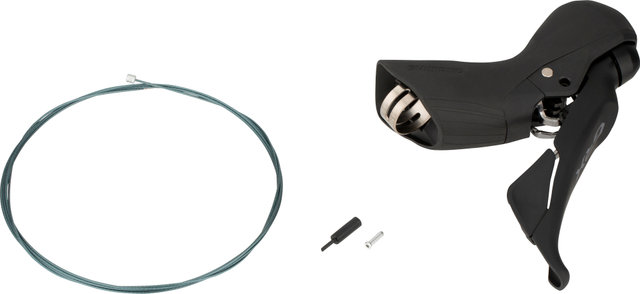

• 1 x Shimano GRX ST-RX600 shift/brake lever
• 1 x Shimano shift cable, 1800 mm or 2200 mm
