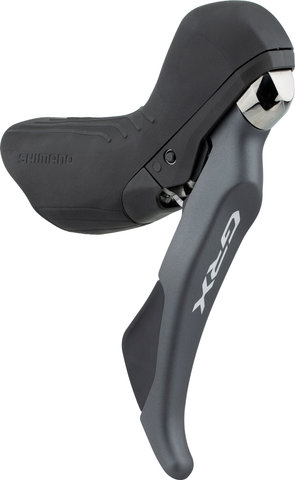

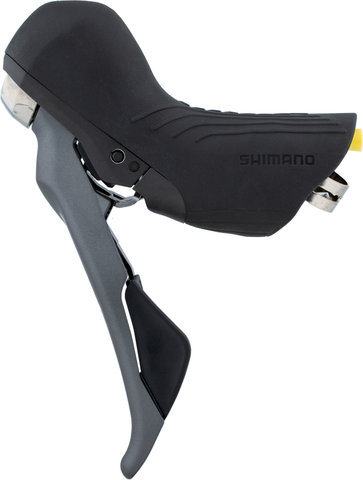

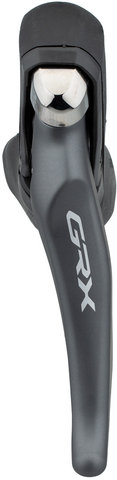

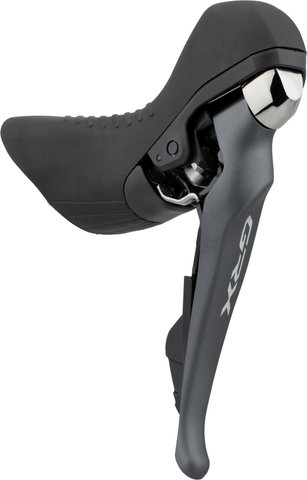

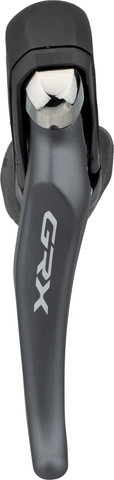

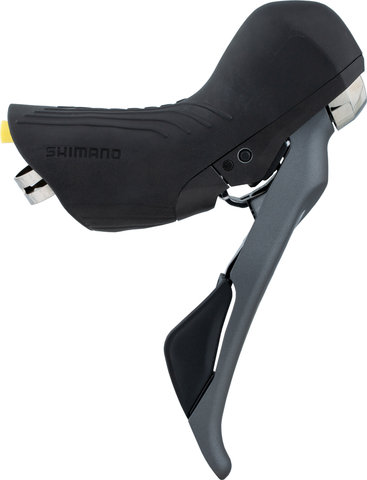

Shimano GRX STI ST-RX810 2-/11-speed Shift/Brake Lever

The Shimano GRX ST-RX810 shift/brake lever - with Servo Wave

The Shimano GRX ST-RX810 shift/brake lever features Servo Wave technology - a novelty in the Road bike sector. This ensures more bike control on changing surfaces. Its lever and grip ergonomics were developed in collaboration with Gravel specialists from all over the world; a texturing of the brake lever helps to increase grip. The smooth-running function of the shifter is well-known from the Shimano top-level groupsets.


Are you interested in the GRX series? Then have a look at our Shimano gravel site. You will find many more products there.

Specifications:

Series:

GRX RX810

Application:

Gravel, Cyclocross, City & Touring

Gearing:

2x, 11-speed

Shifting System:

mechanical

Type:

hydraulic, 2 pistons

Technical Information:

Brake Lever Material:

aluminium

Lever Body Material:

composite

Clamp Material:

steel

Hose:

SM-BH90-JK-SSR (not included)

Actuation:

mineral oil

Mount:

clamp (closed)

Reach Adjust:

bolt

Adjustment Options:

reach adjust, contact point

Compatibility:

Clamp Diameter:

23.8 - 24.2 mm

Front Derailleur:

FD-R9100, FD-R8000, FD-5801, FD-R7000, FD-9000, FD-6800, FD-5800, FD-U5000, FD-RX810

Crank:

FC-R9100, FC-R9100-P, FC-R8000, FC-R7000, FC-RS510, FC-9000, FC-6800, FC-5800, FC-RS500, FC-U5000-2, FC-RX810-2, FC-RX600-11

Rear Derailleur:

RD-R9100, RD-R8000, RD-RX800, RD-9000, RD-6800, RD-5800, RD-R7000, RD-U5000, RD-RX810, RD-RX812*

Cassette:

CS-R9100, CS-9000, CS-6800, CS-5800, CS-R8000, CS-HG800-11, CS-R7000, CS-HG700-11, CS-M8000-11*, CS-M7000-11*, CS-M5100-11*

Chain:

CN-9000, CN-6800, CN-HG901-11, CN-HG701-11, CN-HG601-11, CN-LG500

Brake Caliper:

BR-RX810 (recommended), BR-R9270, BR-R9170, BR-R8170, BR-R8070, BR-R7170, BR-R7070, BR-RS785, BR-RX820, BR-RX820-LE, BR-RX400, BR-4770

Additional Brake Lever:

BL-RX812

* only 11-speed (right) with 1x11-speed

Features:

• lever and grip ergonomics designed for Gravel
• multi-function lever reduces stress and distraction
• anti-slip brake lever, painted
• proven light shifts of the Shimano top groupsets
• faster brake contact thanks to Servo Wave
• polymer-coated shifter cable
• OT-SP41 cable housing, OT-RS900 to rear derailleur (not included)
• funnel venting with M7 funnel (TL-BR002)

Technology:

STI Dual Control
Shimano Total Integration (STI) means the combination of braking and shifting functions in one lever, which increases safety when riding. By refining the technology, it became possible to make shifting so smooth at the front and rear that they can be triggered with just one finger. Shimano calls such levers Dual Control Levers (DCL).

Servo Wave
Shimano Servo Wave technology optimises the travel of your brake levers. During the braking process, the brake pads are guided quickly to the brake rotor with very short lever travel. The greater part of the lever travel is reserved for the actual braking force. In this way, you can apply your braking power in a more targeted manner and use it more effectively.

Models:

2-speed:

Mount:

left

Gearing:

2x

Manufacturer Number:

I-STRX810LI

11-speed:

Mount:

right

Gearing:

11-speed

Manufacturer Number:

I-STRX810RBI

Contents:

• 1 x Shimano GRX ST-RX810 shift/brake lever
• 1 x Shimano shift cable, 1800 mm or 2200 mm
