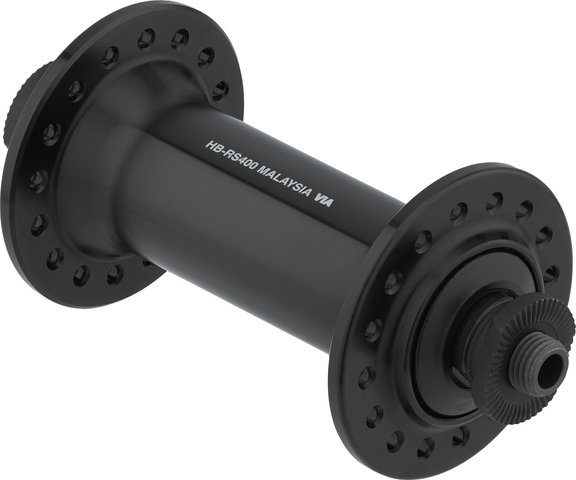

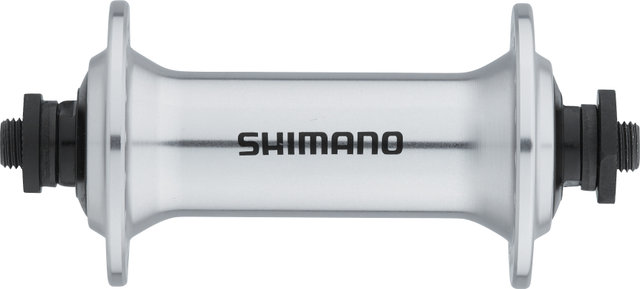

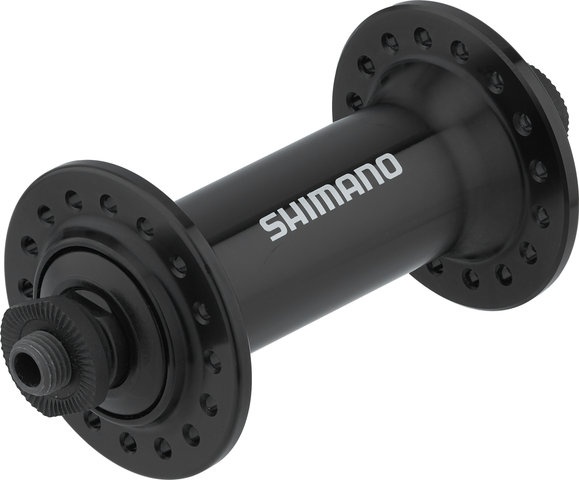

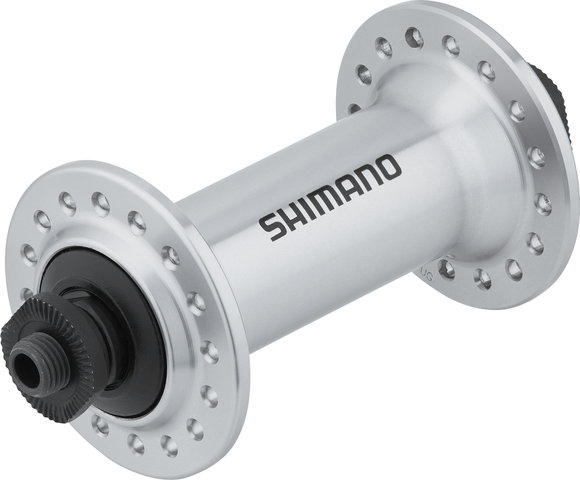

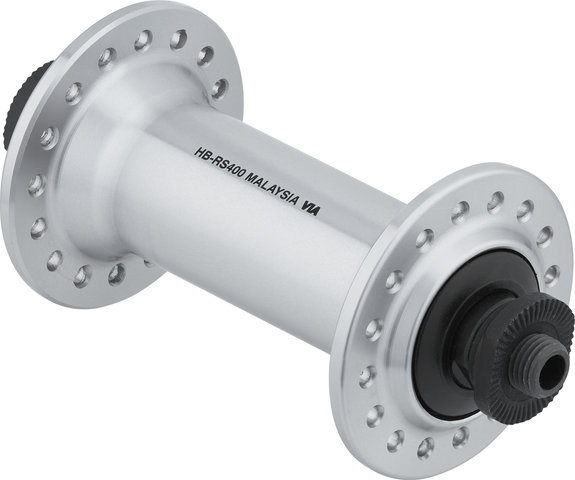

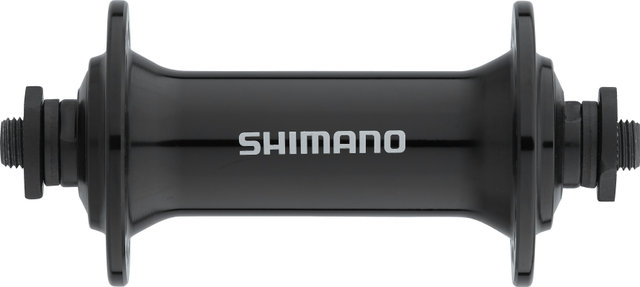

Shimano HB-RS400 Front Hub
Item number: 43866
The HB-RS400 Front Hub by Shimano - For road bikes
The Shimano HB-RS400 is a groupless front hub for road bikes with classic rim brakes. It has a finely machined, polished cup & cone bearing, contact seals and an internal grease sleeve. The hub shell is made of anodised aluminium, the axle of steel. A quick release with aluminium lever is included. Choose between a black and a silver version.
Specifications:
- Application:
- Road
- Brake Type:
- rim brake
Technical Information:
- Body Material:
- aluminium
- Bearings:
- cup & cone
- Seals:
- contact
Features:
- 108 mm axle length, 9 mm axle diameter
- 48.4 mm flange diameter
- 0 mm offset
- CBN precision machined/polished bearings
- steel axle
- anodised hub shell
- high longevity for sustainable performance
- long-lasting lubrication due to inner seals and internal grease sleeve

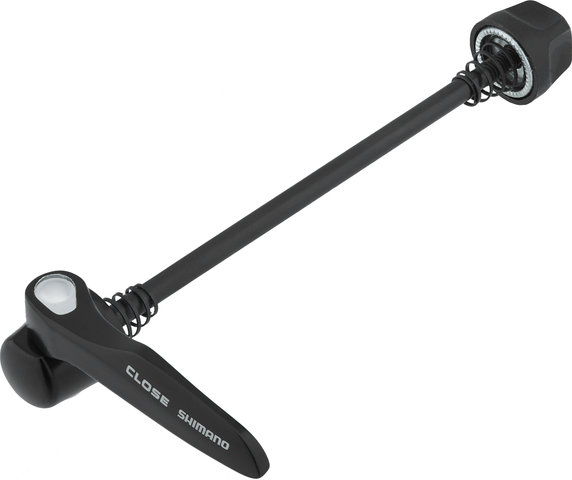

- quick release lever made of aluminium
- quick release length 133 mm
Technology:
Cup and Cone BearingsAngular contact ball bearings of the cup & cone type are superior to sealed cartridge bearings in terms of load carrying capacity, as they distribute lateral and vertical forces better, and thus run particularly smoothly and last a long time. They are also easier to adjust, maintain and replace.
Models:
32 hole:- Over Locknut Dimension:
- 9 x 100 mm quick release
- Spoke Hole Count:
- 32 hole
- Flange Distance (L/R):
- 71.6 mm (35.8 mm/35.8 mm)
- Partial Bolt Circle Diameter (L/R):
- 38 mm/38 mm
- Manufacturer Numbers:
- E-HBRS400BL (black), E-HBRS400BS (silver)
36 hole:
- Over Locknut Dimension:
- 9 x 100 mm quick release
- Spoke Hole Count:
- 36 hole
- Flange Distance (L/R):
- 71.6 mm (35.8 mm/35.8 mm)
- Partial Bolt Circle Diameter (L/R):
- 38 mm/38 mm
- Manufacturer Numbers:
- E-HBRS400AL (black), E-HBRS400AS (silver)
Contents:
- 1 x Shimano HB-RS400 front hub
- 1 x Shimano quick release
