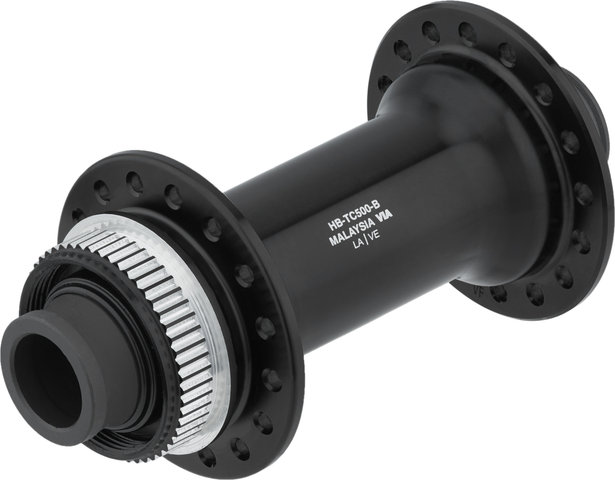

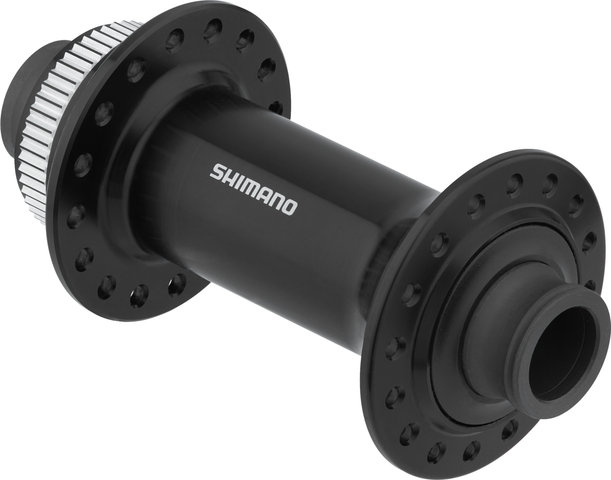

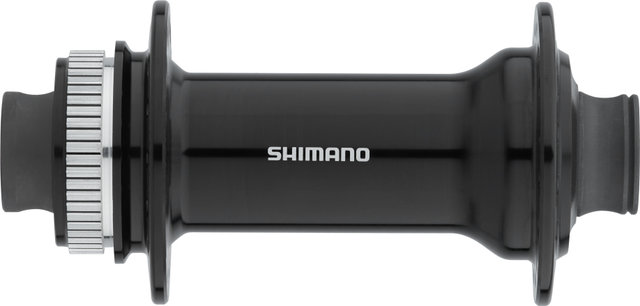

Shimano HB-TC500-15-B Center Lock Disc Front Hub for 15 mm Thru-Axles

HB-TC500-15-B Boost front hub from Shimano - for MTBs and touring bikes with and without a motor

HB-TC500-15-B is a high-performance front hub for mountain and touring bikes with center lock brake rotors and 15 x 110 mm Boost width at the front. Shimano recommends them as a supplement for 10- to 12-speed drivetrains at SLX and Deore level. However, it also fits CUES 9-speed, 10-speed and 11-speed drivetrains or 8-speed setups at Acera and Altus level. The hub is approved for use on e-bikes and is recommended by Shimano for the EP8 and EP6 series. It features an appropriate ratio between weight and stiffness as well as solid cartridge bearings. A double sealing system extends the service life. The hub body is made of lightweight aluminium with an anodised finish. Use this hub for spoke diameters of 2 or 2.3 mm.

Guidelines for Replacing E-bike Components:

Before you replace components on your e-bike, please read through the guidelines for component replacement for CE-marked e-bikes/pedelecs with pedal assistance.

Specifications:

Application:

All Mountain, City & Touring

Brake Type:

Center Lock Disc

Wheel Standard:

Boost

Technical Information:

Body Material:

aluminium

Bearings:

cartridge

Seals:

labyrinth and contact seals

Spoke Hole Diameter:

2.0 mm / 2.3 mm

Features:

• Center Lock Disc front hub for thru-axle mounting (15 x 110 mm, Boost)
• recommended for SLX 12-speed and Deore 10- to 12-speed drivetrains
• recommended for CUES 9- to 11-speed drivetrains and Acera / Altus 8-speed
• approved for e-bikes: recommended for EP8 (EP801 and EP800), EP6
• reliable performance
• stiff, lightweight E-Thru design
• double sealed
• easy brake rotor mounting due to toothing and lockring (not included in delivery)
• compatible with 13G and 14G spokes
• 5.3 mm offset
• flange diameter on both sides 52.8 mm
• anodised hub shell

Technology:

E-Thru
E-Thru is a tool-free thru-axle system from Shimano that optimises the stiffness-to-weight ratio and ensures easy handling via its reliable internal cam mechanism. It is characterised by a high torsion resistance and thus also supports cornering at high speed. E-Thru thru-axle hubs and thru-axles are available in the corresponding over locknut dimensions for front and rear.

Models:

15 x 110 mm / 32 hole:

Over Locknut Dimension:

15 x 110 mm thru-axle

Spoke Hole Count:

32 hole

Flange Distance (L/R):

70.2 mm (29.8 mm/40.4 mm)

Partial Bolt Circle Diameter (L/R):

44 mm/44 mm

Manufacturer Number:

EHBTC50015BB

Contents:

• 1 x Shimano HB-TC500-15-B front hub
