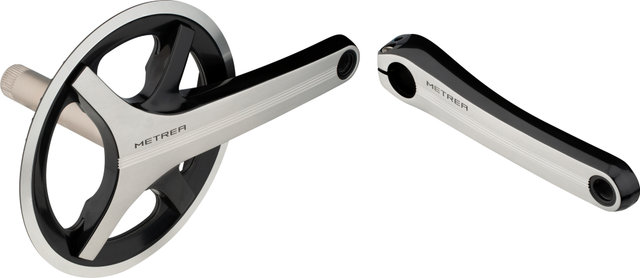

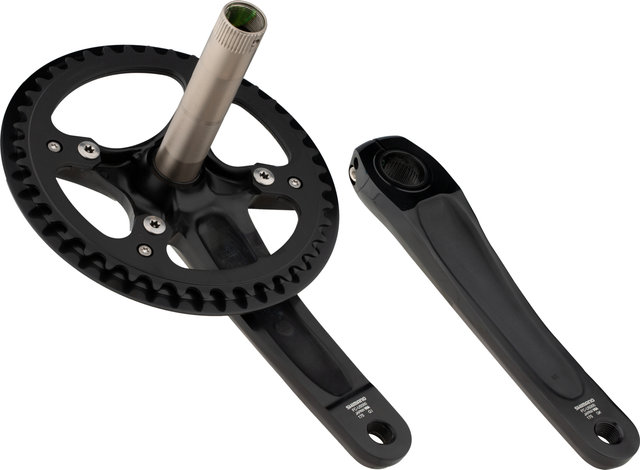

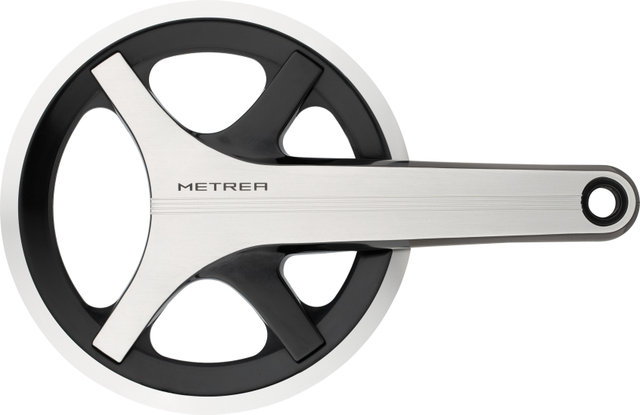

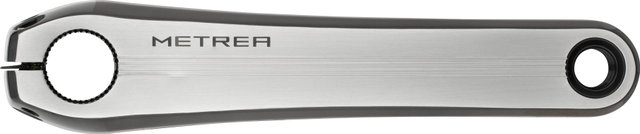

Shimano Metrea FC-U5000-1 Crankset w/ Chain Guard

The Metrea FC-U5000-1 crankset by Shimano with chain guard - Cruise elegantly through the city

The Metrea FC-U5000-1 11-speed crankset was specially designed by Shimano for urban cycling. It impresses with a reliable, very quiet shifting and blends wonderfully into the overall appearance of an urban bike thanks to its elegant, uncluttered look. As a crank with only one chainring, it is particularly suitable for flat, predictable terrain and scores points with its straightforward operation. Their 2-piece construction also ensures optimum stiffness and power transfer with the lowest possible weight. Both crank arms and chainring as well as the stylishly integrated chainguard are made of lightweight aluminium.

Specifications:

Application:

City

Compatibility:

Shimano 1x11-speed

Chainring Mount:

96 mm bolt circle diameter, 4-arm asymmetrical

Technical Information:

Series:

Metrea U5000

Crank Arm Material:

aluminium

Chainring Material:

aluminium

Axle Material:

steel

Gradation:

42-tooth

Crank Arm Length:

170.0 mm, 175.0 mm

Chainline:

46.6 mm

Q-Factor:

158 mm

Axle Diameter:

24 mm

Compatible BSA Shell Width:

68 mm

Recommended Bottom Bracket:

SM-BBR60 or SM-BB72-41B Press Fit Hollowtech II (not included)

Recommended Chain:

HG super narrow 11-speed (e.g. CN-HG601-11)

Compatibility:

Bottom Bracket:

BB-R9100, SM-BB9000, SM-BBR60, SM-BB6700, SM-BB5700, BB-RS501, BB-RS500, SM-BB4600, SM-BB92-41B, SM-BB72-41B, SM-BB71-41B, BB-RS500-PB

Chain:

CN-9000, CN-6800, CN-HG901-11, CN-HG701-11, CN-HG601-11, CN-LG500

Note:

With chainrings Y-1RR32000 and Y-1RR98050 (32-46 T) also 2-speed (chainline 43.5 mm).

Features:

• fun riding everywhere in urban environments thanks to smooth, even pedalling
• drivetrain options for any urban environment: 42 T for optimum urban gradation
• tidy, simple design and reliable performance
• durable with rust-protected material
• designed for casual cycling clothing
• with integrated chain guard made of anodised aluminium
• anodised crank arms and chainring
• stainless steel chainring bolts

Technology:

2-Piece Crankset
With the 2-piece designed cranks from Shimano, the right crank arm is precisely matched to the interaction with the bottom bracket. This increases the stiffness and keeps the weight low. Further spaced bearings also improve strength and contribute to more pedalling efficiency. The precision manufacturing of the bearings ensures easy installation and low maintenance. 2-Piece cranks share a 24mm axle diameter with Hollowtech II cranks, so they are also compatible with Hollowtech II bottom brackets.

Manufacturer Numbers:

170.0 mm 42 tooth:

I-FCU5000CXB2C

175.0 mm 42 tooth:

I-FCU5000EXB2C

Contents:

• 1 x Shimano Metrea FC-U5000 crankset (42 tooth)
• 1 x Shimano crank bolt
• 1 x Shimano chain guard
