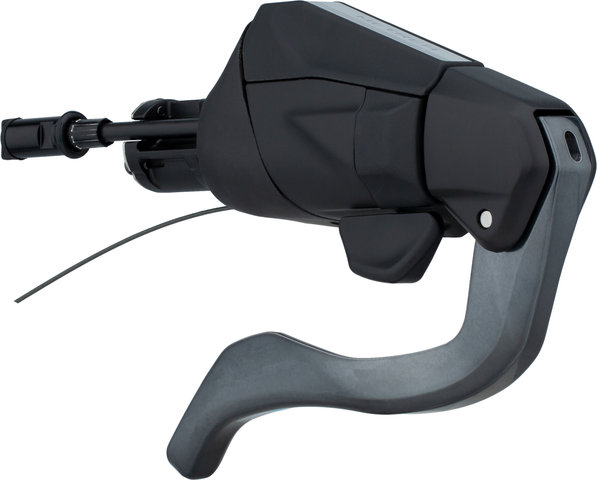

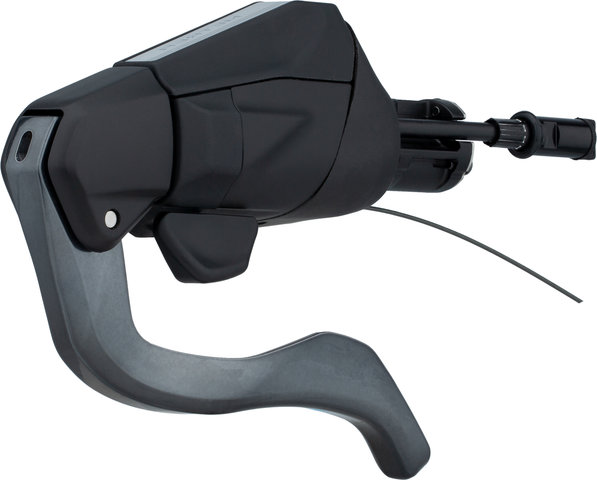

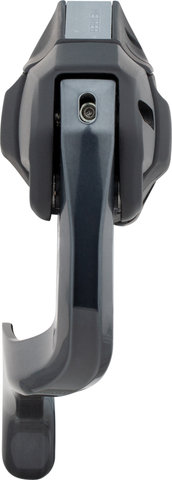

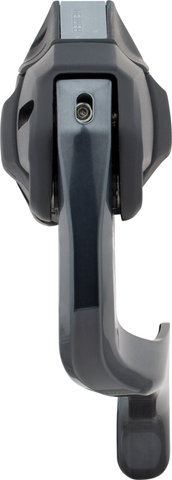

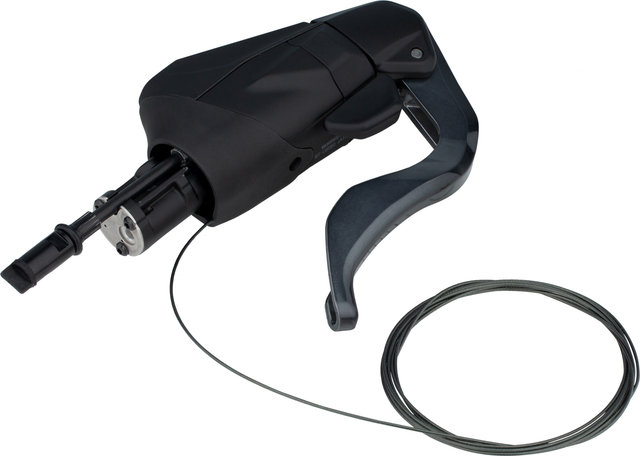

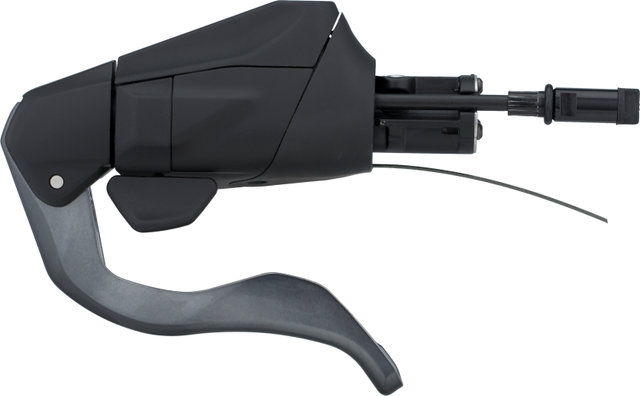

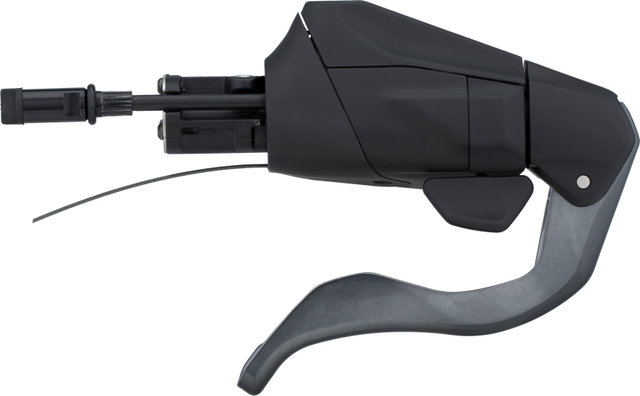

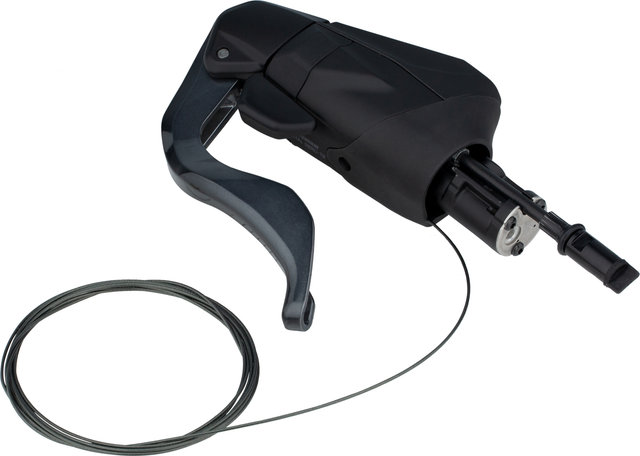

Shimano Metrea ST-U5060 2-/11-speed Shift/Brake Levers

The Metrea shift/brake lever ST-U5060 by Shimano - optimum shifting and braking in the city

The Shimano Metrea ST-U5060 shift/brake lever offers smooth, easy shifting without noise development (Dual Control technology) and thanks to Shimano Total Integration, it also offers a precisely dosed braking function. It is designed for city bikes with 2x11-speed gears and hydraulic disc brakes and helps you to get safely through city traffic. Servo Wave ensures that the applied force results in consistent and smooth braking. Two shift cables with friction-reducing Optislick coating are included. The right STI (ST-U5060-R) can also be used in combination with the left BL-U5010-L brake lever if you ride the Metrea 1x11-speed and therefore only need a shift/brake lever on the right.

Specifications:

Series:

Metrea U5000

Application:

City

Gearing:

2-speed, 11-speed

Shifting System:

mechanical

Brake Type:

hydraulic

Technical Information:

Brake Lever Material:

Aluminium

Lever Body Material:

Aluminium

Hose:

SM-BH59-JK-SS (not included)

Actuation:

mineral oil

Mount:

clamp (closed)

Reach Adjust:

bolt

Adjustment Options:

reach adjust

Compatibility:

Handlebar Type:

H-type

Clamp Diameter:

29.8 - 30.2 mm

Front Derailleur:

FD-R9100, FD-R8000, FD-5801, FD-R7000, FD-9000, FD-6800, FD-5800, FD-U5000, FD-RX810

Crank:

FC-R9100, FC-R9100-P, FC-R8000, FC-R7000, FC-RS510, FC-9000, FC-6800, FC-5800, FC-RS500, FC-U5000-2, FC-RX810-2, FC-RX600-11

Rear Derailleur:

RD-R9100, RD-R8000, RD-RX800, RD-9000, RD-6800, RD-5800, RD-R7000, RD-U5000, RD-RX810

Cassette:

CS-R9100, CS-9000, CS-6800, CS-5800, CS-R8000, CS-HG800-11, CS-R7000, CS-HG700-11

Chain:

CN-9000, CN-6800, CN-HG901-11, CN-HG701-11, CN-HG601-11, CN-LG500

Recommended Brake Caliper:

BR-U5000

Left Brake Lever:

BL-U5010 (with 1-speed shifters & derailleurs)

Features:

• tidy and elegant style
• soft and constant braking performance
• quiet, fluid and smooth-running shifts: Vivid Index shifting with unambiguous click when snapped in
• max. number of gears per shift: 2 (main lever, rear)
• Optislick inner cable with a minimal galvanic coating for more efficient cable routing and corrosion resistance
• SP41 cable housing recommended
• funnel bleeding
• straight hose connection
• main cylinder aluminium (painted), shift lever aluminium/steel, resin
• painted brake lever and body
• 10 mm wrench required to clamp bolt

Technology:

STI Dual Control
Shimano Total Integration (STI) means the combination of braking and shifting functions in one lever, which increases safety when riding. By refining the technology, it became possible to make shifting so smooth at the front and rear that they can be triggered with just one finger. Shimano calls such levers Dual Control Levers (DCL).

Servo Wave
Shimano Servo Wave technology optimises the travel of your brake levers. During the braking process, the brake pads are guided quickly to the brake rotor with very short lever travel. The greater part of the lever travel is reserved for the actual braking force. In this way, you can apply your braking power in a more targeted manner and use it more effectively.

Models:

2-speed:

Mount:

left

Gearing:

2x

Manufacturer Number:

I-STU5060LI

11-speed:

Mount:

right

Gearing:

11-speed

Manufacturer Number:

I-STU5060RI

Contents:

• 1 x Shimano Metrea ST-U6050 shift/brake lever
• 1 x Shimano 1800 mm shifter cable or 2300 mm
