Shimano OT-SP41/OT-RS900 Polymer Shift Cable Set Dura-Ace R9100/Ultegra R8000

The Shimano shifter cable set OT-SP41/OT-RS900 for Dura-Ace - special cable housing and coated cables

The Shimano shift cable set OT-SP41/OT-RS900 Polymer is suitable for Dura-Ace R9100 and Ultegra R8000, among others, because here the rear derailleurs have to be mounted on the bike with the special OT-RS900 cable housing. The standard OT-SP41 cable housing cannot be used as it is too stiff for the small radius required. Also included in the set are shift cables with a polymer coating that looks like tubes wrapped around the cable under a microscope. This reduces the surface area that rubs against the liner and improves grease retention. This results in lower shifting forces and faster gear changes.

Specifications:

Application:

Road

Cable Diameter:

1.2 mm

Cable Length:

1800 mm, 2100 mm

Cable Housing Diameter:

4 mm

Cable Housing Length:

1700 mm (OT-SP41), 240 mm (OT-RS900)

Technical Information:

Shifter Cable Material:

stainless steel

Cable Coating:

polymer

Liner:

polyethylene

Compatibility:

• RD-R9100
• RD-R8000
• RD-R7100
• RD-R7000
• RD-RX820
• RD-RX822
• RD-RX810
• RD-RX812
• RD-RX400

Features:

• polymer-coated cables reduce friction and ensure smooth and fast operation
• cables have a round cross-section which reduces friction
• stainless steel cable is corrosion resistant (anticorrosive (SUS))
• SIS-SP41 housing is pre-lubricated with special silicone grease to ensure smooth shifting
• dirt-repellent: sealed housing end caps minimise the penetration of dirt
• set especially recommended for Dura-Ace and Ultegra due to the polymer cables, but also compatible with the other rear derailleurs listed above
• performance indicator: Ultimate (level 3 out of 3)

Note from the manufacturer:

The length of the OT-RS900 should be adjusted accordingly depending on the bicycle frame size. This is necessary for optimal performance. The OT-RS900 should be cut from the correct side when adjusting the length. One of the two ends is flare-processed. This flare-processed end is inserted into the barrel adjuster of the rear derailleur and should therefore remain there.

Technology:

OT-RS900
For Dura-Ace, Ultegra, 105, GRX and other 11-speed or 12-speed road and gravel rear derailleurs, Shimano has developed the special OT-RS900 cable housing. It is less stiff than the conventional OT-SP41 housing and is therefore better suited to the tight curve where the cable is routed from the frame to the rear derailleur. Thanks to OT-RS900, problems with the barrel adjuster can be prevented and the rear wheel can be removed more easily. OT-RS900 is not intended for use on the shift/brake lever side.

Manufacturer Numbers:

black:

Y-0BM98010

hi-tech grey:

Y-0BM98040

white:

Y-0BM98020

red:

Y-0BM98030

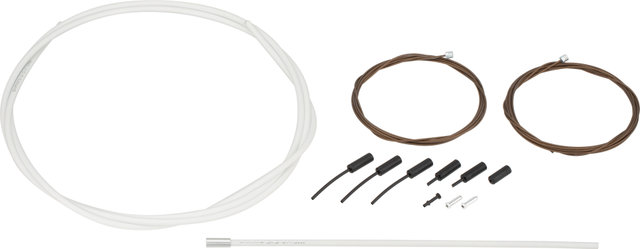

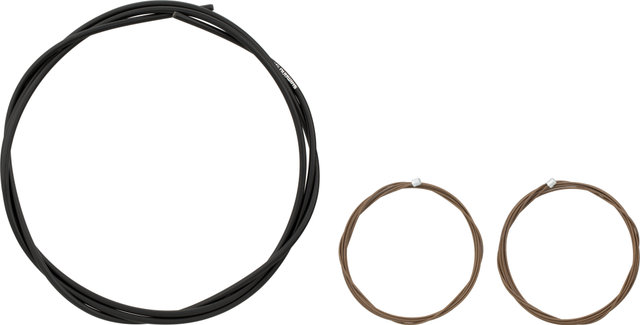

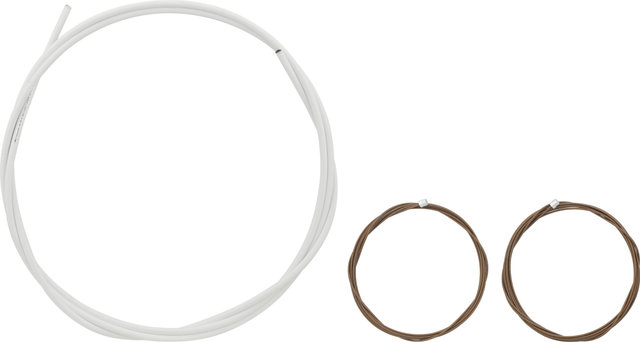

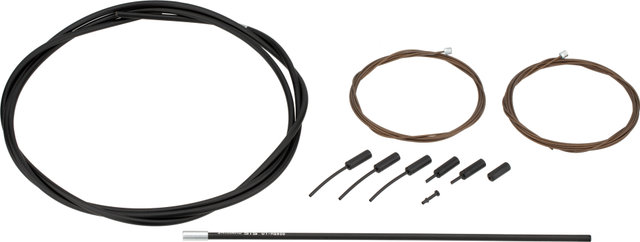

Contents:

• 1 x Shimano OT-RS900 shifter cable housing
• 1 x Shimano OT-SP41 shifter cable housing
• 1 x Shimano 1800 mm shift cable
• 1 x Shimano 2100 mm shift cable
• 2 x Shimano short pointed end caps for ST-R9100/R9120
• 3 x Shimano long pointed end caps
• 1 x end caps, sealed, for rear derailleur
• 2 x cable ferrules
• 1 x rear derailleur cap
• 1 x front derailleur cable housing end cap for full length cable housing
