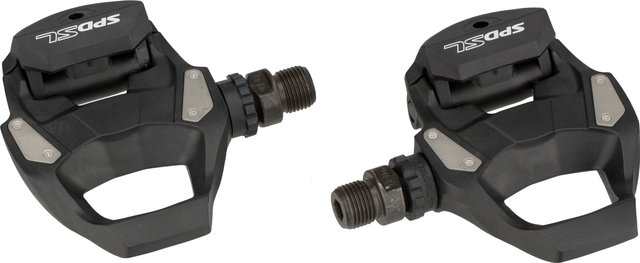

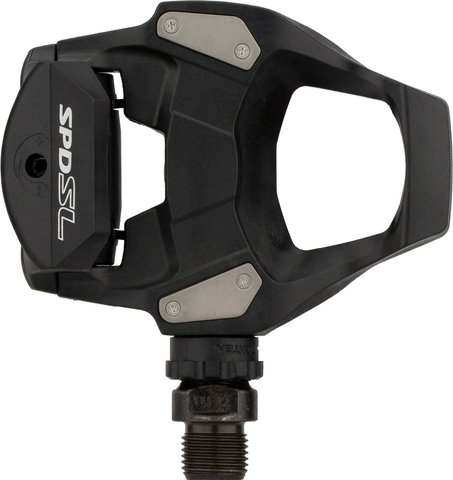

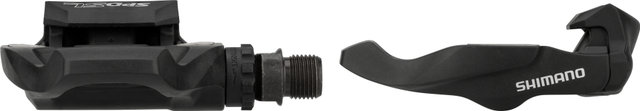

Shimano PD-RS500 Clipless Pedals

The Shimano PD-RS500 clipless pedals are perfect for clipless pedal beginners

The Shimano PD-RS500 clipless pedals have been optimised for beginners. They have a larger clip-in area and an extra wide platform that transfers pedal power efficiently. In addition, this Shimano pedal features a heavy-duty stainless steel pedal body insert.

Specifications:

Application:

Road

Type:

clipless pedals

Pedal System:

SPD-SL

Cleat Mount:

3-bolt

Technical Information:

Body Material:

composite (resin)

Axle Material:

steel (CrMo)

Bearings:

compact

Height:

16.5 mm

Float:

6° (0° or 2° optional)

Release Angle:

30°

Recommended Cleats:

SM-SH10, SM-SH11, SM-SH12

Pedal Centre to Crank Arm Distance:

53 mm

Features:

• wear-resistant and torsion-resistant pedals with synthetic resin body (painted)
• highly resilient pedal body insert made of stainless steel
• lighter spring tension, optimised for beginners
• greater entry area for better contact
• efficient transmission of pedal force due to extra wide platform
• one-sided binding mechanism
• cartridge axle
• sealed mechanism
• tension adjust
• optional SM-PD65 reflectors

Manufacturer Number:

E-PDRS500

Contents:

• 1 x pair Shimano PD-RS500 clipless pedals

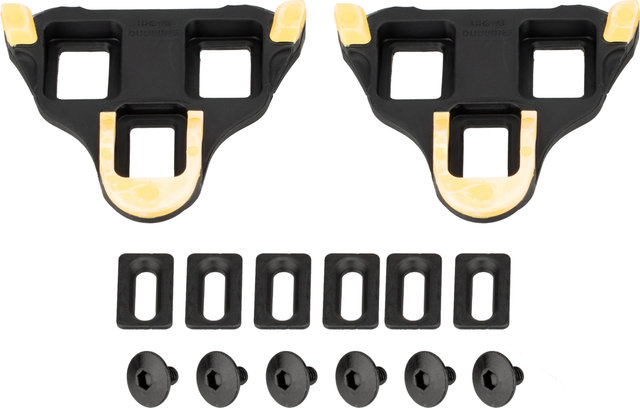

• 1 x pair Shimano SM-SH11 pedal cleats
