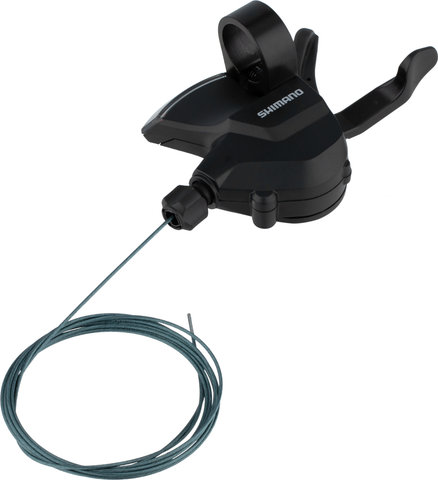

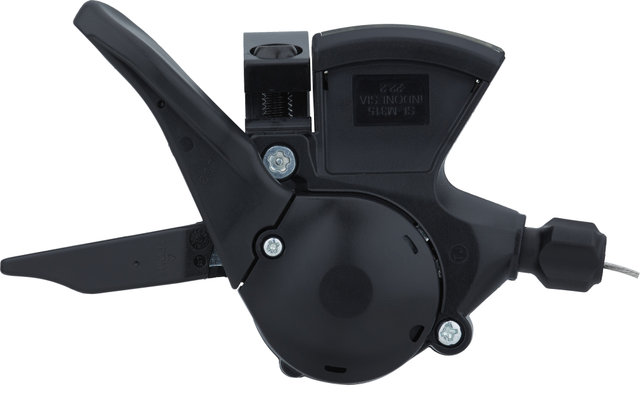

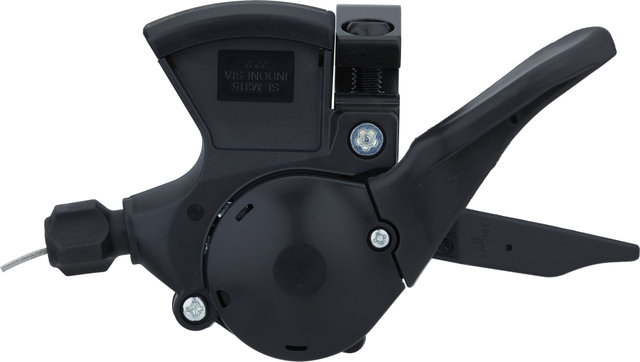

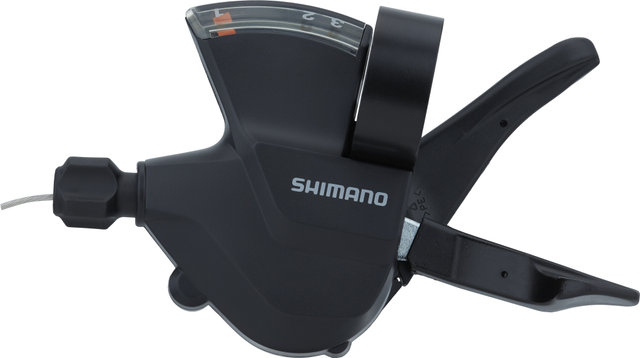

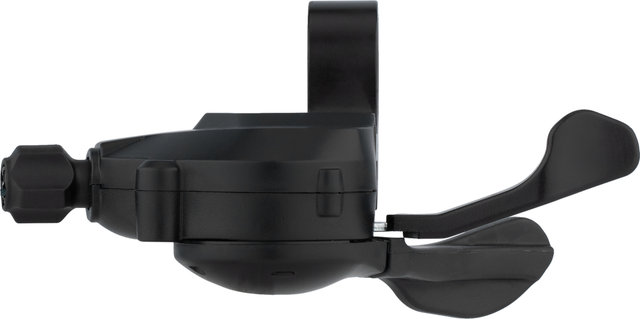

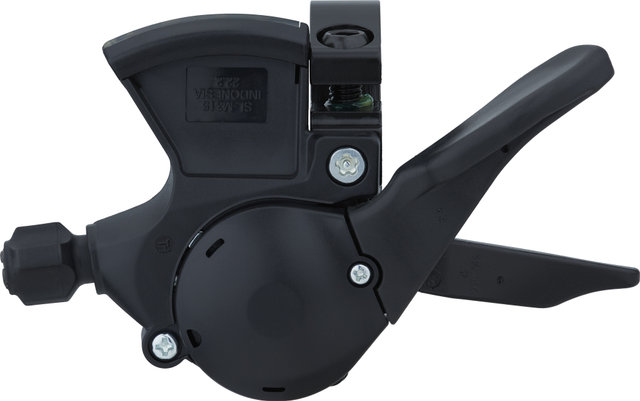

Shimano SL-M315 Shifter w/ clamp 2-/3-/7-/8-Speed

The SL-M315 shifter from Shimano - always know which gear you are in

The Shimano SL-M315 is a shifter for city, touring and mountain bikes with 7-speed or 8-speed shifters and derailleurs and two or three chainrings. It has an integrated, easy-to-read gear indicator, which helps you to be aware of the gearing at all times. As a Rapidfire-Plus model, the SL-M315 helps to achieve fast, indexed shifting; you can downshift by up to 3 gears at once per lever operation. The mounting on the handlebars is done with the use of a classic clamp. A steel derailleur cable with Optislick coating is included in the delivery.

Specifications:

Application:

City, Touring, All Mountain

Gearing:

2-speed, 3-speed, 7-speed, 8-speed

Mount:

clamp (closed)

Technical Information:

Type:

Rapidfire Plus

Body Material:

Aluminium

Lever Material:

resin, steel

Cable:

steel (Optislick)

Cable Housing:

OT-SP41 (not included in the delivery)

Gear Indicator:

yes

Adjustment Options:

• cable adjust

Compatibility:

MTB 2x8-speed:

Front Derailleur:

FD-M315-TS, FD-TY710-2-TS3

Crank:

FC-M315-2, FC-M315-B2, FC-TY501-2

Rear Derailleur:

RD-M360-SGS, RD-M310-Smart, RD-TX800-SGS

Cassette:

CS-HG51-8, CS-HG41-8, CS-HG31-8, CS-HG200-8

Chain:

CN-HG71, CN-HG40

Handlebar Grip Outer Diameter:

max. 36 mm

Clamp Diameter:

22.2 mm

MTB 3x8-speed:

Front Derailleur:

FD-M410-E, FD-M313-3, FD-M313-6, FD-M310-3, FD-M310-6, FD-TX800-TS3, FD-TX800-TS6, FD-TY700-TS3, FD-TY700-TS6, FD-TY710-TS3, FD-TY710-TS6

Crank:

FC-M361, FC-M311, FC-TX801, FC-TY701, FC-TY501, FC-TY301

Rear Derailleur:

RD-M360-SGS, RD-M310-Smart, RD-TX800-SGS

Cassette:

CS-HG51-8, CS-HG41-8, CS-HG31-8, CS-HG200-8

Chain:

CN-HG71, CN-HG40

Handlebar Grip Outer Diameter:

max. 36 mm

Clamp Diameter:

22.2 mm

MTB 2x7-speed:

Front Derailleur:

FD-M315-TS, FD-TY710-2-TS3

Crank:

FC-M315-2, FC-M315-B2, FC-TY501-2

Rear Derailleur:

RD-M360-SGS, RD-M310-Smart, RD-TX800-SGS, RD-TY500-SGS, RD-TY300-SGS, RD-TY200-GS

Cassette:

CS-HG41-7, CS-HG200-7, MF-HG37, MF-TZ500-7, MF-TZ500-7-CP, MF-TZ510-7, MF-TZ510-7-CP, MF-TZ21-CP, MF-TZ21, MF-TZ31-CP, MF-TZ31

Chain:

CN-HG71, CN-HG40

Handlebar Grip Outer Diameter:

max. 36 mm

Clamp Diameter:

22.2 mm

MTB 3x7-speed:

Front Derailleur:

FD-M410-E, FD-M313-3, FD-M313-6, FD-M310-3, FD-M310-6, FD-TX800-TS3, FD-TX800-TS6, FD-TY700-TS3, FD-TY700-TS6, FD-TY500-TS3, FD-TY500-TS6, FD-TY300-DS6(475), FD-TY300-DS6(50), FD-TY710-TS3, FD-TY710-TS6, FD-TY510-TS3, FD-TY510-TS6, FD-TZ500-DS6, FD-TZ30, FD-TZ510-DS6, FD-TZ31

Crank:

FC-M361, FC-M311, FC-TX801, FC-TY701, FC-TY501, FC-TY301

Rear Derailleur:

RD-M360-SGS, RD-M310-Smart, RD-TX800-SGS, RD-TY500-SGS, RD-TY300-SGS, RD-TY200-GS

Cassette:

CS-HG41-7, CS-HG200-7, MF-HG37, MF-TZ500-7, MF-TZ500-7-CP, MF-TZ510-7, MF-TZ510-7-CP, MF-TZ21-CP, MF-TZ21, MF-TZ31-CP, MF-TZ31

Chain:

CN-HG71, CN-HG40

Handlebar Grip Outer Diameter:

max. 36 mm

Clamp Diameter:

22.2 mm

Features:

• groupless, at the level of Altus
• max. number of gears per shift: 3 (main lever, rear)
• easy shifting
• suitable for internal cable routing
• slim main lever body
• gear indicator positioned below the handlebars
• gear indicator with numbers allows reading the gear at a glance
• Optislick inner cable with a minimal galvanic coating for more efficient cable routing and corrosion resistance
• painted housing
• steel clamp bolt

Technology:

Rapidfire Plus
Rapidfire Plus is a type of Shimano shift lever construction that has been common in the mountain bike sector since 1985. Two levers, the main lever and the release lever, are used instead of a twist shifter. Rapidfire Plus shift levers, as the name suggests, ensure fast shifting. In addition, depending on the model, it is possible to downshift up to three gears with one shift stroke.

Models:

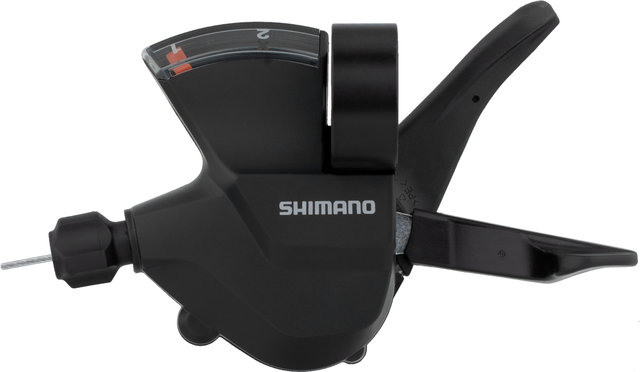

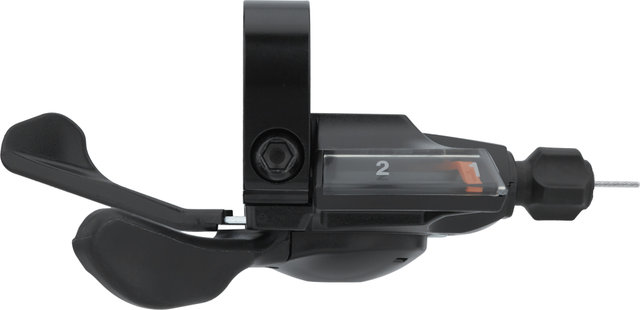

2-speed:

Mount:

left

Manufacturer Number:

E-SLM3152LB

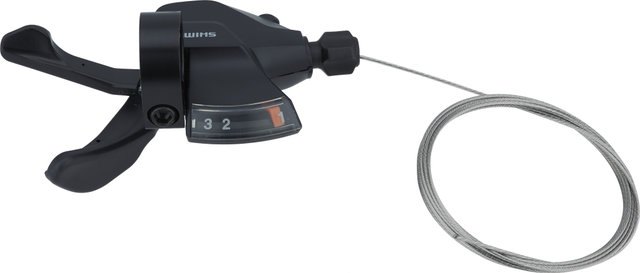

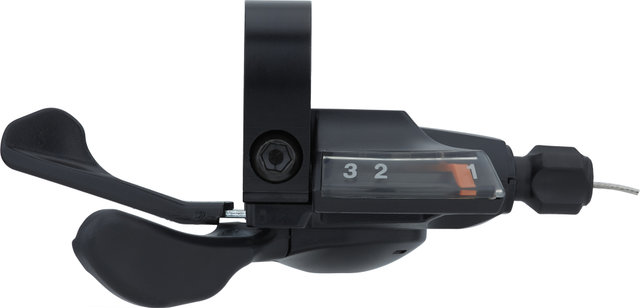

3-speed:

Mount:

left

Manufacturer Number:

E-SLM315LB

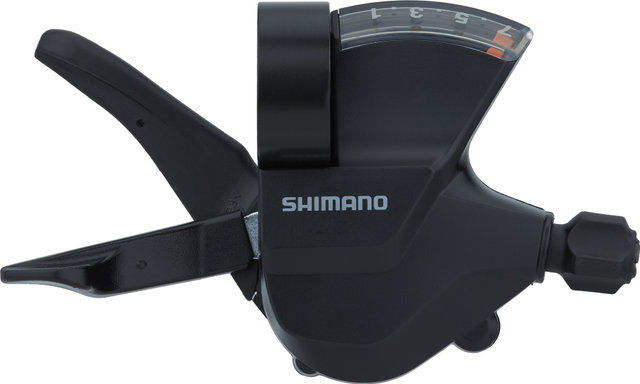

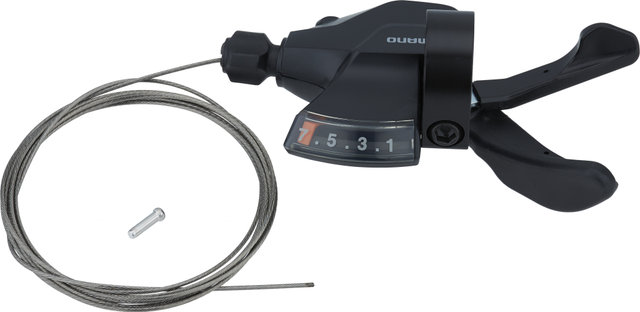

7-speed:

Mount:

right

Manufacturer Number:

E-SLM3157RA

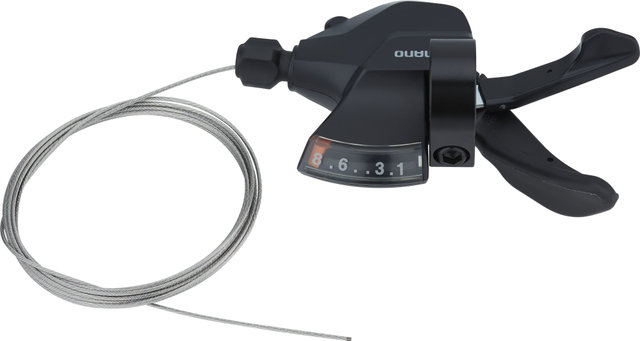

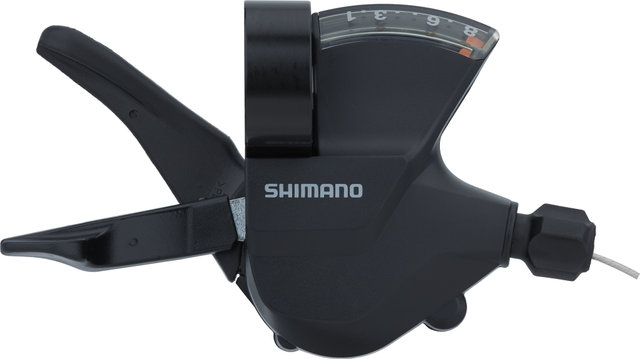

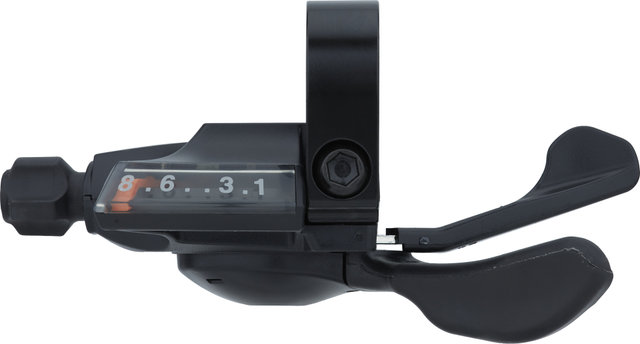

8-speed:

Mount:

right

Manufacturer Number:

E-SLM3158RA

Contents:

• 1 x Shimano SL-M315 shifter with gear indicator
• 1 x Shimano cable, 1800 mm or 2050 mm
