Shimano SLX / 105 / E-Bike Quick-Link Chain CN-M7100 12-speed

With the SLX CN-M7100 chain by Shimano it's easy to ride over sticks, stones and more

The Shimano SLX CN-M7100 12-speed chain has been thoroughly revised to form a central component of the SLX M7100 as well as 105 R7100 groupset. High-precision moulded contact surfaces to chainring and cassette teeth ensure fast, but also precise and smooth shifting up and down. Shifting with the CN-M7100 chain works perfectly even under load.

Guidelines for Replacing E-bike Components:

Before you replace components on your e-bike, please read through the guidelines for component replacement for CE-marked e-bikes/pedelecs with pedal assistance.

Specifications:

Application:

MTB, Road

Gearing:

12-speed

Technical Information:

Number of Links:

116, 126, 138

Closure Type:

master link (Quick-Link)

Pin Type:

solid

Directional:

yes

Recommended Groupset:

SLX M7100, 105 R7100

Material:

steel

Compatibility:

• MTB 1x12-speed, 2x12-speed
• Dura-Ace, Ultegra, 105 2x12-speed
• GRX 1x12-speed, 2x12-speed
• e-bike: STEPS E7000

Features:

• HG chain for 1x12, 2x12
• runs smoothly over stones, roots etc.
• enlarged inner plate for improved chain retention
• shorter shift times, improved shift behaviour
• SIL-TEC surface coating on inner plate
• with master link for easy installation

Technology:

HG 12-speed for Hyperglide+
Shimano Hyperglide (HG) 12-speed chains have enlarged inner plates designed to work with Hyperglide+ cassettes and Dynamic Chain Engagement+ chainrings. This prevents vibrations when the chainring and chain come into contact, resulting in improved chain retention. In combination with an HG+ 12-speed cassette, shifting and drive efficiency are increased. This also benefits the service life of the chain. HG 12-speed chains are directional, i.e. they have an asymmetrical design and thus a predefined installation direction.

Manufacturer Numbers:

12 speed / 116 links:

I-CNM7100116Q

12 speed / 126 links:

I-CNM7100126Q

12 speed / 138 links:

I-CNM7100138Q

Contents:

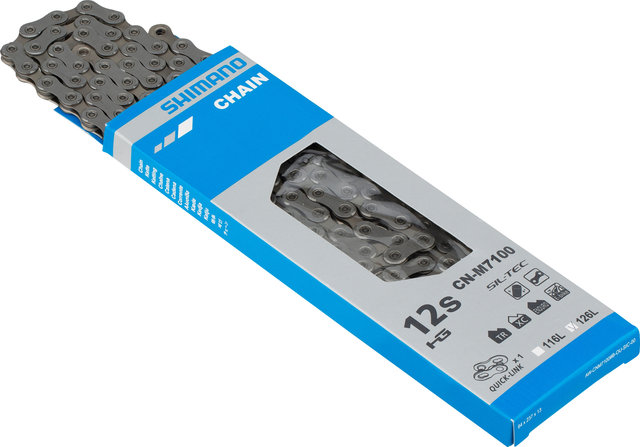

• 1 x Shimano SLX / 105 CN-M7100 chain

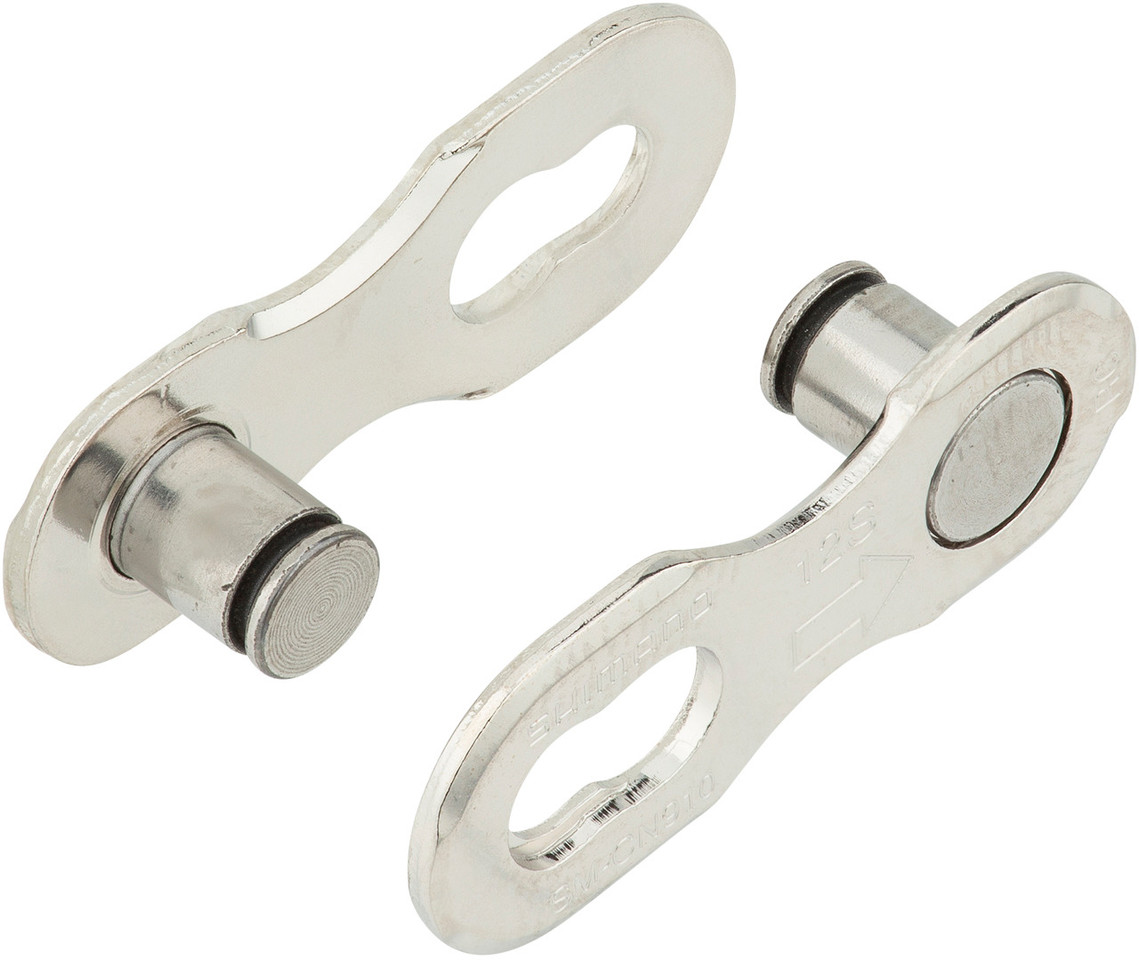

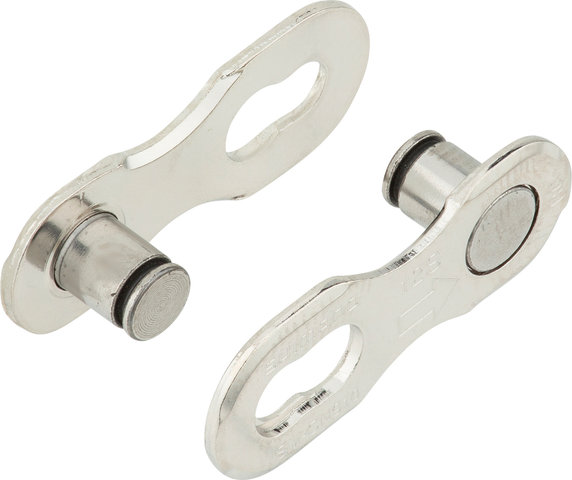

• 1 x Shimano SM-CN910-12 Quick-Link master link
