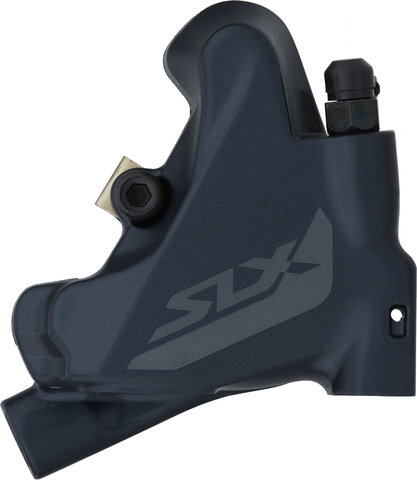

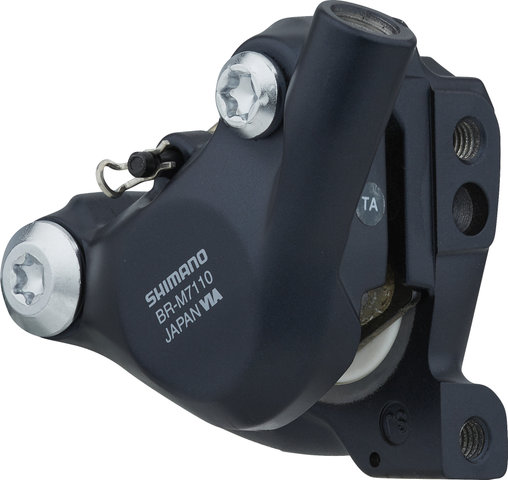

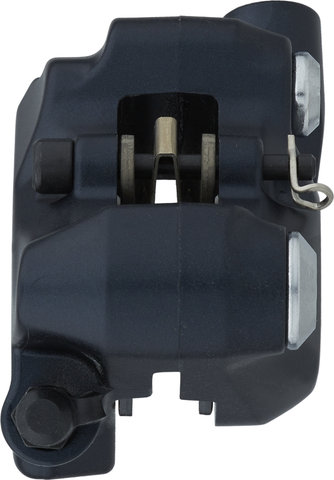

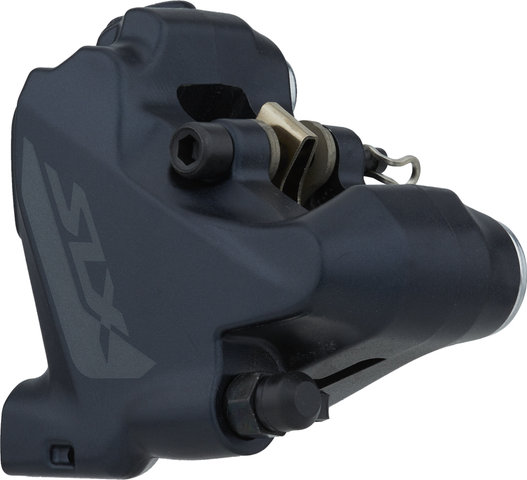

Shimano SLX BR-M7110 Brake Caliper w/ Resin Pads

The SLX BR-M7110 Flat-Mount Brake Caliper by Shimano - Compact and reliable

The BR-M7110 is a brake caliper from the Shimano SLX series that is attached to the frame via flat mount. Front wheel use is not possible. As a 2-piston model, it is intended for cross-country use. The flat mount standard is proven technology known from the road bike sector, and has the advantage of a compact design that blends in pleasantly with the bike's appearance. The braking power is in no way inferior to that of the BR-M7100 post-mount brake caliper, especially as brake rotors up to 180 mm are compatible. The BR-M7110 is made of lacquered aluminium and has a straight line connection; the pistons are made of heat-resistant ceramic. It comes with resin pads without cooling fins, but it can also be combined with Ice-Tech pads for even better heat dissipation. The One-Way Bleeding technology facilitates the bleeding process.

Specifications:

Series:

SLX M7100

Application:

Cross Country

Type:

hydraulic, 2 pistons

Actuation:

mineral oil

Hose:

SM-BH90-SS (not included)

Technical Information:

Caliper Mount:

flat mount

Pads:

resin

Design:

2-piece

Calliper Material:

Aluminium

Piston Material:

Ceramic

Hose Connection:

straight

Compatibility:

Mounting Position:

rear wheel only

Brake Rotor:

140 mm, 160 mm, 180 mm (recommended: SM-RT70)

Pads:

organic and sintered; with narrow pad shape; standard and Ice-Tech

Recommended Brake Lever:

BL-M7100

Features:

• compact flat mount design
• same braking power as SLX 2-piston model for Post Mount mounting
• same frame requirements as flat mount for road bike
• 2 ceramic pistons
• painted
• steel bolts (4 mm)

Technology:

One Way Bleeding
One Way Bleeding is a technique used on Shimano calipers that facilitates brake bleeding. The hose routing has been optimised so that no air bubbles remain in the brake calliper. In combination with the funnel, the brake can be bled cleanly and easily.

Manufacturer Number:

I-BRM7110RDRX

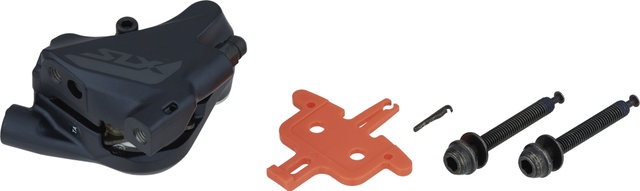

Contents:

• 1 x Shimano SLX BR-M7110 brake calliper
• 1 x pair Shimano brake pads
• 2 x caliper bolts for 25 mm frame diameters

Order Together:

• FM-to-FM brake adapter SM-MA-R160 D/D for 160 mm brake rotor on 140 mm FM frame
• FM-to-FM brake adapter SM-MA-R160 D/D for 180 mm brake rotor on 160 mm FM frame

Optional Accessories:

• Screws for 15, 20 and 30 mm frame diameter
• K04S Metal Pads
• L03A Resin Pads with Cooling Fins
• L04C Metal Pads with Cooling Fins
