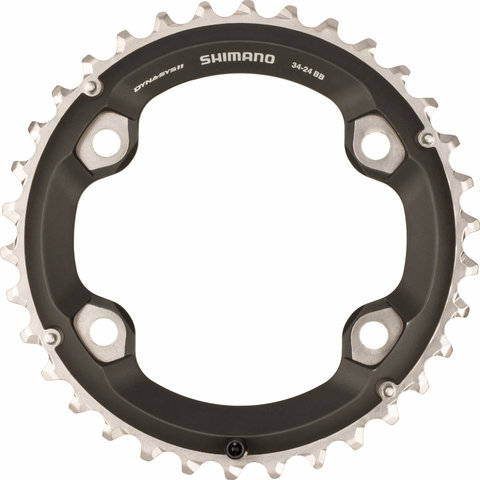

Shimano SLX FC-M7000-11-2 11-speed Chainring

The Shimano SLX 11-speed Chainring for the FC-M7000-11-2 crank

This Shimano chainring is only compatible with the SLX FC-M7000 11-speed crank, not with the 10-speed version. It can be used for 24-34, 26-36 or 28-38 tooth combinations. The small chainrings are made of steel, the large ones of an aluminium-fibreglass composite.

Specifications:

Application:

Cross Country, Enduro, All Mountain

Mount:

96/64 mm bolt circle diameter, 4-arm asymmetrical

Teeth:

24 t, 26 t, 28 t, 34 t, 36 t, 38 t

Gearing:

2x11-speed

Technical Information:

Combinations:

24-34 t, 26-36 t, 28-38 t

Material:

steel (24 T to 28 T), aluminium fibreglass composite (34 T to 38 T)

Features:

• small chainring painted, large chainring plated (teeth)

Models:

24 tooth:

Type:

BB

Bolt Circle Diameter:

64 mm

Compatibility:

SLX FC-M7000-11, FC-M7000-11-B, also suitable for FC-M8000, FC-MT700

Manufacturer Number:

Y-1VG24000

26 tooth:

Type:

BC

Bolt Circle Diameter:

64 mm

Compatibility:

SLX FC-M7000-11, FC-M7000-11-B / FC-MT600(-B2), also suitable for FC-M8000, FC-MT700

Manufacturer Number:

Y-1VG26000

28 tooth:

Type:

BD

Bolt Circle Diameter:

64 mm

Compatibility:

SLX FC-M7000-11, FC-M7000-11-B, can also be used for FC-M8000

Manufacturer Number:

Y-1VG28000

34 tooth:

Type:

BB

Bolt Circle Diameter:

96 mm

Compatibility:

SLX FC-M7000-11, FC-M7000-11-B / FC-MT700(-B2), can also be used for FC-M8000

Manufacturer Number:

Y-1VG98010

36 tooth:

Type:

BC

Bolt Circle Diameter:

96 mm

Compatibility:

SLX FC-M7000-11, FC-M7000-11-B / FC-MT700(-B2), FC-MT600(-B2), also suitable for FC-M8000

Manufacturer Number:

Y-1VG98020

38 tooth:

Type:

BD

Bolt Circle Diameter:

96 mm

Compatibility:

SLX FC-M7000-11, FC-M7000-11-B, can also be used for FC-M8000

Manufacturer Number:

Y-1VG98030

Note to Type Designation:

The type designation (one or two characters) helps identify the compatibility of various chainrings with other chainrings. Because the larger chainrings have specially-formed teeth and upward shifting assistance, only particular smaller chainrings will match to ensure proper shifting performance. An XY chainring should only be combined with another XY chainring. This applies to all other types as well.

Contents:

• 1 x Shimano SLX FC-M7000 chainring
