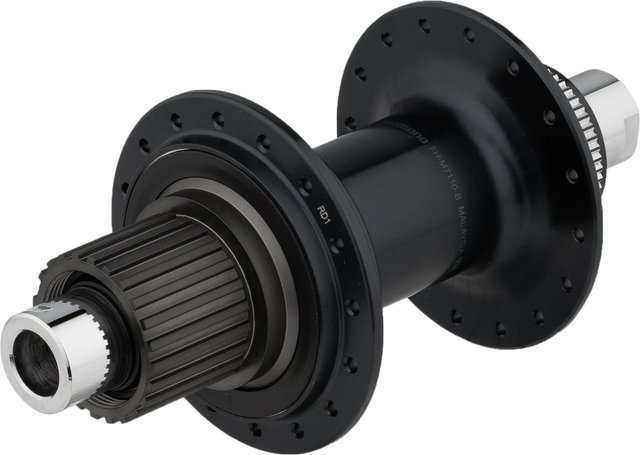

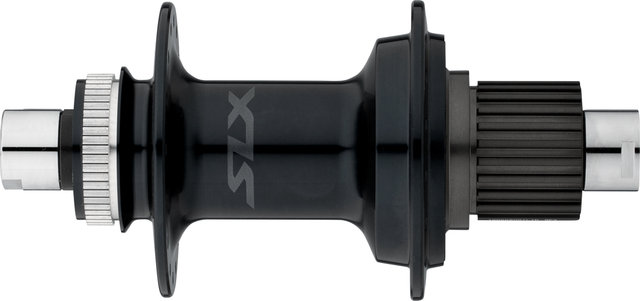

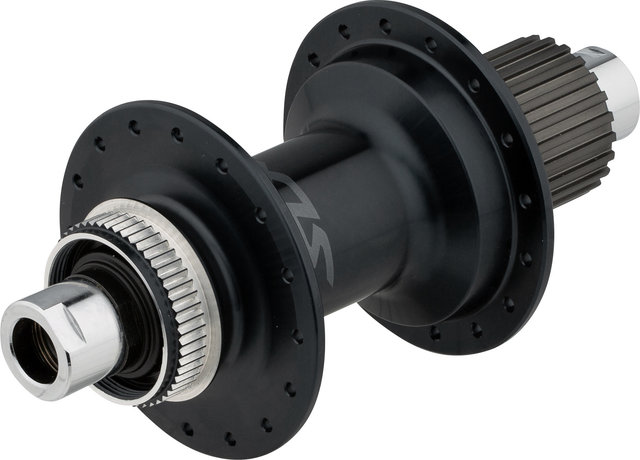

Shimano SLX FH-M7110 Center Lock Disc 12 mm Thru-Axle Rear Hub

The SLX FH-M7110 Rear Hub by Shimano - Quicker engagement

The Shimano SLX FH-M7110 rear hub is based on the innovative Micro Spline freehub system, which allows 12-speed cassettes with 10-tooth sprockets to be mounted. A fast engagement benefits acceleration and riding fun. Thanks to spline mount and a center lockring, the brake rotor can be easily mounted on this 12 x 142 mm hub.

Specifications:

Series:

SLX M7100

Application:

All Mountain, Enduro, Cross Country

Brake Type:

Center Lock Disc

Freehub Body Type:

Aluminium, Direct Engagement (Ratchet), Quick Engagement (max. 7°)

Technical Information:

Body Material:

aluminium

Bearings:

cup & cone

Seals:

labyrinth + contact

Features:

• faster acceleration for more riding pleasure
• smaller diameter for 10 T sprocket (Micro Spline)
• easy setup and reliable trail performance
• brake rotor can be quickly mounted with spline mount and lockring
• flange diameter 69.8 mm left, 69.8 mm right
• 6.72 mm offset
• CBN precision machined bearings/polished
• steel axle
• anodised hub shell
• freehub body has contact seal
• quick engagement

Technology:

E-Thru
E-Thru is a tool-free thru-axle system from Shimano that optimises the stiffness-to-weight ratio and ensures easy handling via its reliable internal cam mechanism. It is characterised by a high torsion resistance and thus also supports cornering at high speed. E-Thru thru-axle hubs and thru-axles are available in the corresponding over locknut dimensions for front and rear.

Cup and Cone Bearings
Angular contact ball bearings of the cup & cone type are superior to sealed cartridge bearings in terms of load carrying capacity, as they distribute lateral and vertical forces better, and thus run particularly smoothly and last a long time. They are also easier to adjust, maintain and replace.

Micro Spline
Micro Spline is an innovative tooth profile on MTB freehub bodies from Shimano. All Shimano 12-speed MTB cassettes with a 10-speed sprocket are equipped with Micro Spline freehub toothing. The significantly higher and finer toothing enables a stiffer connection between the cassette and the hub body. The resulting increased contact area ensures reliable power transmission, minimises wear and prevents deformation of the freehub and sprocket.

Models:

12 x 142 mm / 28 hole / Shimano Micro Spline:

Over Locknut Dimension:

12 x 142 mm thru-axle

Spoke Hole Count:

28 hole

Freehub:

Shimano Micro Spline

Gearing:

12-speed

Flange Distance (L/R):

55.17 mm (34.31 mm/20.86 mm)

Partial Bolt Circle Diameter (L/R):

61 mm/61 mm

Manufacturer Number:

E-FHM7110C

12 x 142 mm / 32 hole / Shimano Micro Spline:

Over Locknut Dimension:

12 x 142 mm thru-axle

Spoke Hole Count:

32 hole

Freehub:

Shimano Micro Spline

Gearing:

12-speed

Flange Distance (L/R):

55.17 mm (34.31 mm/20.86 mm)

Partial Bolt Circle Diameter (L/R):

61 mm/61 mm

Manufacturer Number:

E-FHM7110B

Contents:

• 1 x Shimano SLX FH-M7110 rear hub
