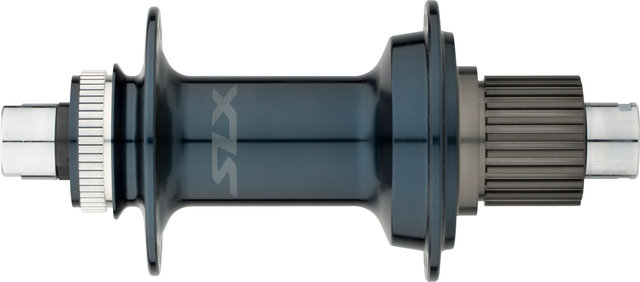

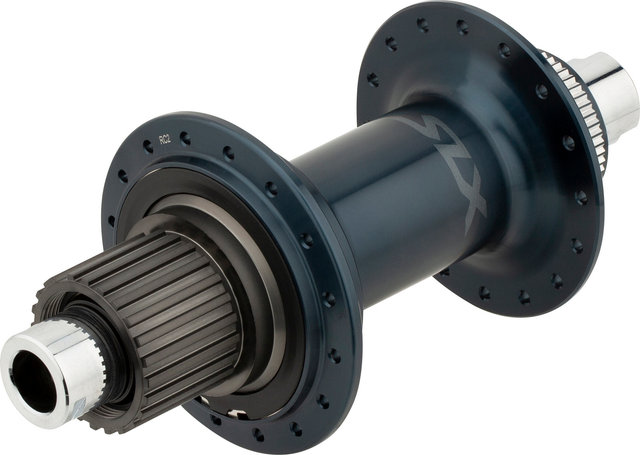

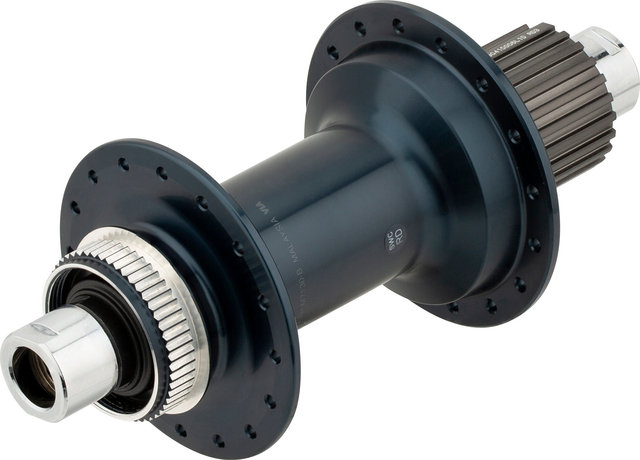

Shimano SLX FH-M7130-B Center Lock Disc 12 mm Thru-Axle Rear Hub

The SLX FH-M7130-B rear hub by Shimano - a special over locknut dimension

The Shimano SLX FH-M7130-B rear hub features extra-wide dimensions of 12 x 157 mm, as is common in the downhill sector. Spline mount and the center lockring ensure easy brake rotor mounting. Micro Spline freehub and fast frictional locking are of course also included with this hub.

Specifications:

Series:

SLX M7100

Application:

Enduro, All Mountain, Downhill

Brake Type:

Center Lock Disc

Wheel Standard:

Super Boost

Freehub Body Type:

Aluminium, Direct Engagement (Ratchet), Quick Engagement (max. 7°)

Technical Information:

Body Material:

aluminium

Bearings:

cup & cone

Seals:

labyrinth + contact

Features:

• extra wide over locknut dimension 157 mm
• faster acceleration for more riding pleasure
• smaller diameter for 10 T sprocket (Micro Spline)
• easy setup and reliable trail performance
• brake rotor can be quickly mounted with spline mount and lockring
• flange diameter 66.8 mm left, 69.8 mm right
• 6.43 mm offset
• CBN precision machined bearings/polished
• steel axle
• anodised hub shell
• freehub body has contact seal
• quick engagement

Technology:

E-Thru
E-Thru is a tool-free thru-axle system from Shimano that optimises the stiffness-to-weight ratio and ensures easy handling via its reliable internal cam mechanism. It is characterised by a high torsion resistance and thus also supports cornering at high speed. E-Thru thru-axle hubs and thru-axles are available in the corresponding over locknut dimensions for front and rear.

Cup and Cone Bearings
Angular contact ball bearings of the cup & cone type are superior to sealed cartridge bearings in terms of load carrying capacity, as they distribute lateral and vertical forces better, and thus run particularly smoothly and last a long time. They are also easier to adjust, maintain and replace.

Micro Spline
Micro Spline is an innovative tooth profile on MTB freehub bodies from Shimano. All Shimano 12-speed MTB cassettes with a 10-speed sprocket are equipped with Micro Spline freehub toothing. The significantly higher and finer toothing enables a stiffer connection between the cassette and the hub body. The resulting increased contact area ensures reliable power transmission, minimises wear and prevents deformation of the freehub and sprocket.

Models:

12 x 157 mm / 28 hole / Shimano Micro Spline:

Over Locknut Dimension:

12 x 157 mm thru-axle

Spoke Hole Count:

28 hole

Freehub:

Shimano Micro Spline

Gearing:

12-speed

Flange Distance (L/R):

72.69 mm (42.78 mm/29.91 mm)

Partial Bolt Circle Diameter (L/R):

58 mm/61 mm

Manufacturer Number:

E-FHM7130BC

12 x 157 mm / 32 hole / Shimano Micro Spline:

Over Locknut Dimension:

12 x 157 mm thru-axle

Spoke Hole Count:

32 hole

Freehub:

Shimano Micro Spline

Gearing:

12-speed

Flange Distance (L/R):

72.69 mm (42.78 mm/29.91 mm)

Partial Bolt Circle Diameter (L/R):

58 mm/61 mm

Manufacturer Number:

E-FHM7130BB

Contents:

• 1 x Shimano SLX FH-M7130-B rear hub
