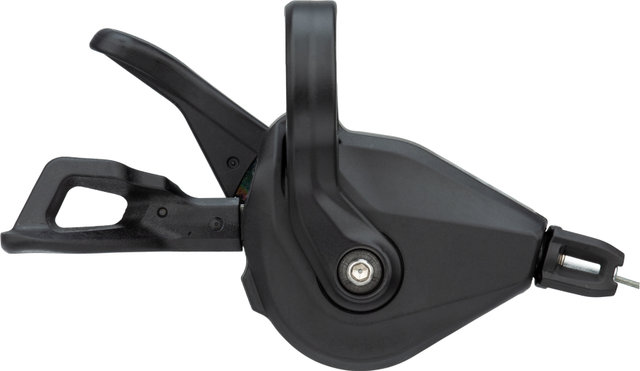

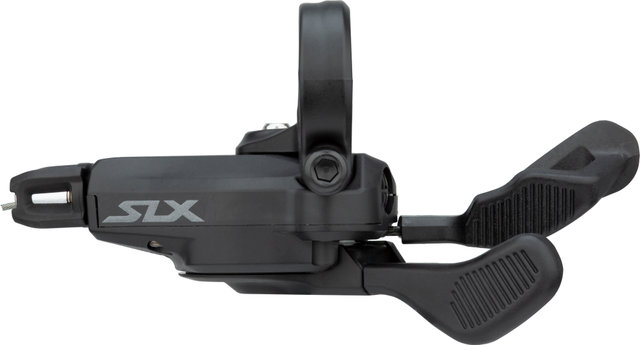

Shimano SLX SL-M7100 12-speed Shifter w/ Clamp

The SLX SL-M7100 shifter by Shimano - smooth operation and easy to use

The Shimano SLX SL-M7100 12-speed shifter (clamp version) is characterised by good accessibility and low operating forces. So you can concentrate more on the route and have even more fun while riding. The Shimano 2-Way Release technology ensures delay-free push and pull movements.

Guidelines for Replacing E-bike Components:

Before you replace components on your e-bike, please read through the guidelines for component replacement for CE-marked e-bikes/pedelecs with pedal assistance.

Specifications:

Series:

SLX M7100

Application:

All Mountain, Enduro, Cross Country

Gearing:

12-speed

Mount:

clamp (closed)

Technical Information:

Type:

Rapidfire Plus

Body Material:

Aluminium

Lever Material:

composite material (GFRP), steel

Cable:

stainless steel (Optislick)

Cable Housing:

OT-SP41

Adjustment Options:

• cable adjust

Compatibility:

MTB 12-speed:

Rear Derailleur:

RD-M9100, RD-M8100, RD-M7100, RD-M6100, RD-M9120, RD-M8120, RD-M7120

Cassette:

CS-M9101-12, CS-M9100-12, CS-M8100-12, CS-M7100-12, CS-M6100-12

Chain:

CN-M9100, CN-M8100, CN-M7100, CN-M6100

E-Bike:

STEPS E7000 with mechanical rear derailleur

Handlebar Grip Outer Diameter:

max. 36 mm

Clamp Diameter:

22.2 mm

Features:

• max. number of gears per shift: 3 (main lever, rear)
• faster lever access (20% faster than SL-M7000) and lower operating forces (35% less than SL-M7000) for more concentration and fun
• delay-free function thanks to 2-Way Release
• Optislick inner cable with a minimal galvanic coating for more efficient cable routing and corrosion resistance
• painted housing
• stainless steel clamp bolts

Technology:

Rapidfire Plus
Rapidfire Plus is a type of Shimano shift lever construction that has been common in the mountain bike sector since 1985. Two levers, the main lever and the release lever, are used instead of a twist shifter. Rapidfire Plus shift levers, as the name suggests, ensure fast shifting. In addition, depending on the model, it is possible to downshift up to three gears with one shift stroke.

2-Way-Release
With 2-Way-Release, the shifter can be pressed and pulled to shift to the smaller sprocket or chainring. This allows you to adjust the shifting process to your personal preferences. Most Rapidfire Plus shifters are equipped with 2-Way Release.

Models:

12-speed:

Mount:

right

Manufacturer Number:

I-SLM7100RAP

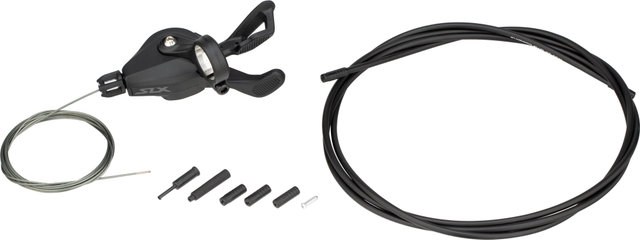

Contents:

• 1 x Shimano SLX SL-M7100 shifter
• 1 x Shimano cable (2050 mm)
• 1 x Shimano cable housing (1880 mm)
• 3 x 6 mm sealed end caps
• 1 x long nose end cap
