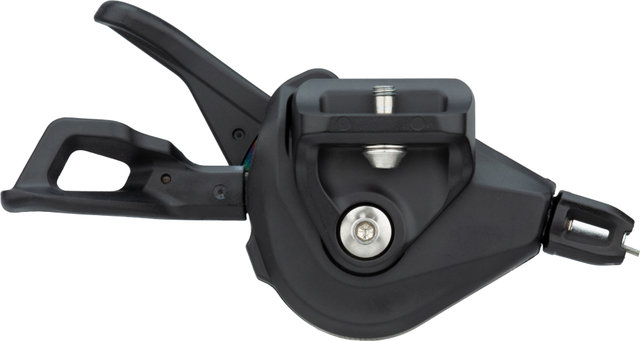

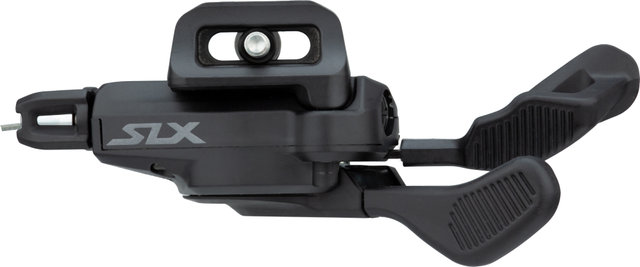

Shimano SLX SL-M7100-I 12-speed Shifter w/ I-Spec EV

SLX SL-M7100-I shifter by Shimano - for even more adjustment options in the cockpit

The Shimano SLX SL-M7100-I 12-speed shifter offers maximum individual ergonomics thanks to the I-Spec EV system. You can adjust it laterally (14 mm) and in the direction of rotation. Like the clamp version, SL-M7100-I is also characterised by good accessibility and low operating forces. The Shimano 2-Way Release technology ensures delay-free push and pull movements.

Guidelines for Replacing E-bike Components:

Before you replace components on your e-bike, please read through the guidelines for component replacement for CE-marked e-bikes/pedelecs with pedal assistance.

Specifications:

Series:

SLX M7100

Application:

All Mountain, Enduro, Cross Country

Gearing:

12-speed

Mount:

I-Spec EV

Technical Information:

Type:

Rapidfire Plus

Body Material:

Aluminium

Lever Material:

composite material (GFRP), steel

Cable:

stainless steel (Optislick)

Cable Housing:

OT-SP41

Adjustment Options:

• cable adjust
• position adjust
• shift lever rotation adjust

Compatibility:

MTB 12-speed:

Rear Derailleur:

RD-M9100, RD-M8100, RD-M7100, RD-M6100, RD-M9120, RD-M8120, RD-M7120

Cassette:

CS-M9101-12, CS-M9100-12, CS-M8100-12, CS-M7100-12, CS-M6100-12

Chain:

CN-M9100, CN-M8100, CN-M7100, CN-M6100

Brake Lever:

I-Spec EV

E-Bike:

STEPS E7000 with mechanical rear derailleur

Features:

• max. number of gears per shift: 3 (main lever, rear)
• faster lever access (20% faster than SL-M7000) and lower operating forces (35% less than SL-M7000) for more concentration and fun
• delay-free function thanks to 2-Way Release
• I-Spec EV position adjustable for every riding style and preference, tidy cockpit
• Optislick inner cable with a minimal galvanic coating for more efficient cable routing and corrosion resistance
• painted housing
• stainless steel clamp bolts

Technology:

Rapidfire Plus
Rapidfire Plus is a type of Shimano shift lever construction that has been common in the mountain bike sector since 1985. Two levers, the main lever and the release lever, are used instead of a twist shifter. Rapidfire Plus shift levers, as the name suggests, ensure fast shifting. In addition, depending on the model, it is possible to downshift up to three gears with one shift stroke.

2-Way-Release
With 2-Way-Release, the shifter can be pressed and pulled to shift to the smaller sprocket or chainring. This allows you to adjust the shifting process to your personal preferences. Most Rapidfire Plus shifters are equipped with 2-Way Release.

I-Spec EV
I-Spec EV describes a variant of the connection between brake lever and shift lever on Shimano MTB derailleurs. This type of mounting allows the shifter to be adjusted both horizontally and vertically in relation to the brake lever, and ensures a tidy cockpit by reducing the number of clamps required. Compared to I-Spec and I-Spec II, I-Spec EV offers a much wider adjustment range. 14 mm adjustment range the longitudinal direction and up to 60° rotation allow an optimal ergonomic adjustment to your riding style, your sitting position and your anatomy.

Models:

12-speed:

Mount:

right

Manufacturer Number:

I-SLM7100IRAP

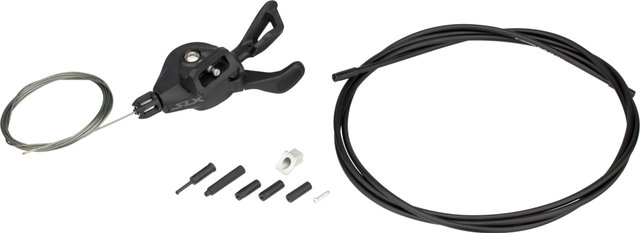

Contents:

• 1 x Shimano SLX SL-M7100-I shifter
• 1 x Shimano cable (2050 mm)
• 1 x Shimano cable housing
• 3 x 6 mm sealed end caps
• 1 x long nose end cap
