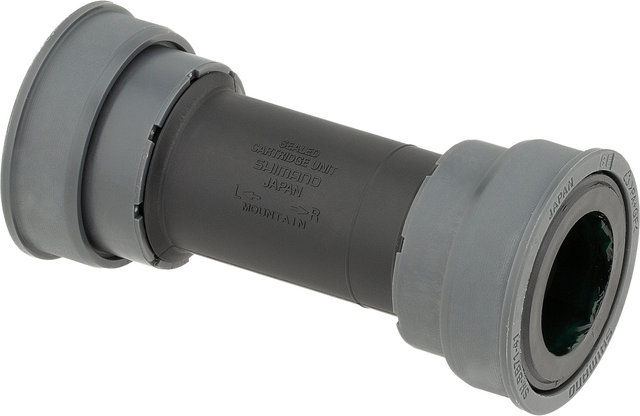

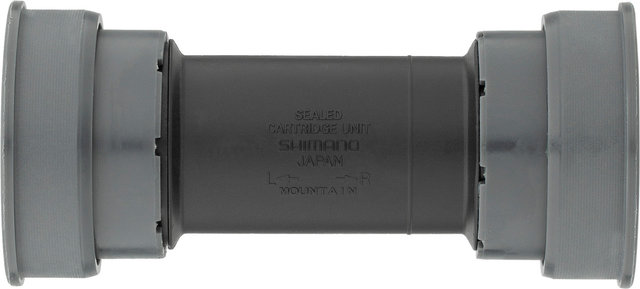

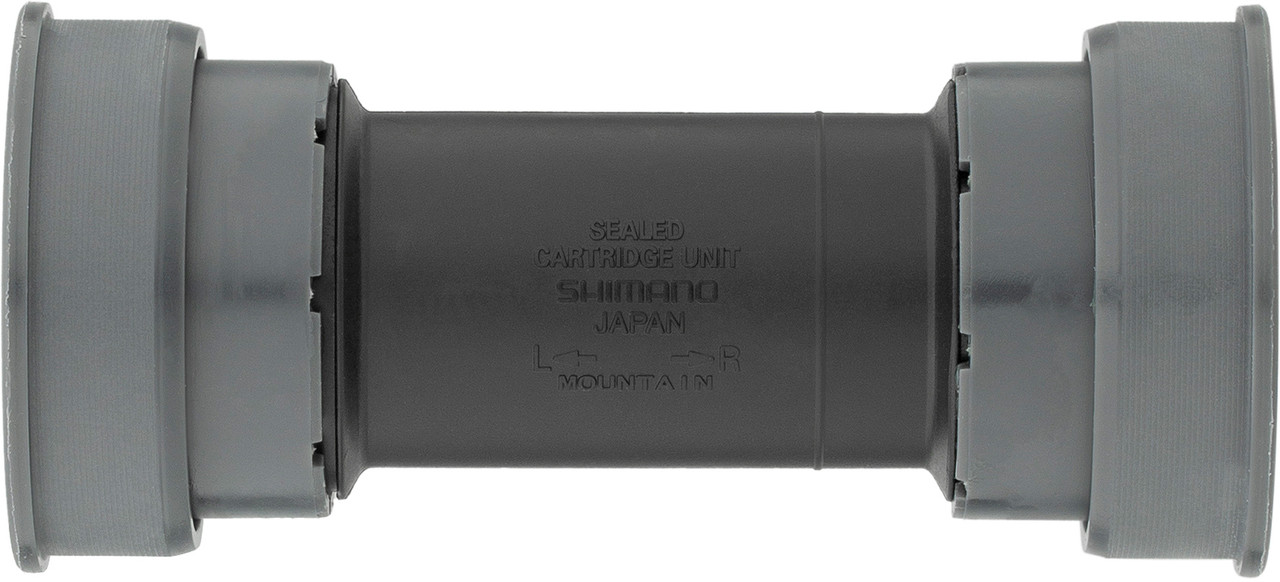

Shimano SM-BB71-41A Hollowtech II Press Fit 41 x 89.5/92 mm Bottom Bracket

The SM-BB71-41A bottom bracket from Shimano - Press Fit for MTB

Shimano SM-BB71-41A is a press fit bottom bracket for MTB use, namely for shell widths measuring from 89 to 92 mm. It is recommended as a press fit variant for Saint and ZEE cranks, but also for older XT 10-speed cranks. Hollowtech II technology with 24 mm axle diameter underscores the special stability of this bottom bracket.

Specifications:

Application:

Cross Country, All Mountain, Downhill, Enduro

Type:

PressFit BB92

Shell Diameter:

41 mm

Shell Width:

89.5 mm / 92 mm

Axle Diameter:

24 mm (Hollowtech II)

Technical Information:

Bearings:

steel

Bottom Bracket Cup Material:

synthetic resin

Bottom Bracket Centre Tube Material:

synthetic resin

Compatibility:

Recommended for:

• Saint FC-M820
• XT FC-M780, FC-M782, FC-M785, FC-T780
• SLX FC-M670, FC-M672, FC-M675, FC-M677
• ZEE FC-M640
• Deore FC-M610, FC-M612, FC-M615
• FC-M622, FC-M625

Technology:

Hollowtech II
Shimano Hollowtech II is a crank bottom bracket system designed to achieve an ideal ratio of stiffness, weight and rotational efficiency. It is based on an integration of the bottom bracket and the right crank arm and works with a 24 mm axle or bearing diameter, which has proven to be optimal in terms of stability. In many cases, the bearing cups are on the outside so that the load is better distributed. High-quality precision seals ensure a long service life.

Manufacturer Number:

I-SMBB7141A

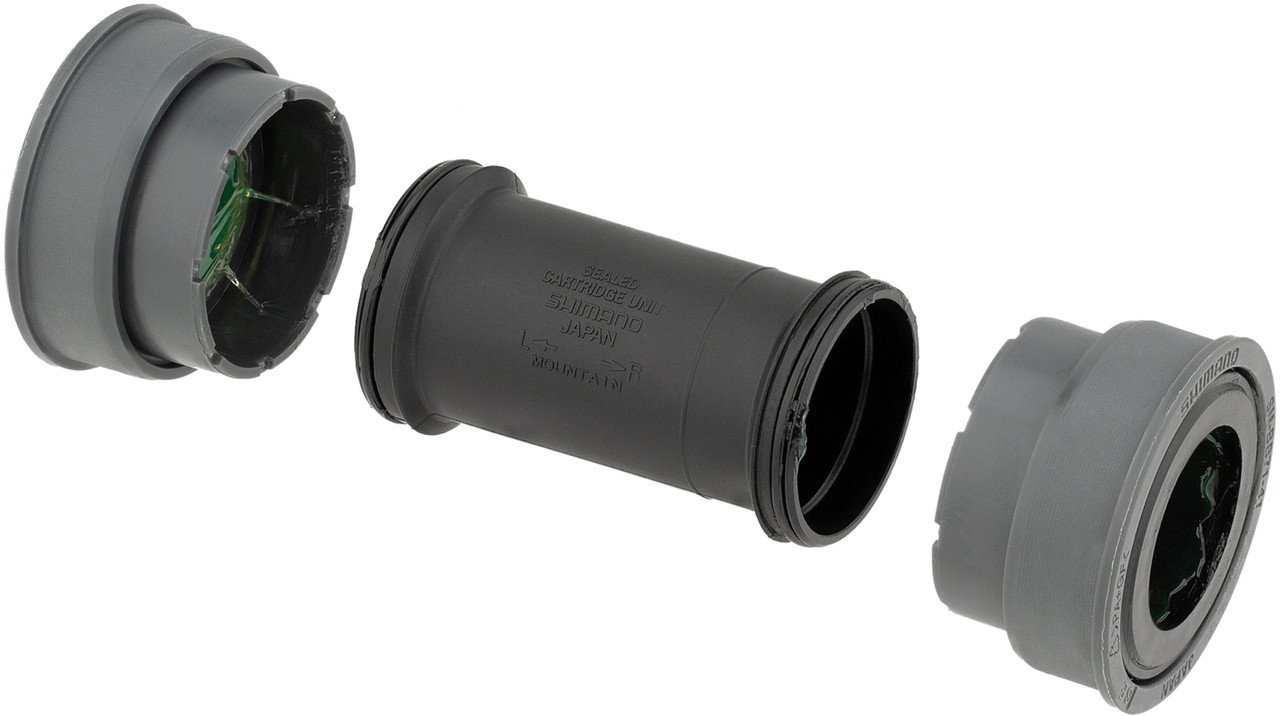

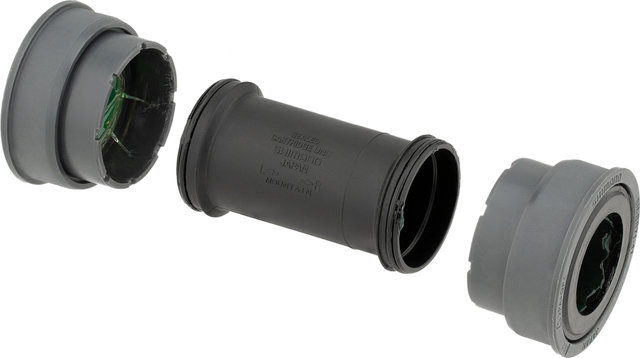

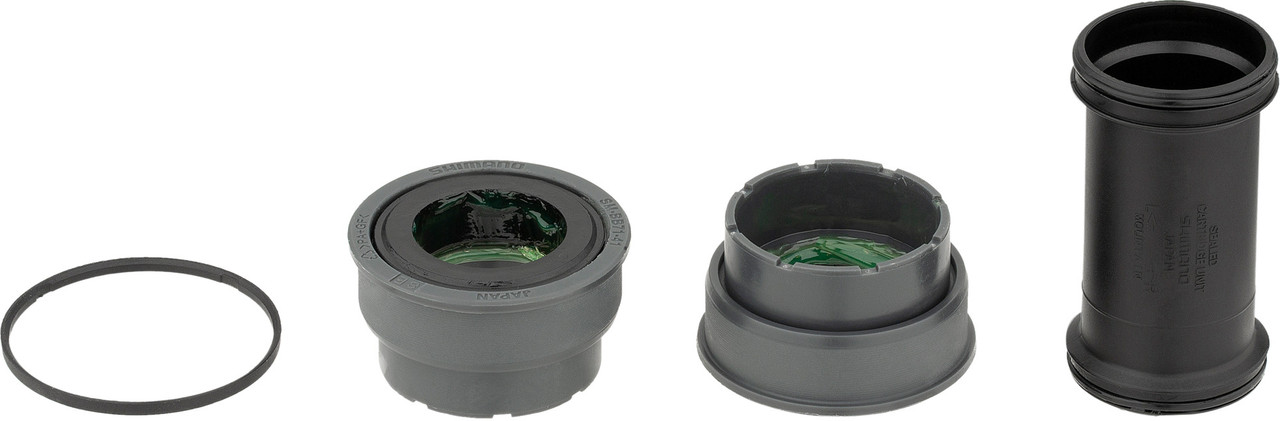

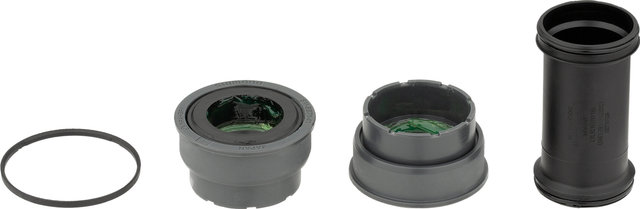

Contents:

• 1 x Shimano SM-BB71-41A right bearing cup, with bearings
• 1 x Shimano SM-BB71-41A left bearing cup, with bearings
• 1 x Shimano bottom bracket centre sleeve
• 1 x spacer 2.5 mm

Order Together:

• installation tool TL-BB12
• removal tool TL-BB13
