Shimano SM-FD905 Adapter for XTR Di2 FD-M9050/M9070, XT Di2 FD-M8070

The Shimano adapter SM-FD905 - mounting of XTR and XT Di2 front derailleurs

With the Shimano adapter SM-FD905 you can mount XTR and XT Di2 front derailleurs with a clamp (high clamp, low clamp), directly to the frame (direct mount) or directly to the bottom bracket (E-Type). Specifically, it is suitable for FD-M9050, FD-M9070 and FD-M8070. The clamps have a diameter of 34.9 mm, but shims for 31.8 and 28.6 mm are included.

Technical Information:

Material:

Aluminium

Chainring Size (max.):

34-40 teeth

Features:

• painted
• Direct Mount and E-Type versions are compatible with B-cranks with 3 mm further out chainline

Compatibility:

• FD-M9050
• FD-M9070
• FD-M8070

Models:

high clamp:

Type:

SM-FD905-H

Mount:

high clamp

Clamp Diameter:

34.9 mm with adapter 31.8/28.6 mm

Manufacturer Number:

I-SMFD905HX

low clamp:

Type:

SM-FD905-L

Mount:

low clamp

Clamp Diameter:

34.9 mm with adapter 31.8/28.6 mm

Manufacturer Number:

I-SMFD905LX

direct mount:

Type:

SM-FD905-D

Mount:

direct mount (seat tube)

Manufacturer Number:

I-SMFD905D

E-type:

Type:

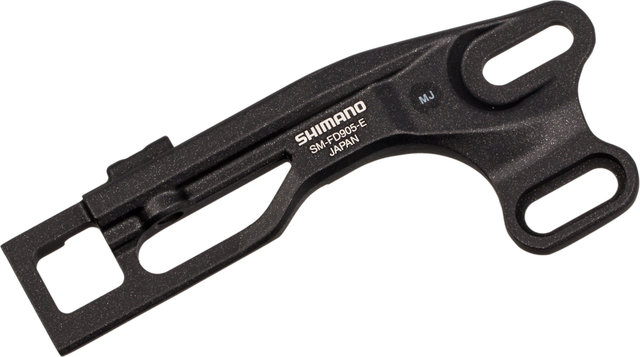

SM-FD905-E

Mount:

bottom bracket mount

Manufacturer Number:

I-SMFD905E

Contents:

• 1 x Shimano SM-FD905 front derailleur adapter
• 1 x 28.6 mm shim (only for high / low clamp)
• 1 x 31.8 mm shim (only for high / low clamp)
