Shimano SM-RT54 Center Lock Brake Rotor w/ Internal Teeth

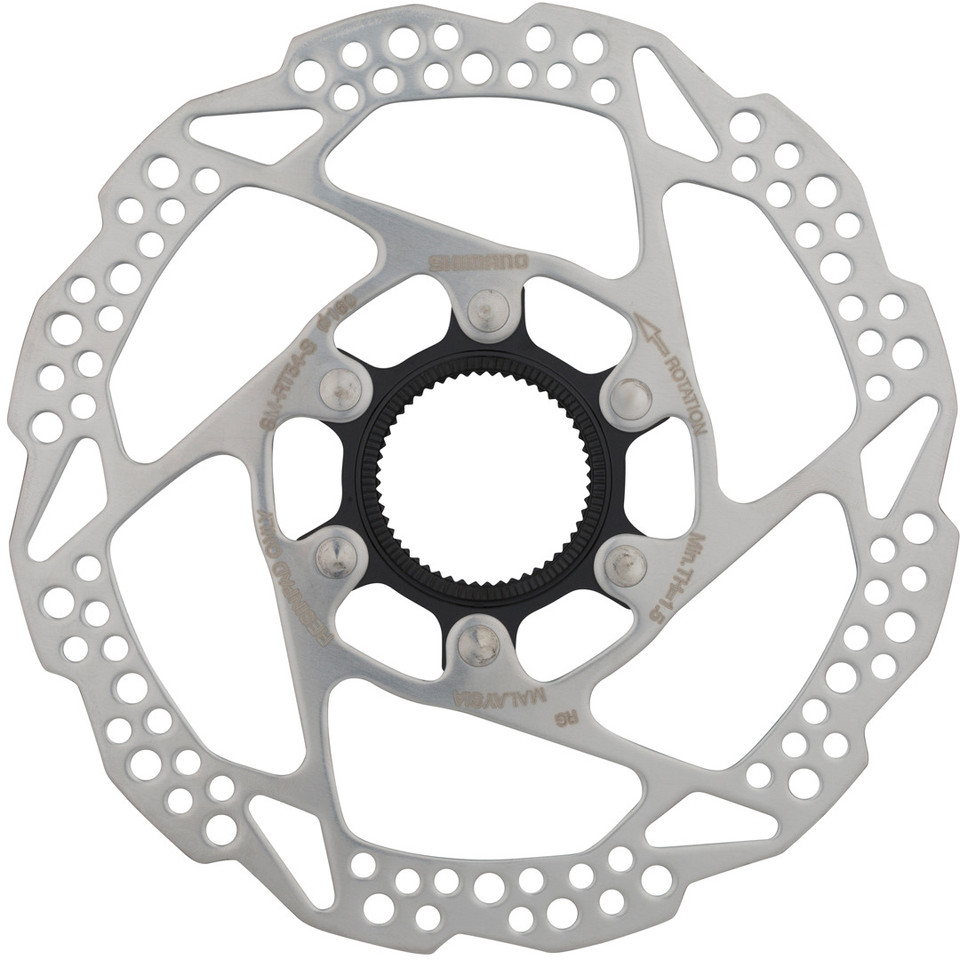

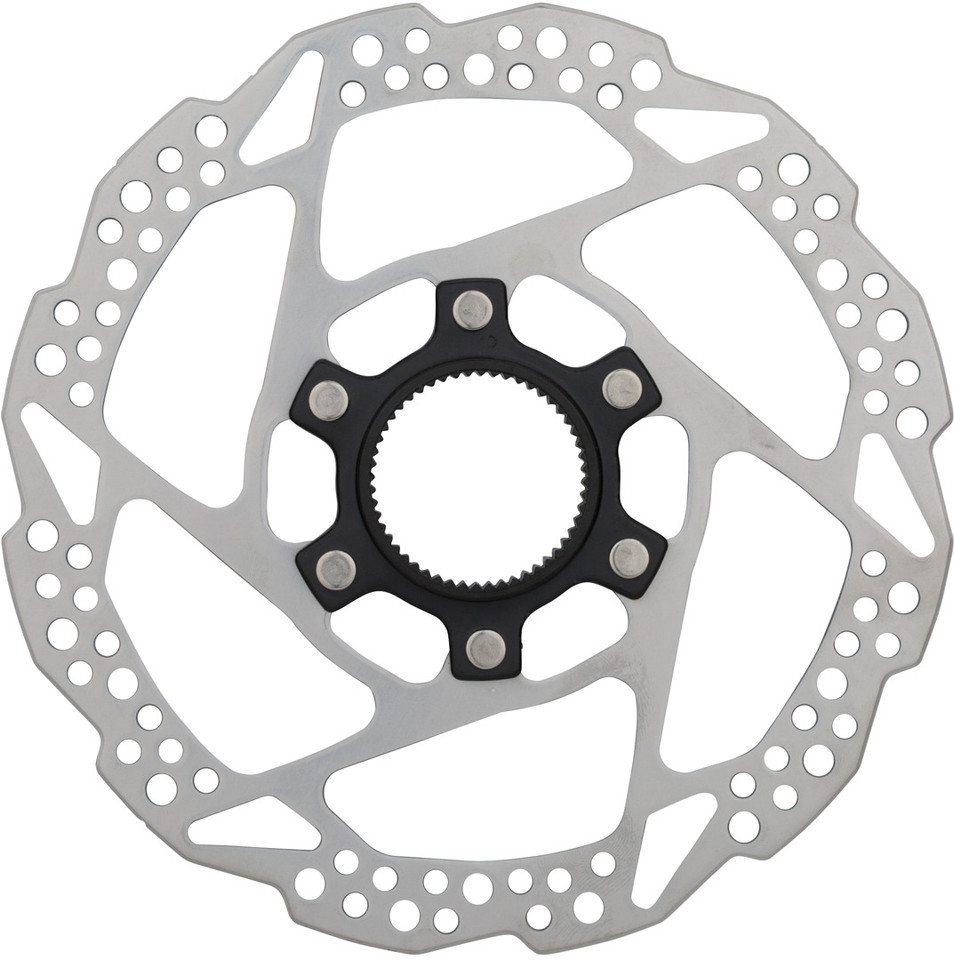

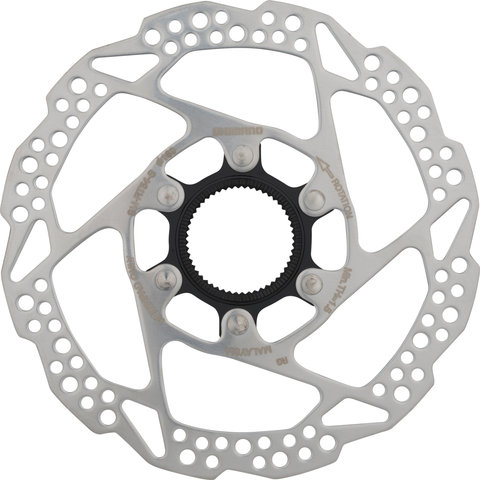

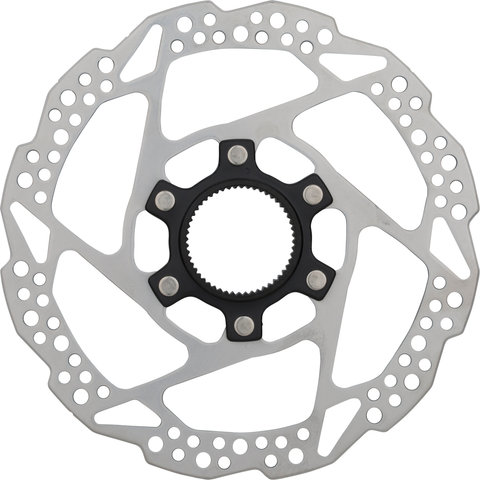

Shimano SM-RT54 Center Lock brake rotor - only for organic pads

The Shimano SM-RT54 brake rotor is compatible with organic brake pads with wide and narrow pad shapes. It consists of a stainless steel body on aluminium spider and comes with a lockring that has the classic internal toothing. Use SM-RT54 for disc brakes from the XTR, XT, SLX, Deore, Saint, ZEE, Alfine series and many other groupless MTB, City & Touring and Road brakes.

Technical Information:

Mount:

Center Lock

Diameter:

160 mm

Design:

2-piece

Rotor Material:

stainless steel

Spider Material:

aluminium

Approved For:

Brake Compatibility:

BR-M9100, BR-M9120, BR-M9110-R, BR-M9000, BR-M9020, BR-M8100, BR-M8120, BR-M8110-R, BR-M8000, BR-M8020, BR-M7100, BR-M7120, BR-M7110-R, BR-M7000, BR-M6100, BR-M6120, BR-M6000, BR-MT520, BR-MT420, BR-M820, BR-M640, BR-U8000, BR-U8020, BR-S7000, BR-S700, BR-MT410, BR-T675, BR-T615, BR-M4050, BR-MT500, BR-M446, BR-MT400, BR-M3050, BR-M395, BR-M375, BR-MT200, BR-M365, BR-M355, BR-M315, BR-TX805, BR-UR300, BR-R9270, BR-R9170, BR-R8170, BR-R8070, BR-R7170, BR-R7070, BR-4770, BR-RS805, BR-R785, BR-RS785, BR-RS505, BR-RS405, BR-RX820, BR-RX820-LE, BR-RX810, BR-RX400

Brake Pad Compatibility:

organic

Compatibility:

• for brake pads with wide and narrow pad shape
• lockring with internal teeth: compatible with 9/10 mm quick release and 12 mm thru-axle
• for 15 mm and 20 mm thru-axles, use the SM-HB20 lockring instead

Features:

• performance indicator: Select (level 1 out of 3)
• heat-treated
• lacquered spider, polished rotor, lockring made of steel, plated (internal gear teeth)

Manufacturer Numbers:

160 mm:

E-SMRT54SI3

Contents:

• 1 x Shimano SM-RT54 brake rotor

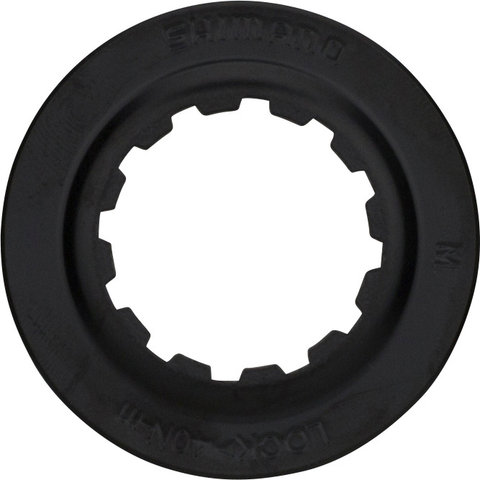

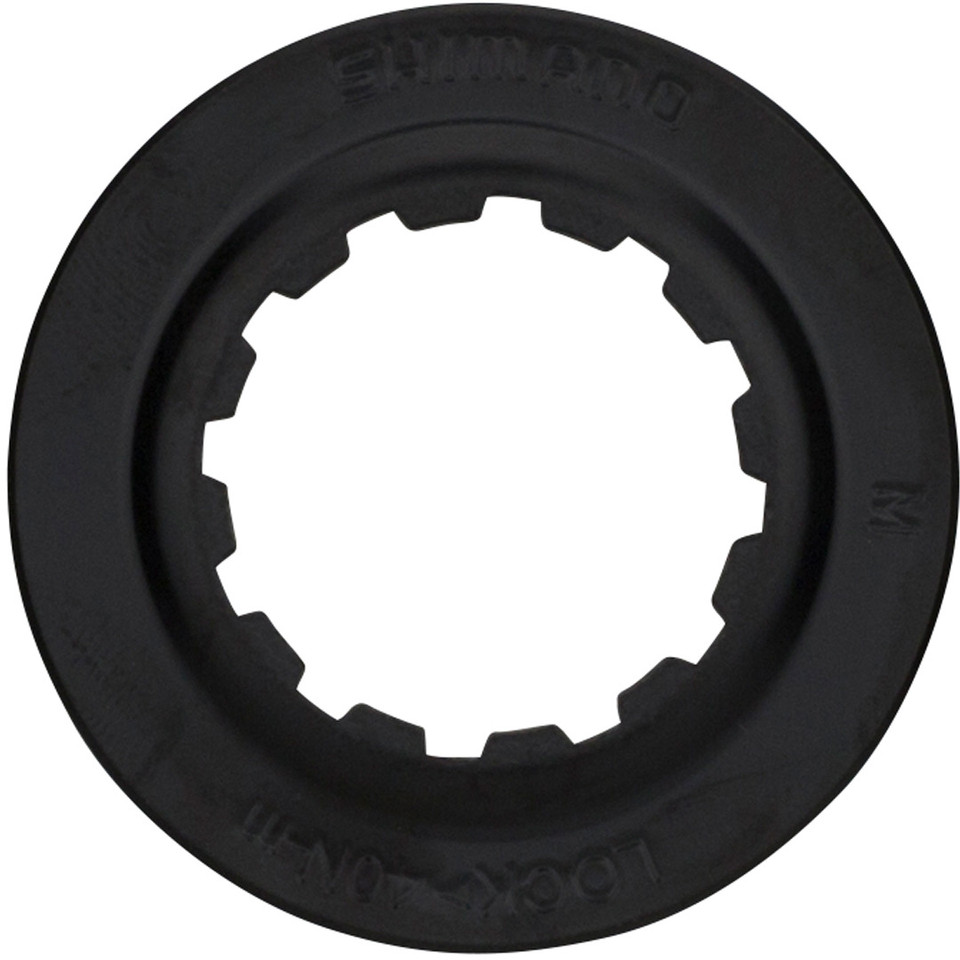

• 1 x lockring (black)
