Shimano SM-RT56 6-bolt Brake Rotor - silver/160 mm

Shimano SM-RT56 6-bolt Brake Rotor

Item number: 75922
8
8

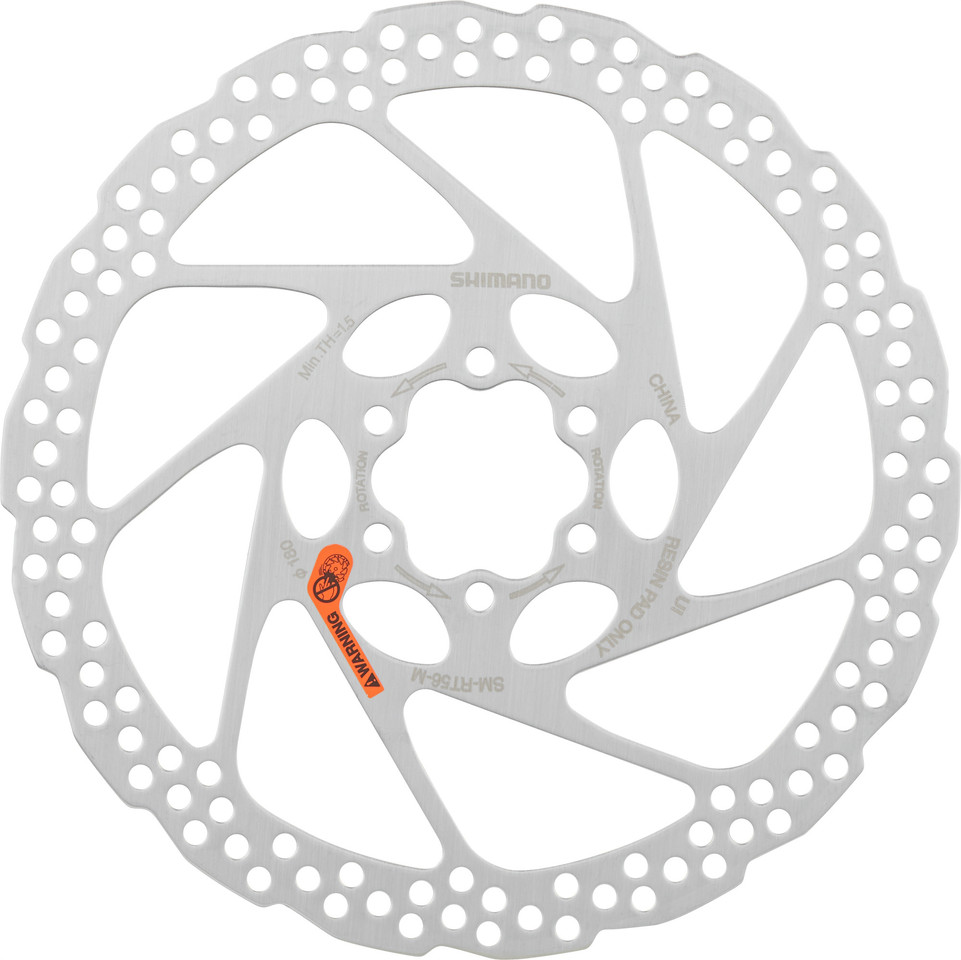

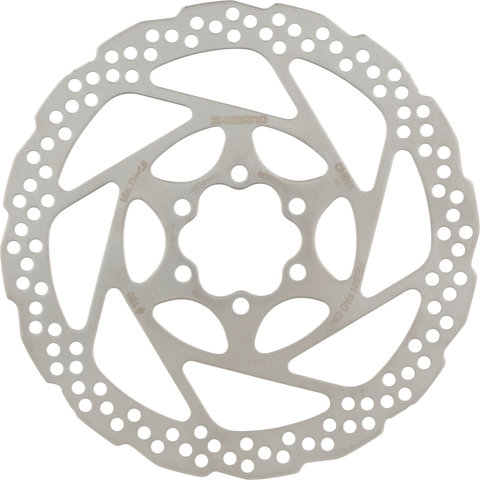

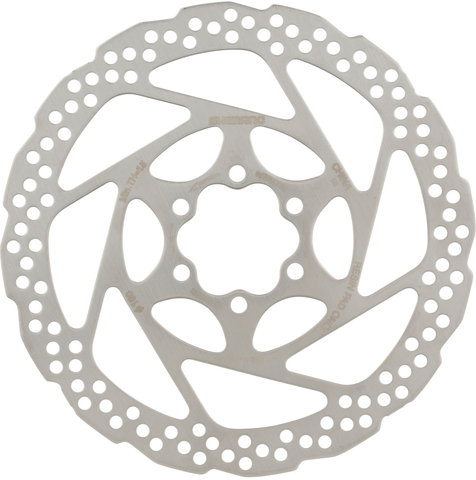

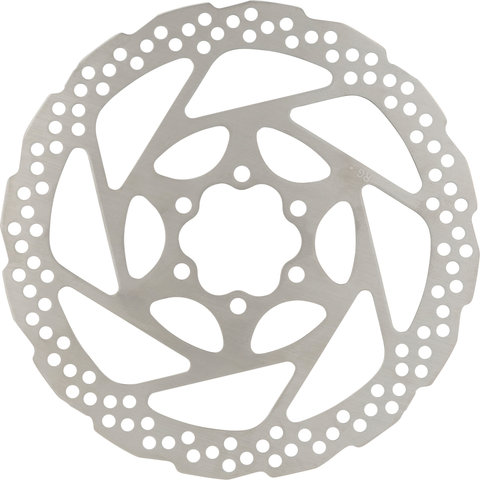

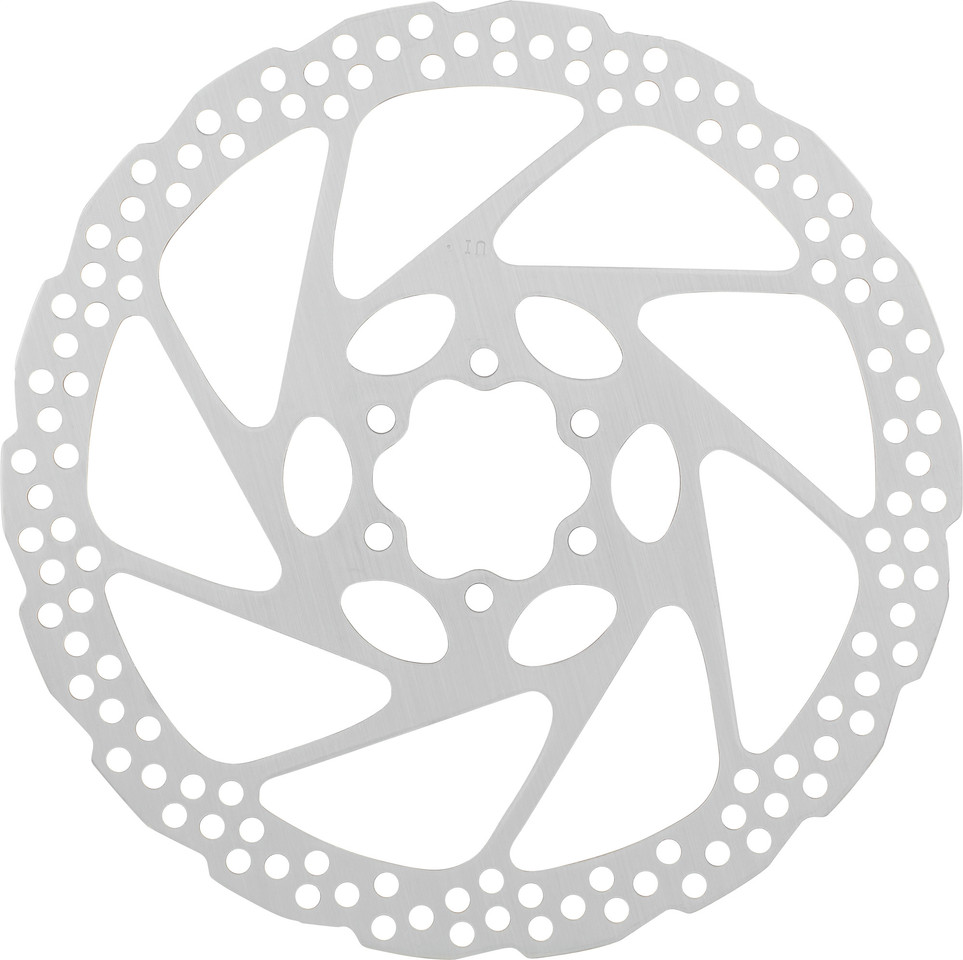

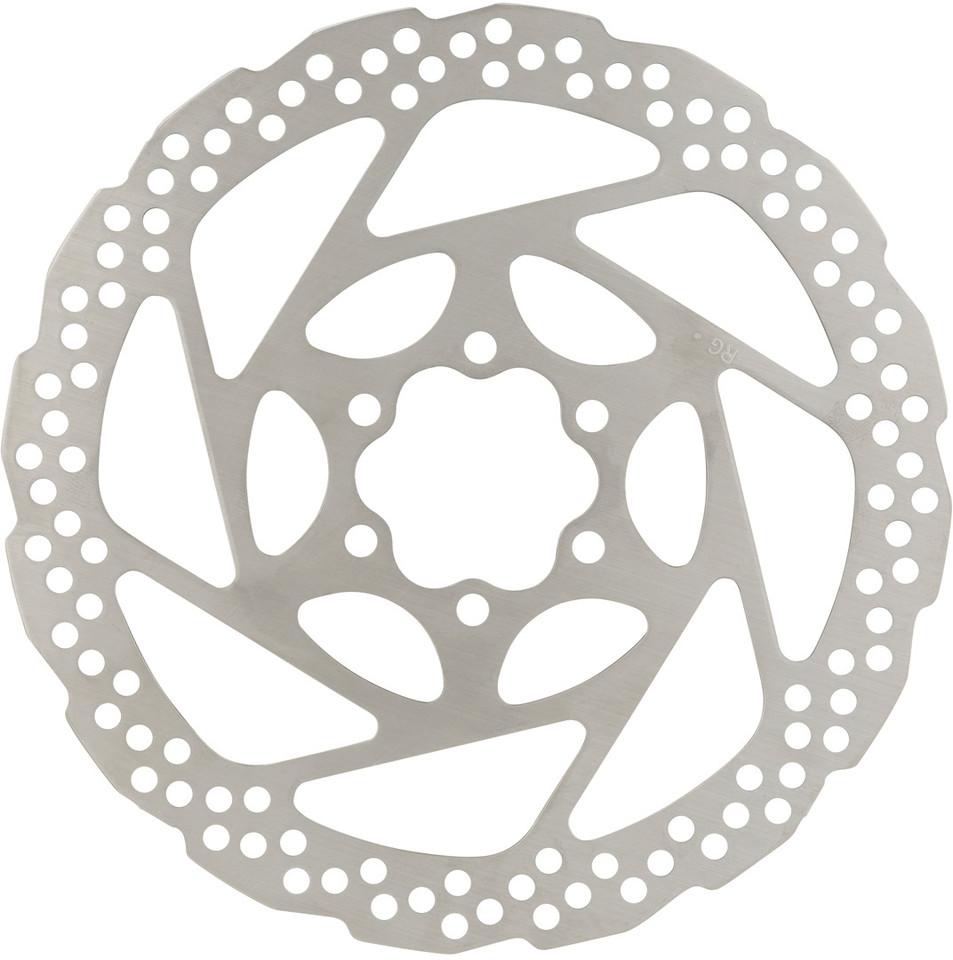

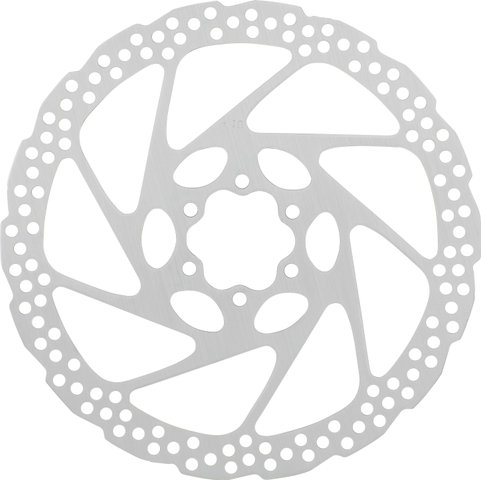

Shimano 6-bolt brake rotor SM-RT56 - heat treated and polished


The Shimano SM-RT56 6-hole brake rotor is made of one-piece moulded stainless steel, which has also been heat-treated and polished. It is available in 160 mm and 180 mm diameter and can be used for XTR, XT, SLX, Deore and many other brakes from the MTB, touring and city sector. Note that SM-RT56 is only compatible with organic brake pads.

Technical Information:

Mount:
6-bolt
Diameter:
160 mm, 180 mm
Design:
1-piece
Rotor Material:
stainless steel

Approved For:

Brake Compatibility:
BR-M9100, BR-M9120, BR-M9110-R*, BR-M9000, BR-M9020, BR-M8100, BR-M8120, BR-M8110-R, BR-M8000, BR-M8020, BR-M7100, BR-M7120, BR-M7110-R, BR-M7000, BR-M6100, BR-M6120, BR-M6000, BR-MT520, BR-MT420, BR-M820, BR-M640, BR-U8000, BR-U8020, BR-S7000, BR-S700, BR-MT410, BR-T675, BR-T615, BR-M4050, BR-MT500, BR-M446, BR-MT400, BR-M3050, BR-M395, BR-M375, BR-MT200, BR-M365, BR-M355, BR-M315, BR-TX805, BR-UR300, BR-R9270*, BR-R9170**, BR-R8170, BR-R8070, BR-R7170, BR-R7070, BR-4770, BR-RS805, BR-R785, BR-RS785, BR-RS505, BR-RS405, BR-RX820, BR-RX820-LE, BR-RX810, BR-RX400
Brake Pad Compatibility:
organic

* 160 mm only
** rear wheel not compatible with 180 mm

Compatibility:

  • for brake pads with wide and narrow pad shape

Features:

  • performance indicator: Select (level 1 out of 3)
  • polished
  • heat-treated
  • with self-locking plates

Manufacturer Numbers:

160 mm:
E-SMRT56SC
180 mm:
E-SMRT56MC

Contents:

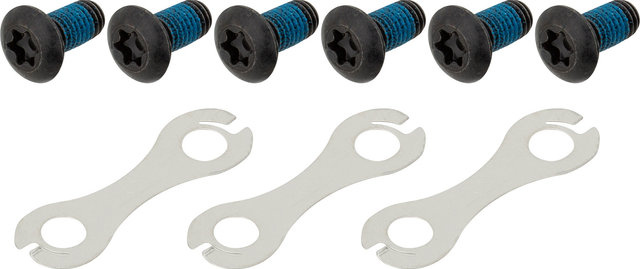

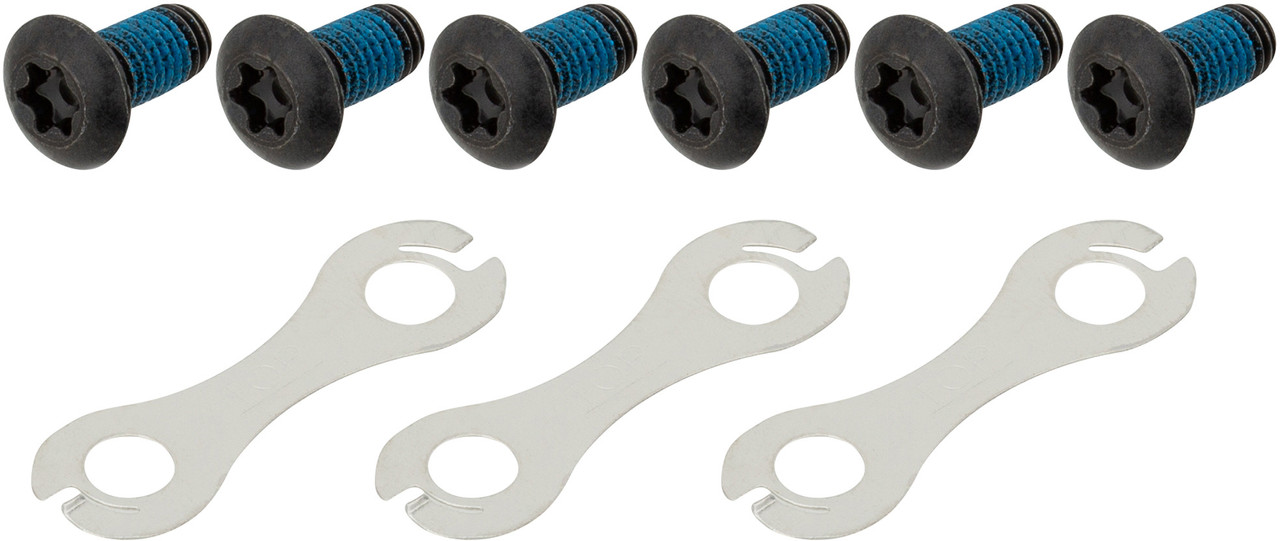

  • 1 x Shimano SM-RT56 brake rotor
  • 6 x Shimano fixing screws
  • 3 x Shimano lock washers

  • 100 day return period
  • Online since 1998

Models:

  • silver/160 mm, in stock
    7.78€
  • silver/180 mm, in stock
    12.11€

Customer Reviews (8)

4.4

Customer Reviews (8)

4.4/5.0
5
5
4
2
3
0
2
1
1
0

Give us your opinion on this product.

by Max G. on 27.11.2022
verified purchase
item: silver/180 mm

Good for the money

Is this review helpful?
by Hannes H. on 15.12.2021 (modified on 15.12.2021)
verified purchase
item: silver/180 mm

I bought the 180mm variant for my budget touring bike, combined with an Avid BB5 and Alhonga drop bar levers I get plenty of power, and did not overheat while descending a mountain with constant braking and roughly 105 kg total weight (me + bike and luggage), which was in the hot summer sun.
That is while we had to stop multiple times to let my girlfriend's rims cool down because her rim brakes were overheating.

Is this review helpful?
by Zoran P. on 08.07.2021
verified purchase
item: silver/180 mm

Great value. I'm basically only using these for resin pads and the RT6x series for metallic pads.

Is this review helpful?
by Johannes N. on 26.04.2021

Awful rotor, I've used it with Shimano Resin pads that came on M615 brakes, the bite was horrible, but that was due the pads, so I swapped to metallic pads, which wore the rotor fast, these really are just for resin pads as claimed.
They overheat fast, upgrading to Hope Tech Floating rotors made a huge difference, they did not get as hot. and had good braking performance for a logn time, it took a long time before I had to sand them with 100 Grit sand paper. I had them in 160 rear and 180 front.
they kept getting glazed.
but with the SM-RT56 it did not help at all, the rotor just kept overheating.

Is this review helpful?
