Shimano SM-RT70 Center Lock Brake Rotor for SLX w/ External Teeth

The SM-RT70 brake rotor for SLX by Shimano - lockring with external toothing

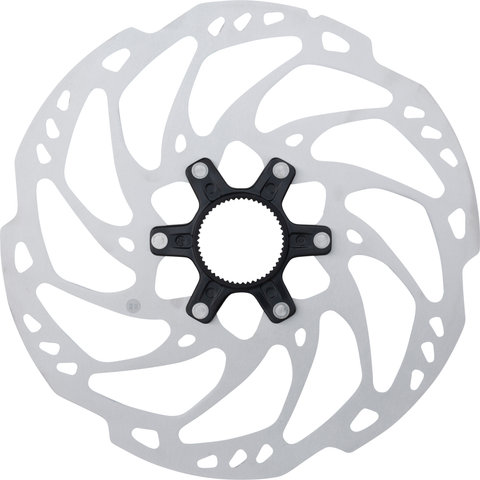

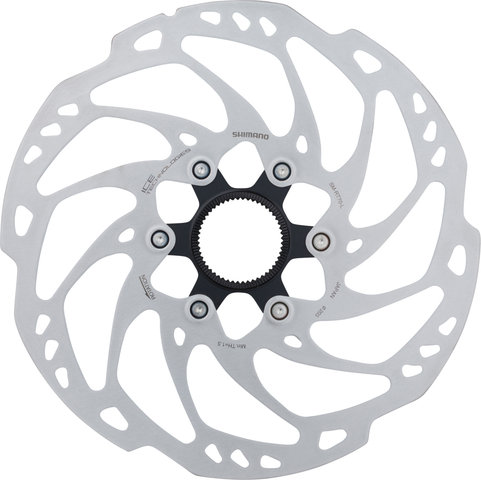

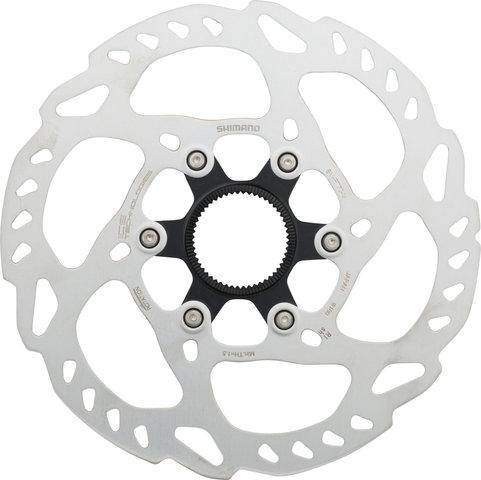

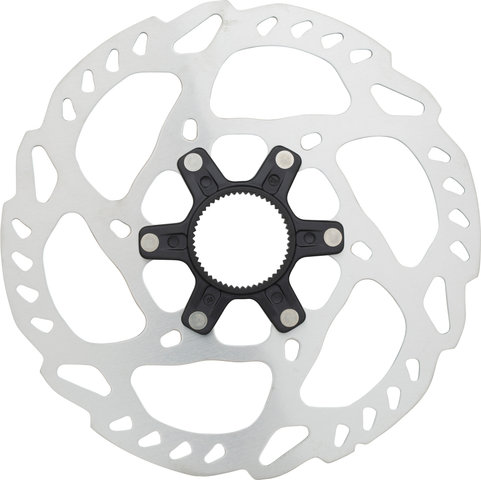

This Shimano SM-RT70 Center-Lock brake rotor is, unlike earlier models, equiped with an externally toothed lockring. The ingenious Ice-Technology, a sandwich composite of two layers of stainless steel with an inner layer of aluminium, has been known for a long time. Even on long descents and difficult trails, this rotor ensures excellent heat dissipation. The SM-RT70 rotor is recommended for newer SLX brakes, but is also compatible with other models.

Guidelines for Replacing E-bike Components:

Before you replace components on your e-bike, please read through the guidelines for component replacement for CE-marked e-bikes/pedelecs with pedal assistance.

Technical Information:

Mount:

Center Lock

Diameter:

180 mm, 203 mm

Design:

2-piece

Rotor Material:

stainless steel outer and aluminium core sandwich construction

Spider Material:

aluminium

Approved For:

Brake Compatibility:

BR-M9100*, BR-M9120, BR-M9000, BR-M9020, BR-M8100, BR-M8120, BR-M8110-R*, BR-M8000, BR-M8020, BR-M7100, BR-M7120, BR-M7110-R*, BR-M7000, BR-M6100, BR-M6120, BR-M6000, BR-MT520, BR-MT420, BR-M820, BR-M640, BR-S7000, BR-U8000, BR-U8020, BR-S700, BR-R9170*, BR-R8170*, BR-R8070*, BR-R7170*, BR-R7070*, BR-4770*, BR-RS805*, BR-R785*, BR-RS785*, BR-RS505*, BR-RS405*, BR-RX820*, BR-RX820-LE*, BR-RX810*, BR-RX400*

Brake Pad Compatibility:

sintered**, organic

* not compatible with 203 mm (BR-R9170-R also not compatible with 180 mm)
** with BR-S700 and BR-S7000 only organic

Compatibility:

• for brake pads with narrow pad shape
• lockring with external gear teeth: also compatible with 15 mm and 20 mm thru-axles (as well as with 12 mm thru-axles and quick releases)

Features:

• performance indicator: Advanced (level 2 out of 3)
• lacquered spider, polished rotor, lockring made of steel, plated (external gear teeth)

Technology:

Ice-Tech
Shimano Ice Technologies provide a fast heat dissipation at your disc brake. The brake pads are equipped with aluminium cooling fins. The brake rotor is constructed using a sandwich technique in which stainless steel encloses an aluminium core. The stainless steel on both flanks ensures long durability, the aluminium allows heat dissipation.

Manufacturer Numbers:

180 mm:

I-SMRT70ME

203 mm:

I-SMRT70LE

Contents:

• 1 x Shimano SM-RT70 brake rotor

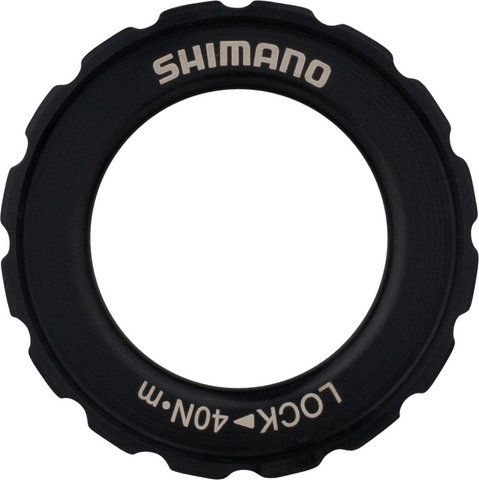

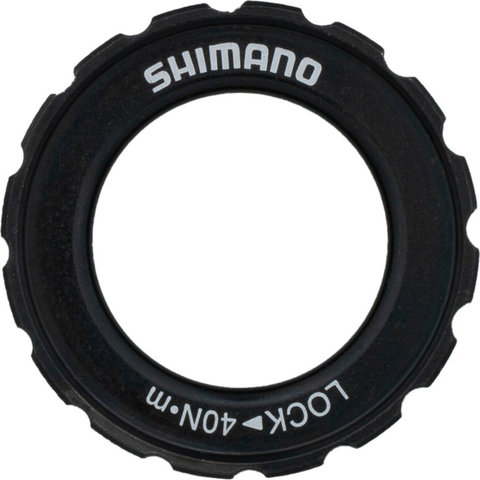

• 1 x lockring with external teeth
