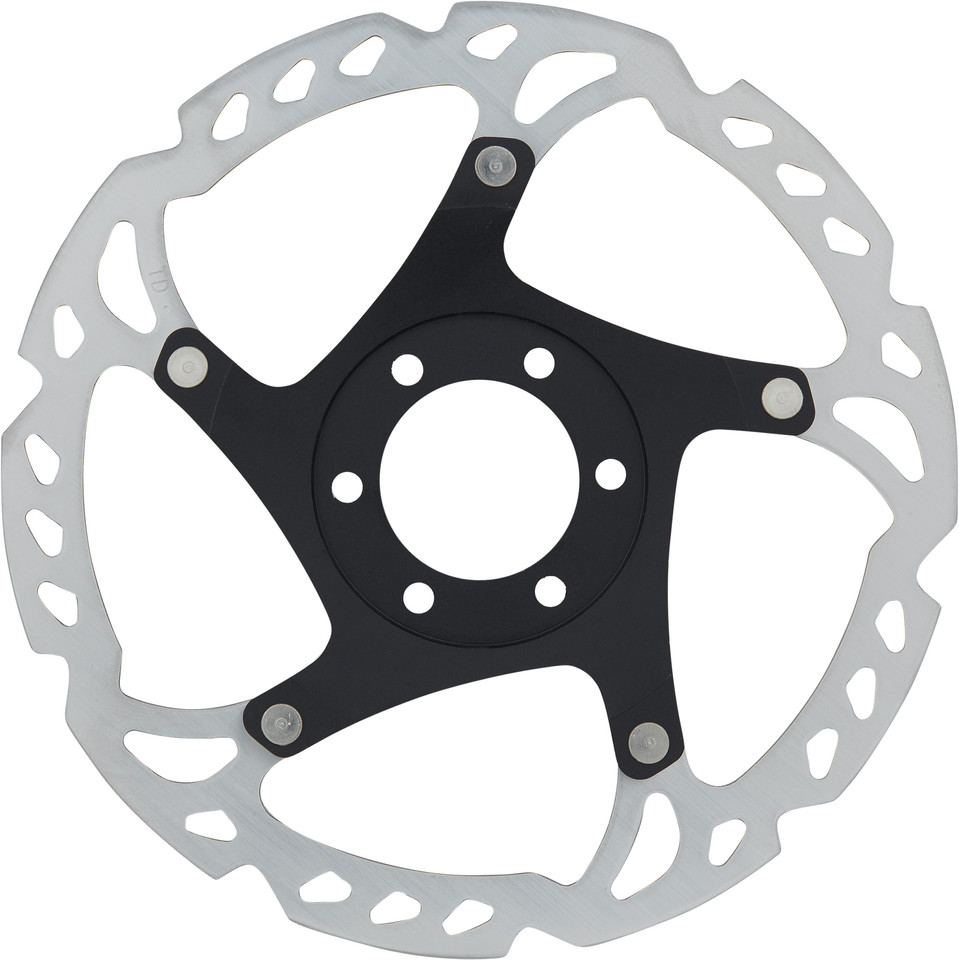

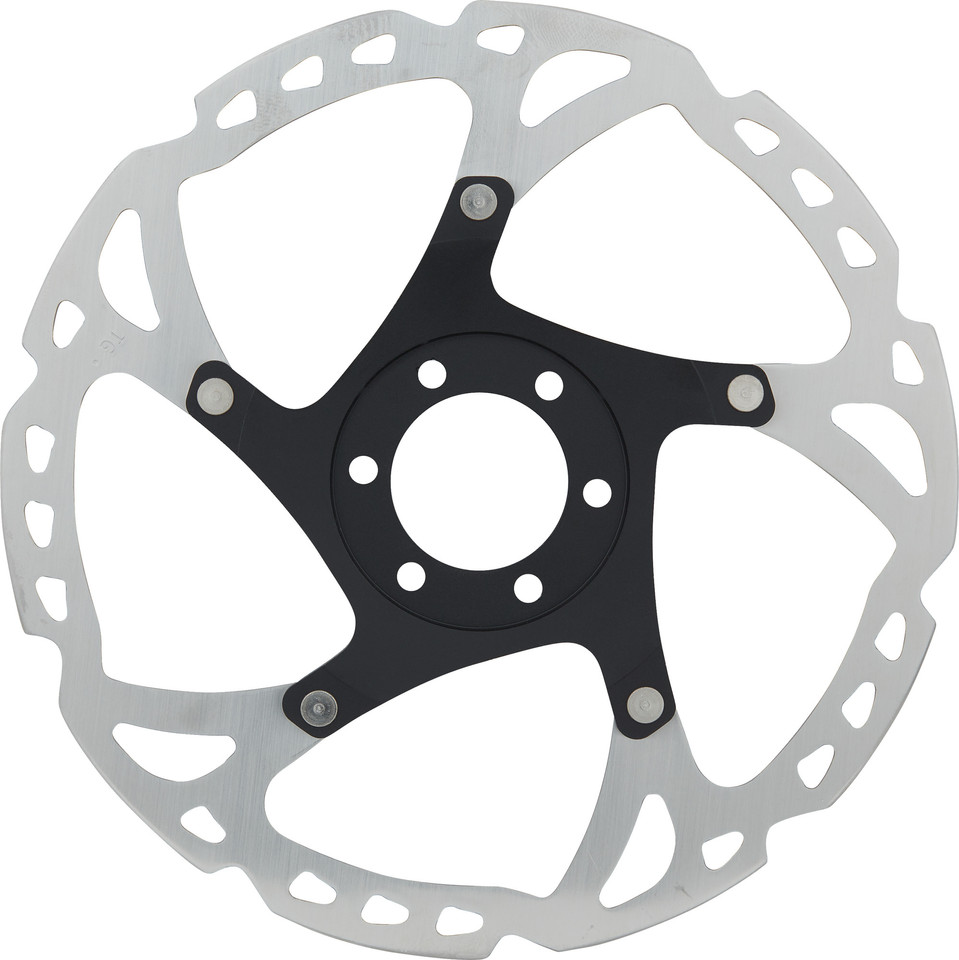

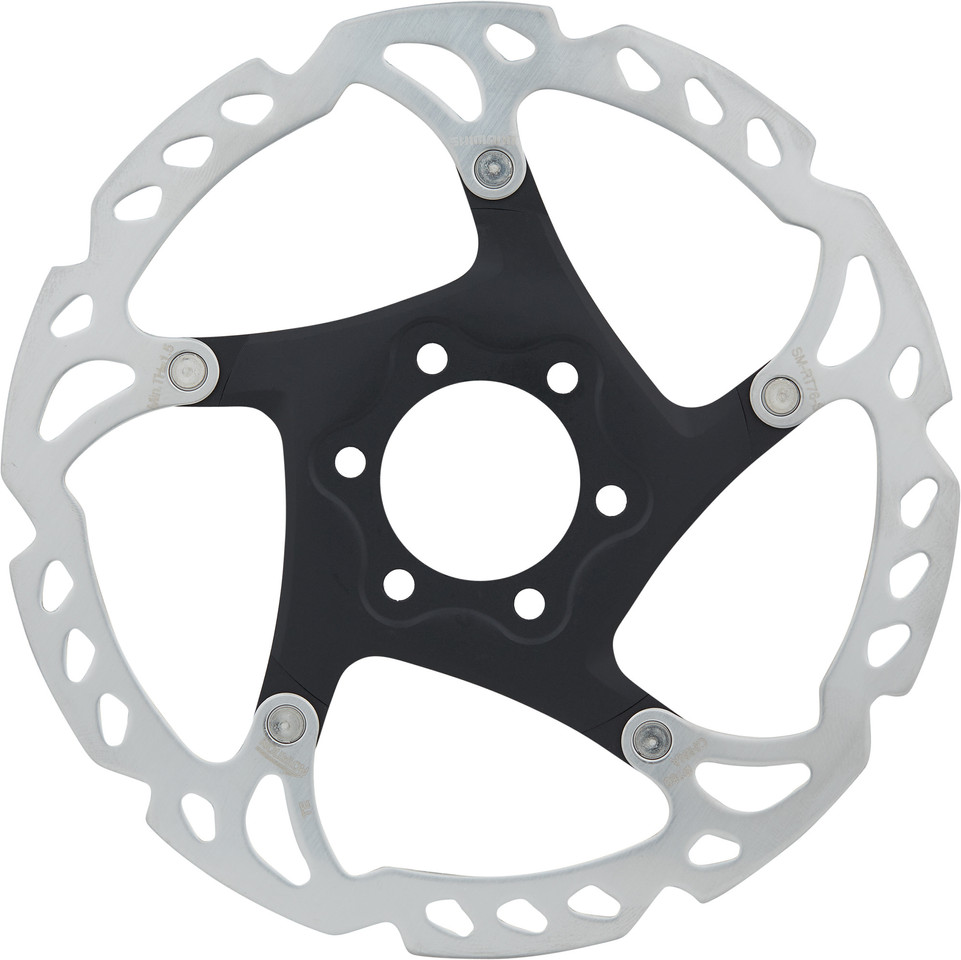

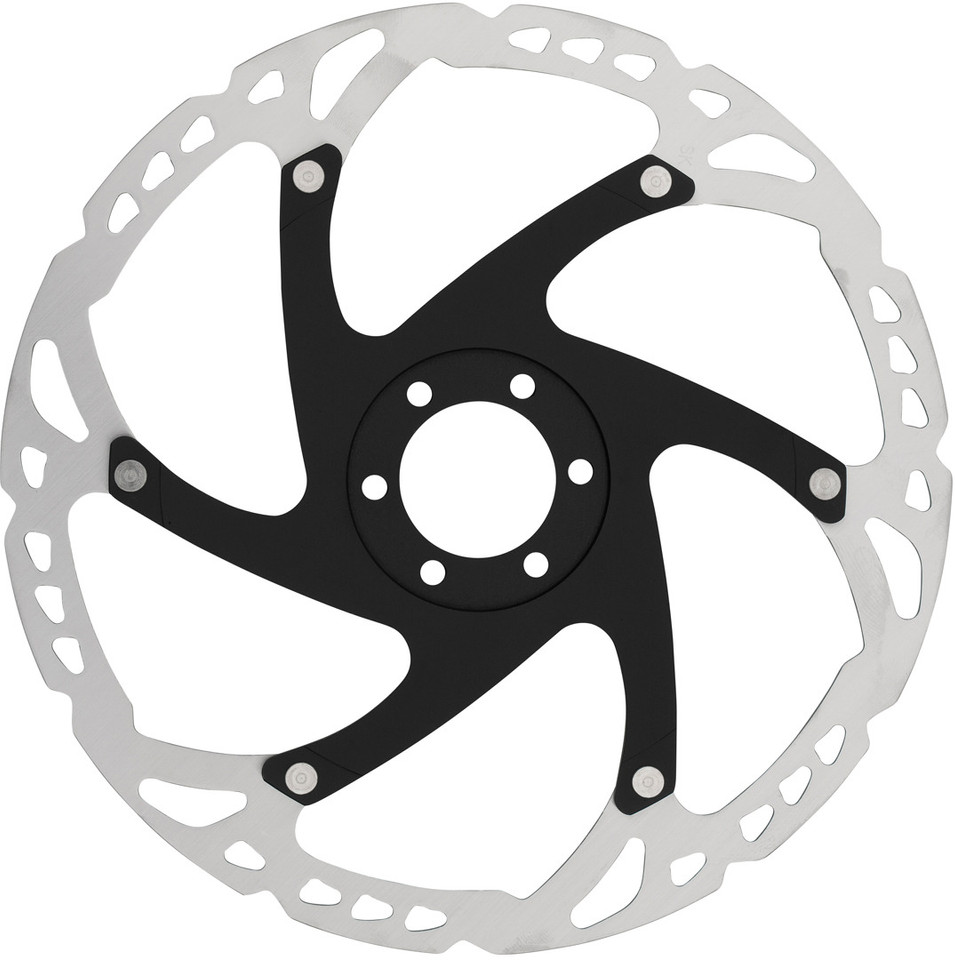

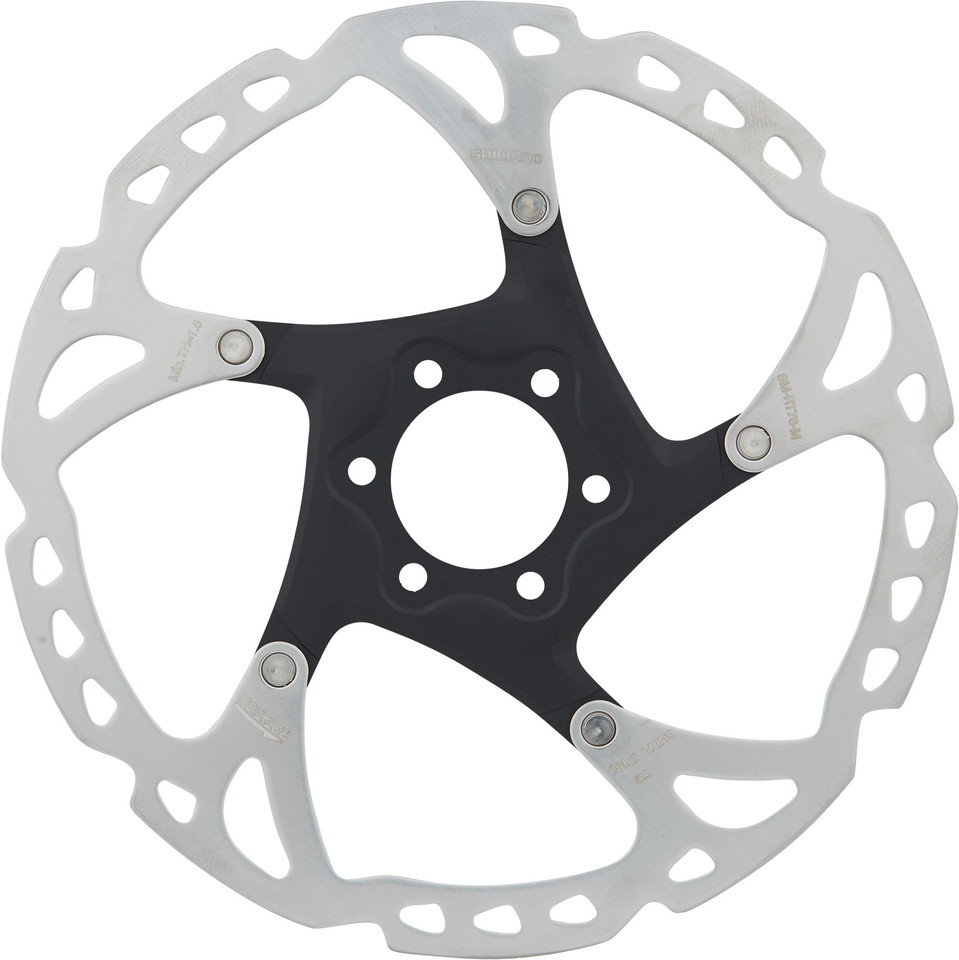

Shimano SM-RT76 6-bolt Brake Rotor for XT

The XT SM-RT76 Brake Rotor by Shimano - Two-piece 6-bolt model

The Shimano SM-RT76 brake rotor comes with 6-bolt mount, is made of stainless steel and has a two-piece design with aluminium spider. It is available in three rotor sizes and fits XT, XTR, Saint, Deore, Metrea as well as many other disc brakes. Use the SM-RT76 brake rotors with metal or resin pads.

Technical Information:

Mount:

6-bolt

Diameter:

160 mm, 180 mm, 203 mm

Design:

2-piece

Rotor Material:

stainless steel

Spider Material:

aluminium

Approved For:

Brake Compatibility:

BR-M9100*, BR-M9120, BR-M9110-R**, BR-M9000, BR-M9020, BR-M8100, BR-M8120, BR-M8110-R*, BR-M8000, BR-M8020, BR-M7100, BR-M7120, BR-M7110-R*, BR-M7000, BR-M6100, BR-M6120, BR-M6000, BR-MT520, BR-MT420, BR-M820, BR-M640, BR-U8000, BR-U8020, BR-S7000, BR-S700, BR-R9270**, BR-R9170*, BR-R8170*, BR-R8070*, BR-R7170*, BR-R7070*, BR-4700*, BR-RS805*, BR-R785*, BR-RS785*, BR-RS505*, BR-RS405*, BR-RX820*, BR-RX820-LE*, BR-RX810*, BR-RX400*, BR-CX77**, BR-R517**, BR-R317**, BR-RS305**, BR-U5000**

Brake Pad Compatibility:

sintered***, organic

* not compatible with 203 mm (BR-R9170-R also not compatible with 180 mm)
** only 160 mm
*** with BR-S700 and BR-S7000 only organic

Compatibility:

• for brake pads with narrow pad shape

Features:

• performance indicator: Advanced (level 2 out of 3)
• self-cleaning design
• better brake pad life
• painted spider, polished rotor
• with self-locking plates

Manufacturer Numbers:

160 mm:

E-SMRT76S2

180 mm:

E-SMRT76M2

203 mm:

E-SMRT76L2

Contents:

• 1 x Shimano SM-RT76 brake rotor
• 6 x Shimano fixing screws
• 3 x Shimano lock washers
