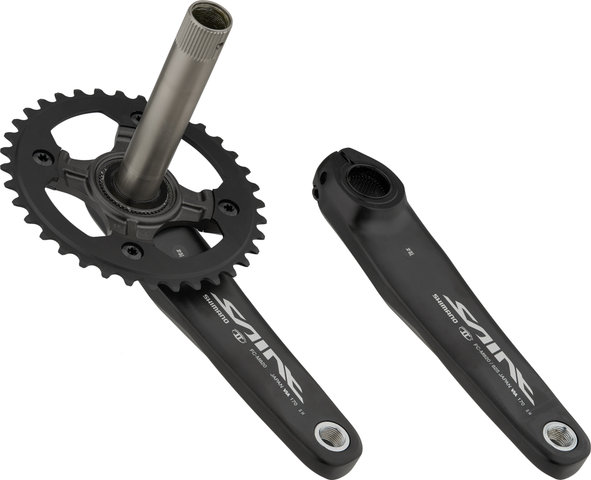

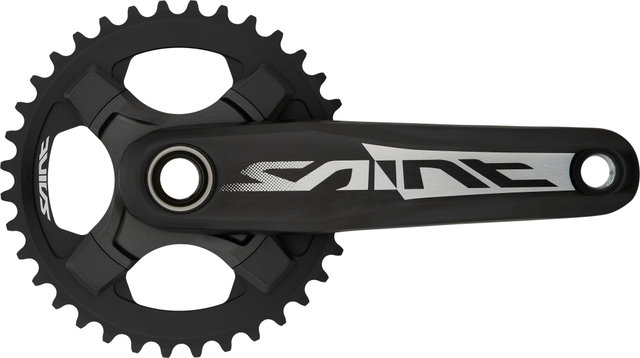

Shimano Saint FC-M820 68/73 mm Hollowtech II Crankset

The Saint FC-M820 crankset by Shimano - The reference in the DH realm

The Shimano Saint FC-M820 10-speed crankset with a 36-tooth chainring is compatible with 68mm and 73mm bottom bracket shells. For many years it has been the reference in downhill sport in terms of indestructibility and performance. With its steel axle, the strongest in the Shimano range, and its steel pedal inserts, it can withstand any ordeal. Weight was also a consideration here, as evidenced by the crank's balanced Hollowtech II construction. The FC-M820 can be optionally equipped with a special chain guide.

Specifications:

Application:

Downhill, Enduro

Compatibility:

Shimano 1x10-speed

Chainring Mount:

104 mm bolt circle diameter, 4-arm

Technical Information:

Series:

Saint M820

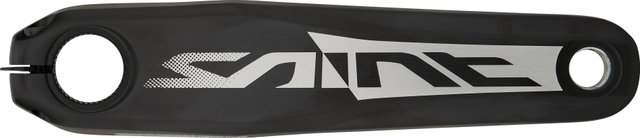

Crank Arm Material:

Aluminium

Chainring Material:

Aluminium

Axle Material:

steel

Gradation:

36-tooth

Crank Arm Length:

165.0 mm, 170.0 mm, 175.0 mm

Chainline:

50.4 mm

Q-Factor:

178 mm

Axle Diameter:

24 mm

Compatible BSA Shell Width:

68 mm / 73 mm

Bottom Bracket:

SM-BB80 Hollowtech II

Recommended Chain:

HG-X 10-speed (e.g. CN-HG95)

Compatibility:

Rear Over Locknut Dimension:

• quick release: 135 mm
• thru-axle: 142 mm

Features:

• strongest steel axle in the Shimano range
• steel pedal inserts
• lightweight 4-arm construction
• anodised crank arms
• anodised chainring

Technology:

Hollowtech II
Shimano Hollowtech II is a crank bottom bracket system designed to achieve an ideal ratio of stiffness, weight and rotational efficiency. It is based on an integration of the bottom bracket and the right crank arm and works with a 24 mm axle or bearing diameter, which has proven to be optimal in terms of stability. In many cases, the bearing cups are on the outside so that the load is better distributed. High-quality precision seals ensure a long service life.

Manufacturer Numbers:

165.0 mm 36 tooth:

I-FCM820AA6X

170.0 mm 36 tooth:

I-FCM820CA6X

175.0 mm 36 tooth:

I-FCM820EA6X

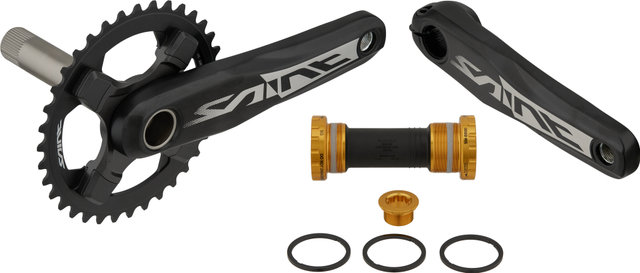

Contents:

• 1 x Shimano Saint FC-M820 crankset (36 tooth)
• 1 x Shimano SM-BB80 Hollowtech II bottom bracket
• 1 x Shimano crank bolt
• 3 x bottom bracket spacers for 68 / 73 mm bottom bracket shells

Order Together:

Optional Accessories:

• SM-CD50 chain guide
• SM-BB71-41A press fit bottom bracket
• 34-/38-Z chainring
