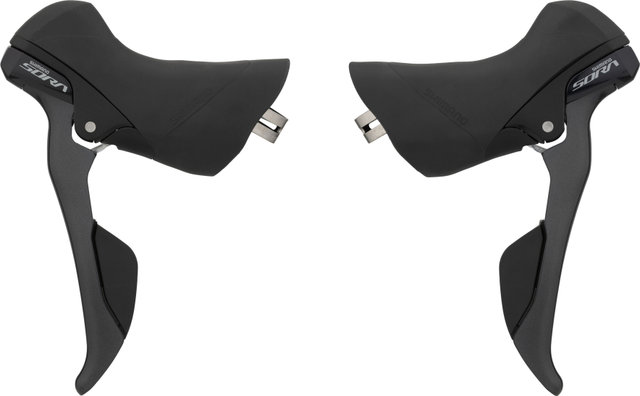

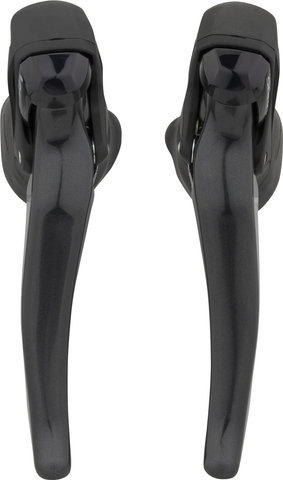

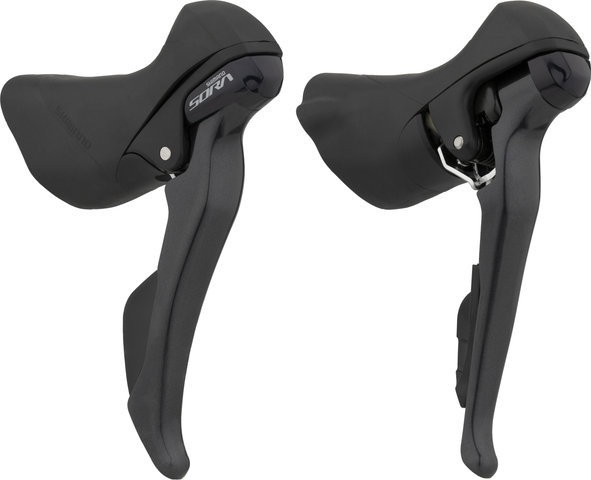

Shimano Sora STI ST-R3000 2-/9-speed Shift/Brake Levers

The Sora ST-R3000 shift/brake levers by Shimano - for pleasure riders

The Shimano Sora ST-R3000 shift/brake lever set consists of two STI Dual Control levers for 2x9-speed shifting and braking. Like all Sora components, it was developed for road cyclists for whom the fun of riding is paramount. Winter training or commuting to work can be other uses. The improved Super SLR technology ensures optimum conversion of the lever travel into braking force. Shift cables with friction-reducing Optislick coating and outer sleeves are included.

Specifications:

Series:

Sora R3000

Application:

Road, City

Gearing:

2-speed, 9-speed

Shifting System:

mechanical

Brake Type:

mechanical

Technical Information:

Brake Lever Material:

Aluminium

Lever Body Material:

composite material (GFRP)

Mount:

clamp (closed)

Reach Adjust:

bolt

Adjustment Options:

reach adjust

Compatibility:

Clamp Diameter:

23.8 - 24.2 mm

Front Derailleur:

FD-R3000

Crank:

FC-R3000, FC-3550, FC-R350, FC-R450, FC-R345

Rear Derailleur:

RD-R3000, RD-3500

Cassette:

CS-HG400-9, CS-HG300-9, CS-HG50-9, CS-HG30-9, CS-HG20-9

Chain:

CN-7701, CN-HG93, CN-HG73, CN-HG53

Brake Caliper:

BR-R9200, BR-R9210, BR-R9100, BR-R9110, BR-9000, BR-9010, BR-7900, BR-R8100, BR-R8110, BR-RS811-R, BR-R8000, BR-R8010, BR-6800, BR-6810, BR-6700, BR-R7000, BR-R7010, BR-5800, BR-5810, BR-5710, BR-5700, BR-4700, BR-4600, BR-R3000, BR-3500, BR-R561, BR-R2000, BR-CX70, BR-CX50, BR-CX77, BR-R517, BR-R317, BR-RS305, BR-R650*, BR-R451*, BR-R450*, BR-R550*

* with reduced braking force

Features:

• dual control shift/brake lever with internal cable routing
• tidy cockpit
• compatible with standard 9-speed rear derailleurs
• Optislick inner cable with a minimal galvanic coating for more efficient cable routing and corrosion resistance
• OT-SP41 cable housing on lever side, OT-SP41 sealed to rear derailleur
• painted main lever

Technology:

STI Dual Control
Shimano Total Integration (STI) means the combination of braking and shifting functions in one lever, which increases safety when riding. By refining the technology, it became possible to make shifting so smooth at the front and rear that they can be triggered with just one finger. Shimano calls such levers Dual Control Levers (DCL).

New Super SLR
SLR stands for Shimano Linear Response. In its " new" version, this braking system is designed for maximum friction reduction in the brake caliper, brake lever and inner cable. This improves the brake's responsiveness and dosage.

Models:

2x9-speed:

Gearing:

2-speed, 9-speed

Manufacturer Number:

E-STR3000DPA

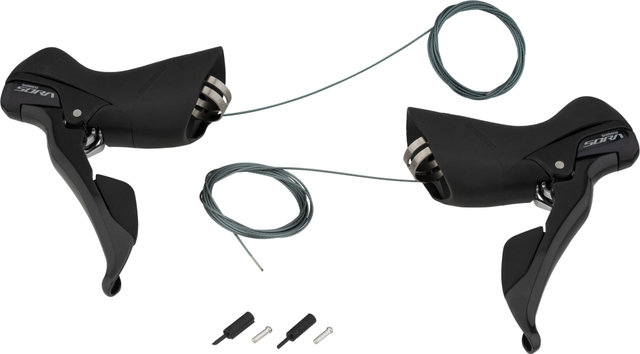

Contents:

• 1 x pair Shimano Sora ST-R3000 shift/brake levers
• 2 x Shimano shifter cable
• 2 x Shimano brake cables
• 3 x shifter cable housings
• 2 x brake cable housings
