Shimano TL-BR003 Funnel Bleed Kit for BL Brake Levers

Shimano Funnel Bleed Kit TL-BR003 for MTB type BL brake levers with M5 connection

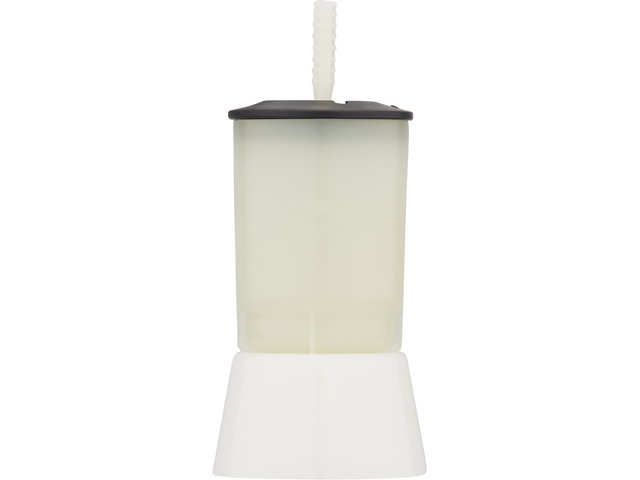

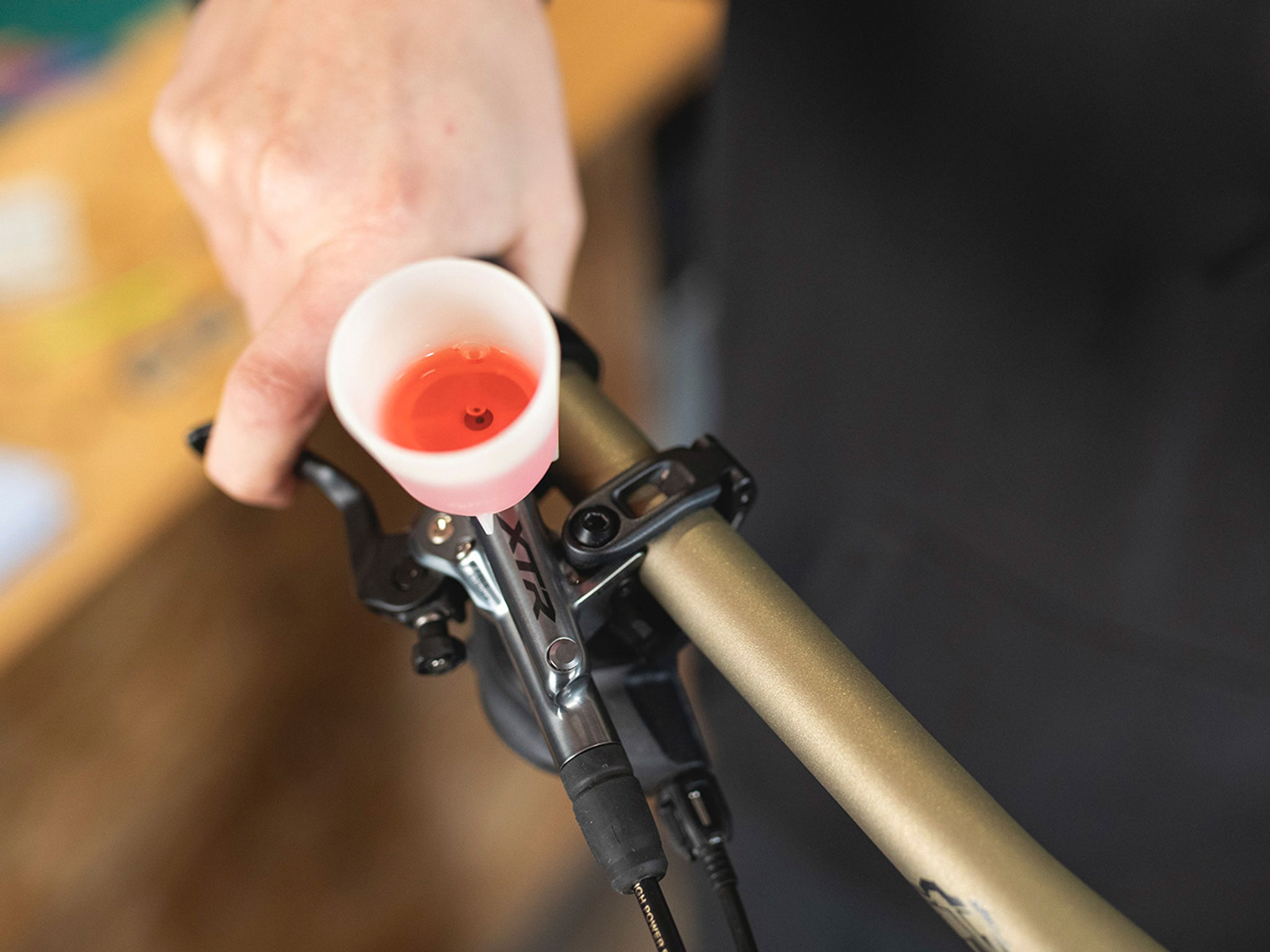

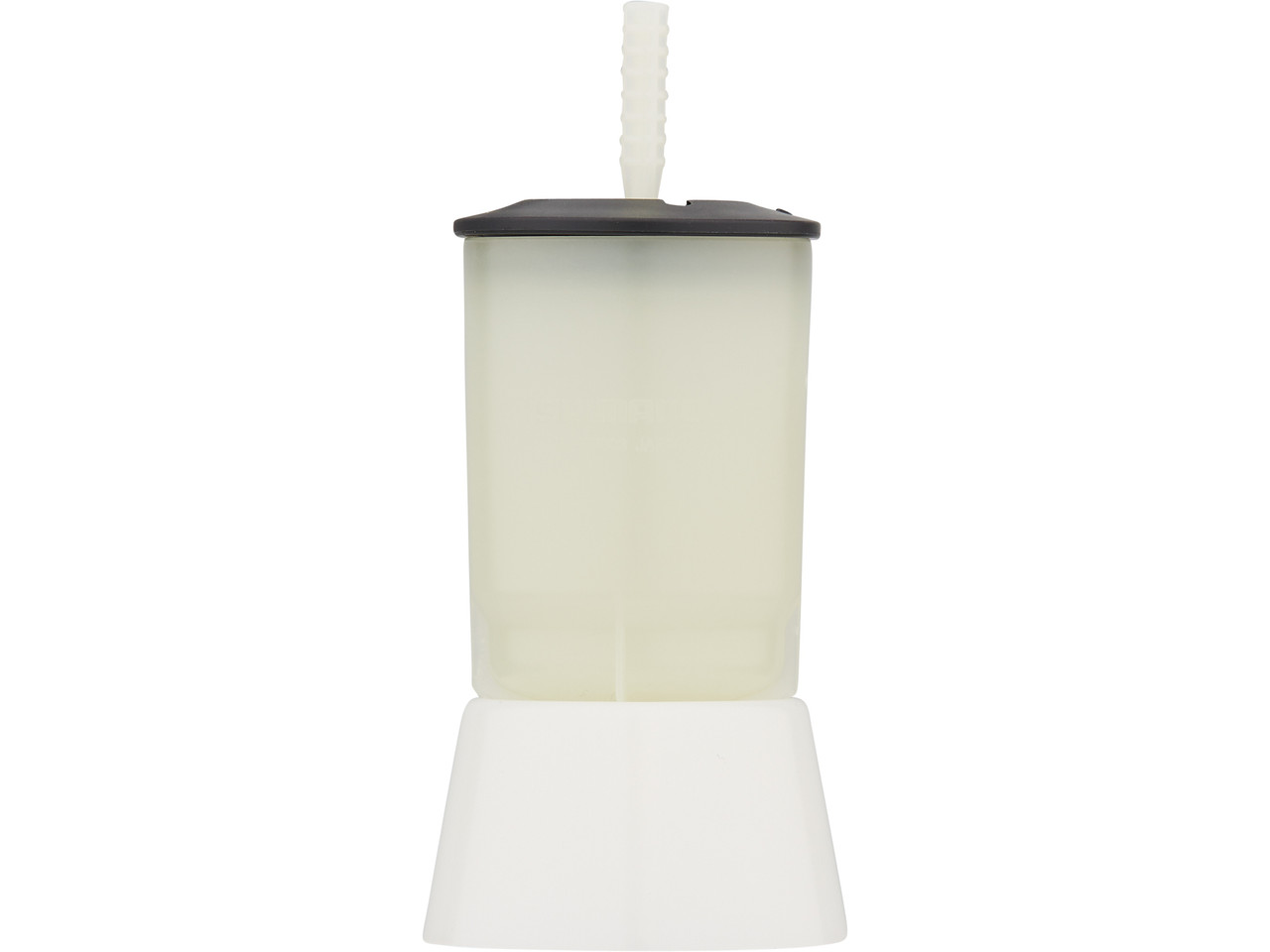

The TL-BR003 funnel bleed kit contains all parts that have to be used for bleeding newer Shimano disc brake systems with brake levers of the BL type on the master cylinder side. These brake levers are common in MTB and touring use and have a bleed screw with an M5 thread. The TL-BR003 oil funnel is fitted directly here after removing the O-ring. Occasionally, for example in the city bike segment, there are also ST brake grips with M5 connections, so the set can also be used there. The funnel impresses with its generous volume and is made of durable, robust plastic. The kit also includes a cap and an oil stopper to prevent mineral oil from escaping during the bleeding process.

Specifications:

Function:

brake bleeding

Tool Type:

bleed kit

Size:

M5 x 0.8 mm

Compatibility:

Hydraulic Brake Levers by Shimano with M5 Bleed Screw:
XTR:

• BL-M9120
• BL-M9100
• BL-M9020
• BL-M9000
• BL-M988
• BL-M985

XT:

• BL-M8100
• BL-M8000
• BL-M785

Saint / ZEE:

• BL-M820
• BL-M640

SLX:

• BL-M7100
• BL-M7000
• BL-M675
• BL-M666

Deore:

• BL-M6100
• BL-M6000
• BL-M596
• BL-M615

Alivio / Acera:

• ST-M4050
• ST-M3050

Alfine:

• BL-S7000
• BL-S700

CUES:

• BL-U8000

Metrea:

• BL-U5010-L (adapter required)
• BL-U5000 (adapter required)
• ST-U5060 (adapter required)

Trekking:

• BL-T785
• BL-T675
• BL-T615
• BL-T445
• BL-T6000
• BL-T8000
• BL-T8100(-LE)

Other:

• BL-RS600
• BL-M575
• BL-M506
• BL-M445
• BL-M425
• BL-M395
• BL-M396
• BL-M365
• BL-M355
• BL-M315
• BL-M4100
• BL-MT500
• BL-MT501
• BL-MT400
• BL-MT401(-3A)
• BL-MT402-3A
• BL-MT200
• BL-MT201
• ST-EF505

Manufacturer Number:

Y-13000100

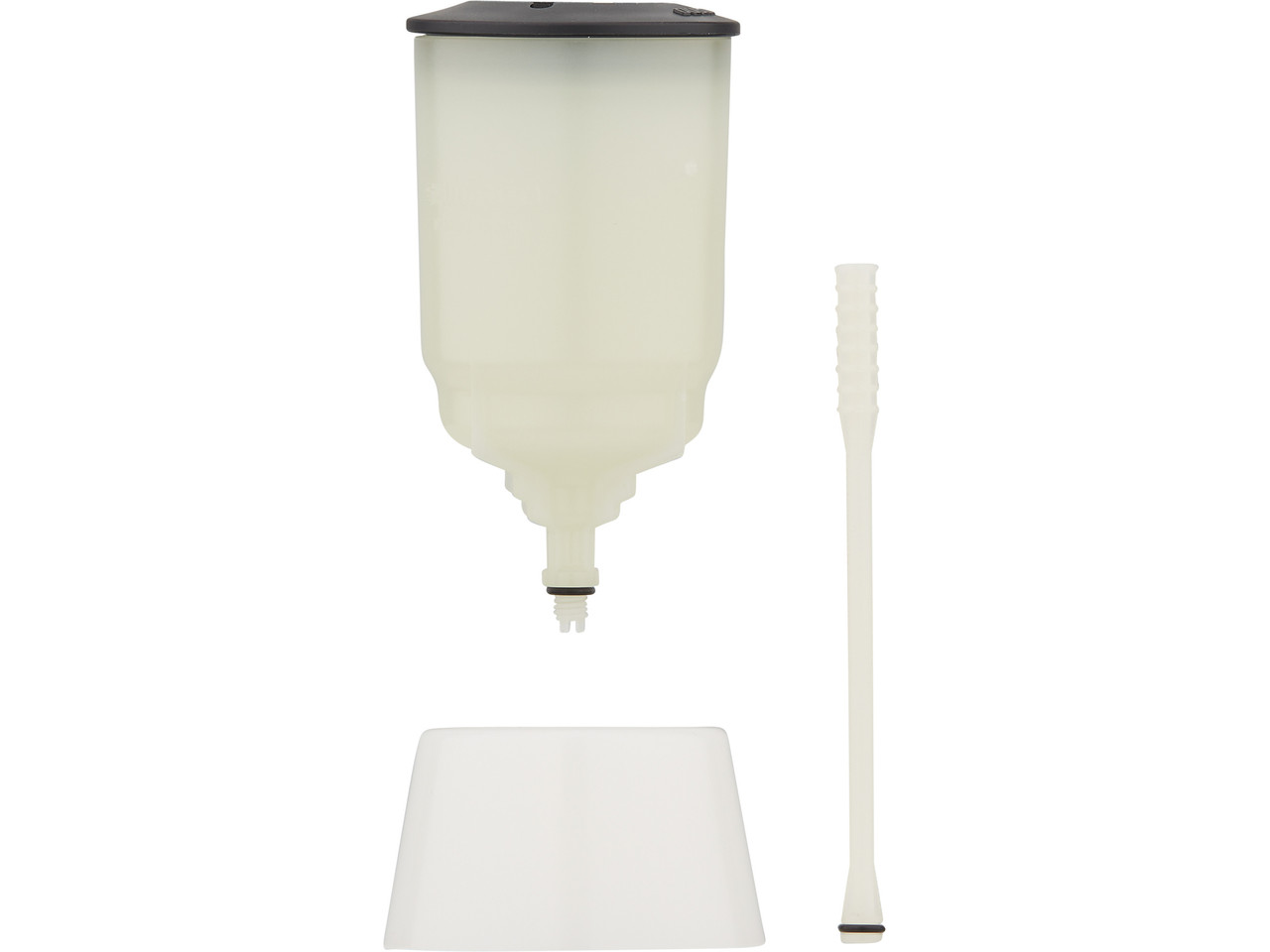

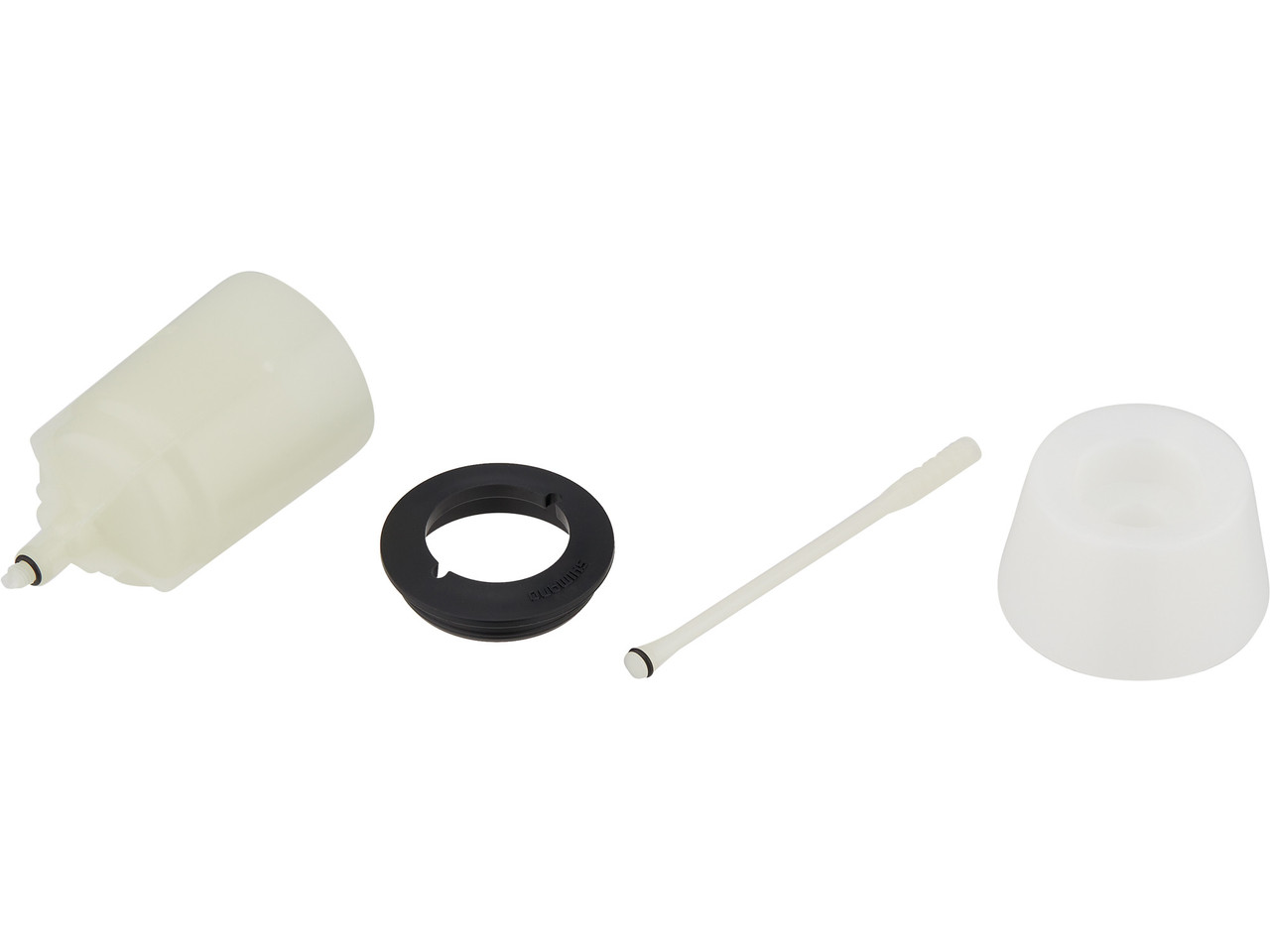

Contents:

Shimano TL-BR003 Funnel Bleed Kit for BL brake levers, consisting of:

• 1 x oil funnel
• 1 x funnel foot
• 1 x funnel lids
• 1 x oil stoppers
