Shimano Tiagra FD-4703 3-/10-speed Front Derailleur

The Tiagra front derailleur FD-4703 by Shimano - for smooth front shifting

The Shimano Tiagra front derailleur FD-4703 can be used for three chainrings, the largest of which may have 50 teeth. In combination with a 10-speed rear derailleur, this results in a smooth and reliable shifting function on a road or city bike. The front derailleur is compatible with modern HG-X Mountain bike chains, which are guided very safely thanks to the fine tuning. The parallelogram is made of light aluminium, the cage plates are made of steel. The FD-4703 is available for clamp and braze-on mounting.

Specifications:

Series:

Tiagra 4700

Application:

Road, City

Gearing:

3x (combined w/ 10-speed)

Chainstay Angle:

63-66°

Chainline:

45 mm

Chainring Size (max.):

50-tooth

Capacity:

20-tooth

Difference Between Large & Middle Chainring:

11-tooth

Cable Routing:

down pull

Movement:

down-swing

Mount:

braze-on, clamp

Clamp Diameter:

31.8 mm w/adapter 28.6 mm, 34.9 mm

Compatibility:

HG-X chains, CN-HG500 chain

Technical Information:

Outer Body Material:

Aluminium

Inner Body Material:

Aluminium

Cage Material:

steel

Compatibility:

Shift/Brake Lever:

ST-4703

Shifter:

SL-4703

Crank:

FC-4703

Chain:

CN-M981, CN-M980, CN-HG95, CN-HG94, CN-HG75, CN-HG74, CN-HG54

Features:

• smooth and stable front gear shifting
• smooth-running
• more ergonomic operation
• less risk of the chain dropping
• finer L-trim and low-position
• special chain guide and chainring shape with HG-X chain
• support screw increases stability (braze-on version)
• painted parallelogram, chrome-plated cage plates

Models:

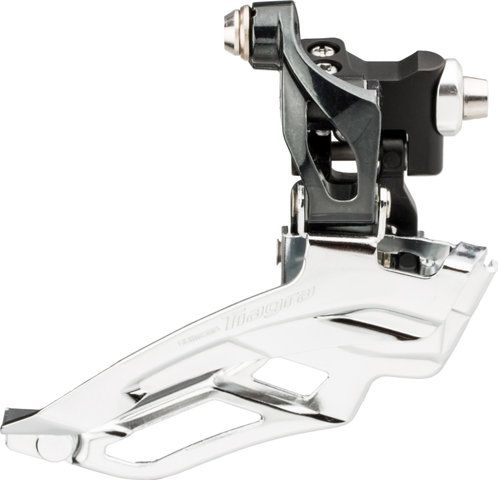

braze-on:

Mount:

braze-on

Type:

FD-4703-F

Manufacturer Number:

I-FD4703F

31.8 mm:

Mount:

Clamp (diameter 31.8 mm; 28.6 mm with adapter)

Type:

FD-4703-B

Manufacturer Number:

I-FD4703BSM

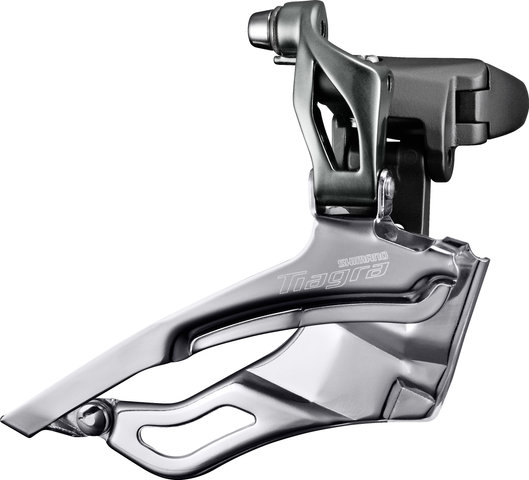

34.9 mm:

Mount:

Clamp (diameter 34.9 mm)

Type:

FD-4703-B

Manufacturer Number:

I-FD4703BL

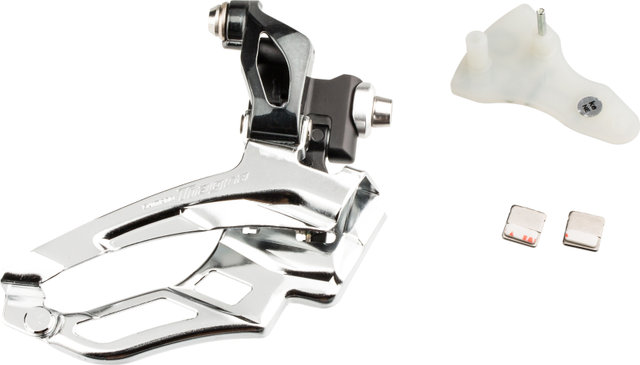

Contents:

• 1 x Shimano Tiagra FD-4703 front derailleur
• 1 x clamp adapter (31.8 mm version only)
• 1 x Shimano TL-FD68 cable setting tool
