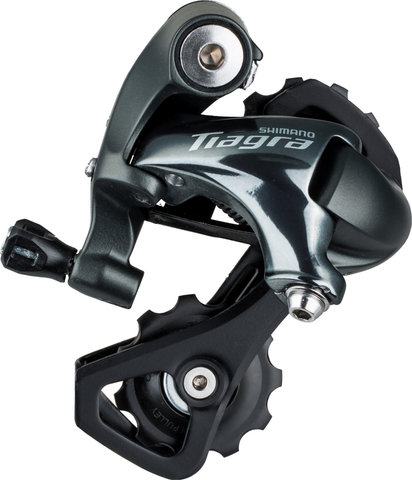

Shimano Tiagra RD-4700 10-speed Rear Derailleur

The Tiagra rear derailleur RD-4700 by Shimano - consistent, friction-free shifting performance

The Shimano Tiagra RD-4700 rear derailleur impresses with smooth and easy shifting processes as well as extended adjustment options. Compared to its predecessors, the spring mechanism and the tension grid have been improved once again. The short version is only compatible with 2x10-speed, the long version also with 3x10-speed drivetrains. The inner and outer cages of the rear derailleur are made of steel.

Specifications:

Series:

Tiagra 4700

Application:

Road, City

Gearing:

10-speed

Attachment:

standard

Capacity:

33 tooth (short), 41 tooth (long)

Compatibility:

Shimano Road 10-speed

Compatibility - Chains:

HG-X

Technical Information:

Derailleur Pulleys:

11-tooth

Outer Cage Material:

steel

Inner Cage Material:

steel

Other Materials:

aluminium, stainless steel, steel

Compatibility:

Shift/Brake Lever:

ST-4700, ST-4720, ST-4725, ST-RS405, ST-RX400

Shifter:

SL-4700

Cassette:

CS-6700, CS-5700, CS-HG500-10, CS-4600, CS-M980, CS-M771-10, CS-HG81-10, CS-HG62-10, CS-HG50-10

Chain:

CN-M981, CN-M980, CN-HG95, CN-HG94, CN-HG75, CN-HG74, CN-HG54

Features:

• smooth and easy shifting
• redesigned spring mechanism and optimised cable pull
• wider 10-speed " Rider Tuned" gradations
• precise and durable shifting capacity
• robust adjustability
• plated cage plates
• 2 pivot bushings, fluorine-coated

Models:

short:

Cage Length:

SS

Max. Largest Sprocket Teeth:

28-tooth

Min. Largest Sprocket Teeth:

25-tooth

Max. Smallest Sprocket Teeth:

14-tooth

Min. Smallest Sprocket Teeth:

11-tooth

Max. Chainring Difference:

16-tooth

Total Capacity:

33-tooth

Manufacturer Number:

I-RD4700SS

long:

Cage Length:

GS

Max. Largest Sprocket Teeth:

32 teeth (3x) or 34 teeth (2x)

Min. Largest Sprocket Teeth:

25 teeth (3x) or 28 teeth (2x)

Max. Smallest Sprocket Teeth:

12 teeth (3x and 2x)

Min. Smallest Sprocket Teeth:

14 teeth (3x) or 12 teeth (2x)

Max. Chainring Difference:

20 teeth (3x) or 16 teeth (2x)

Total Capacity:

41 teeth (3x and 2x)

Manufacturer Number:

I-RD4700GS

Contents:

• 1 x Shimano Tiagra RD-4700 rear derailleur
